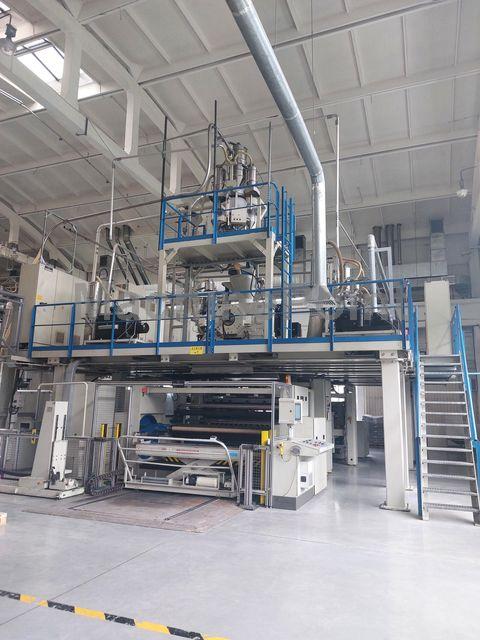

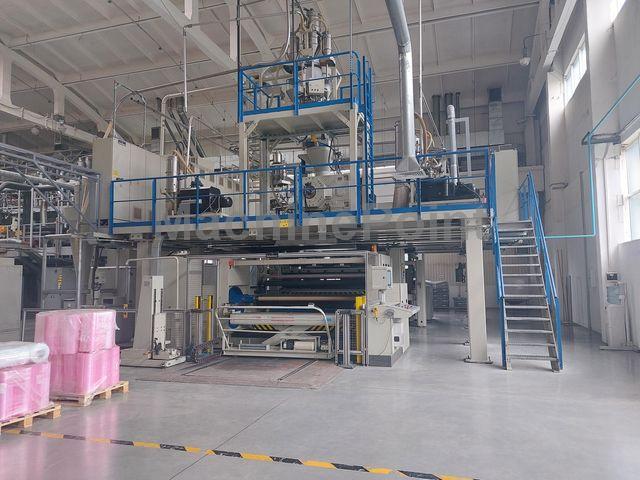

Data Sheet of Used REIFENHAUSER MIDEX
Ref. 300045735
Year: 2003
Brand: REIFENHAUSER
Model: MIDEX
Status: For sale
Delivery time: Immediate
Technical Specifications
Materials: LDPE, LLDPE, PP
Film Width (Max): 2500 mm
Output Capacity: 1200 kg/h
Number Of Extruders: 3
Other Specifications:
Finished Products: Stretch film, PP film (12 – 60 mkm)
Number of layers: 3
Speed: 50-400 m/min
Automatic die, width 2900 mm
Output: up to 1200 kg/h, depending on material

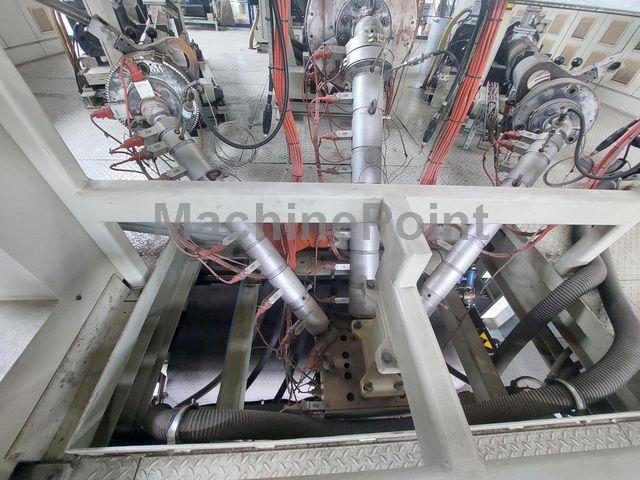

Cast line die: flat die type
Lip gaps adjustable: 400-800 microns
Heating: ≤ 600 kW

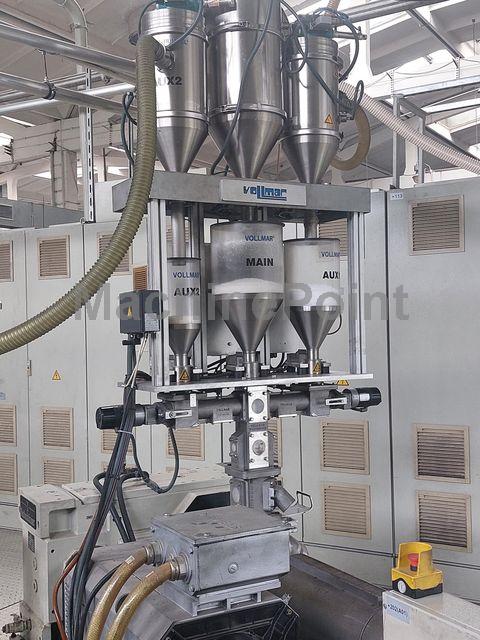

Dosing System: 3 components for each extruder

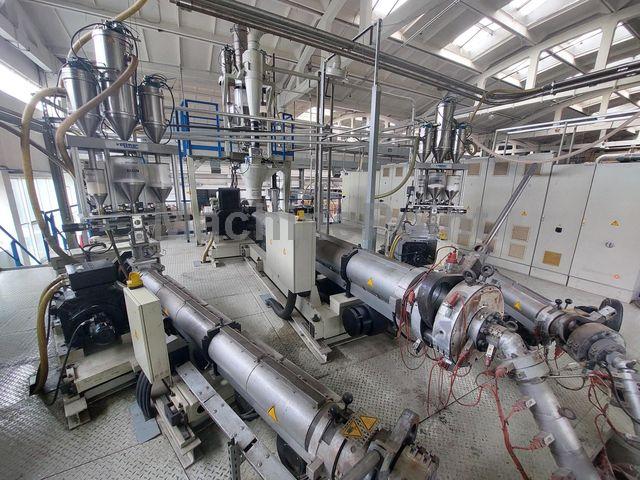

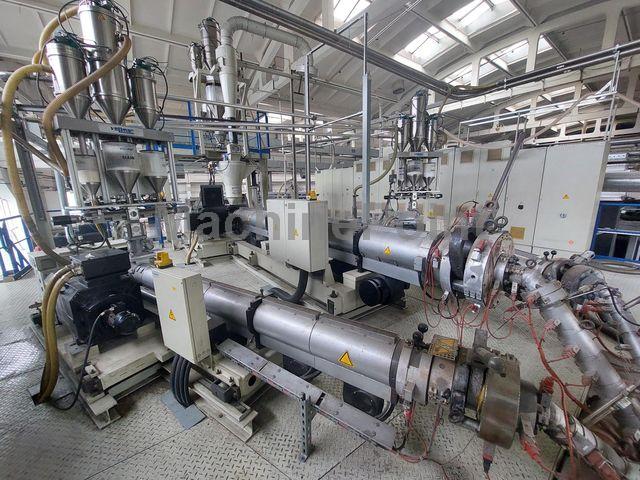

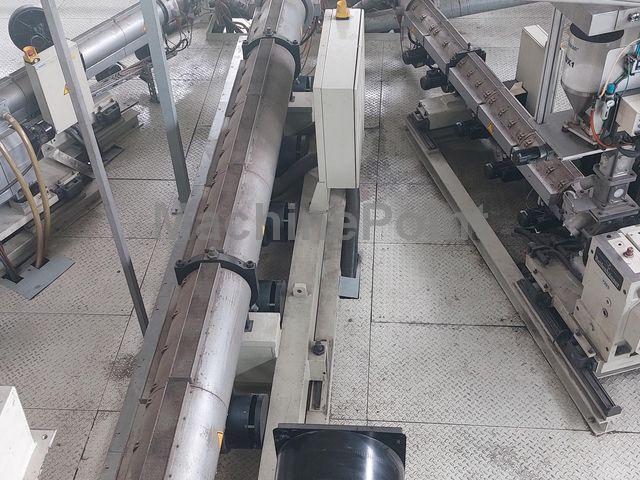

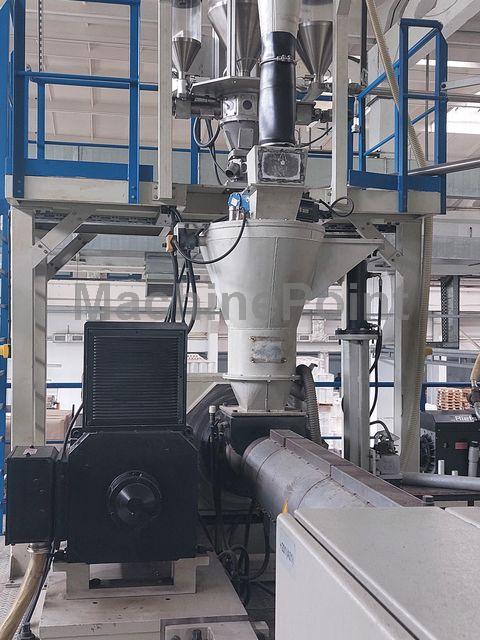

Extruder 1: layer ref. A, diameter: 180 mm, L/D=30
Extruder 2: layer ref. B, diameter: 100 mm, L/D=30
Extruder 3: layer ref. C, diameter: 100 mm, L/D=30

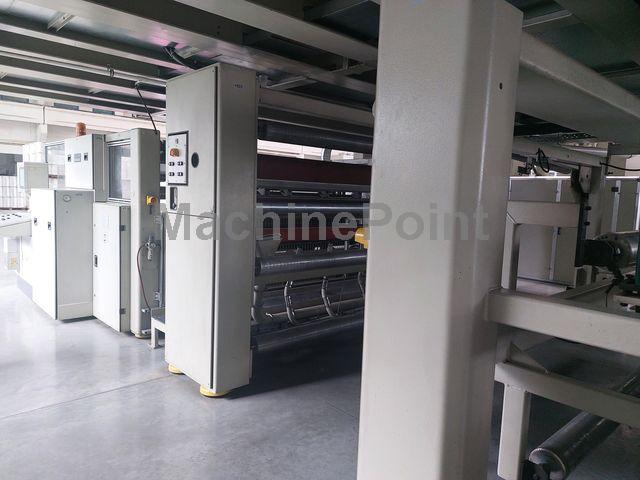

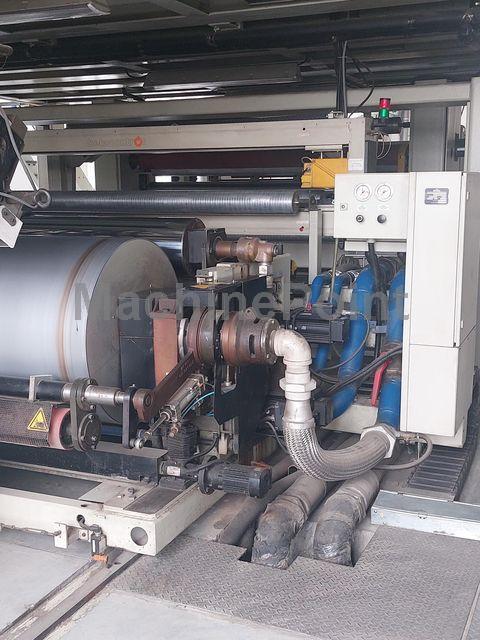

Chill roll unit: width 3000mm. First chill roll diameter: 800mm, second chill roll diameter: 290 mm
The thickness control system is automatic and Beta-ray type but the radioactive source was removed.

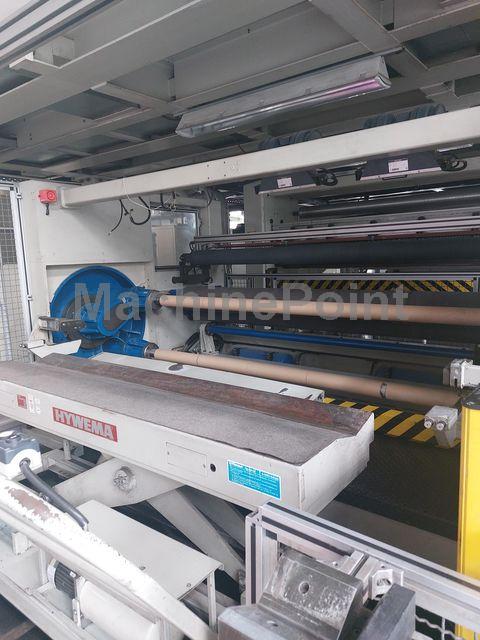

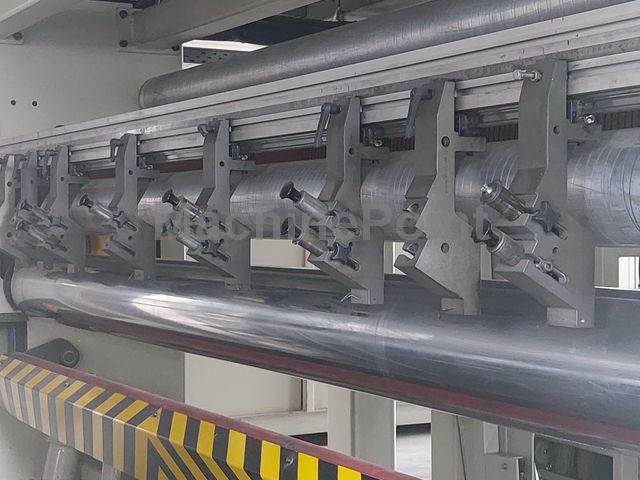

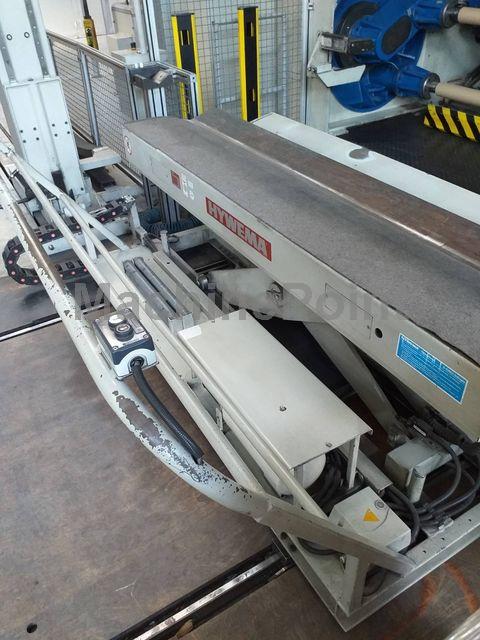

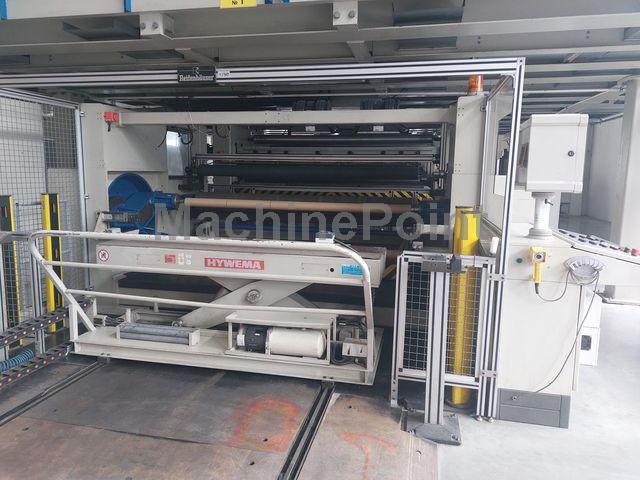

Rewinder for Jumbo reels and machine reels. Automatic reel change, reels extraction and new core position system.
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown with material
Availability: Immediate
