Used THERMOWARE THW 3510 - THW 3516 - THW 3508 of 2002 for sale

Technical Specifications:

• Products Type: Cup

Other Specifications:

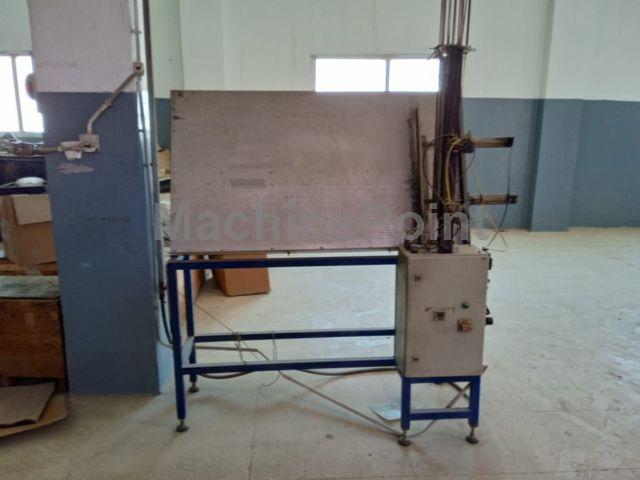

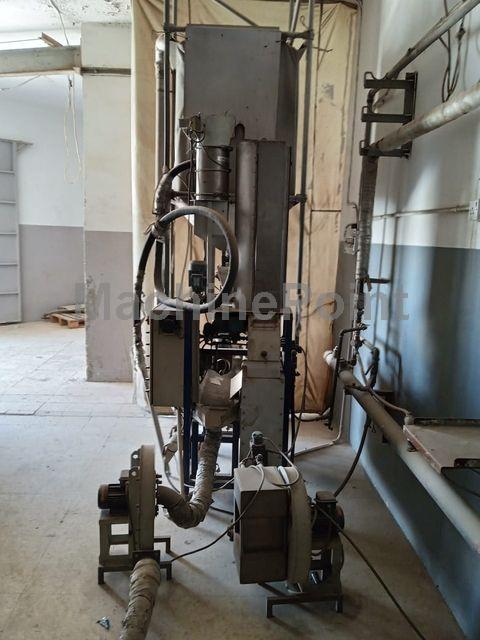

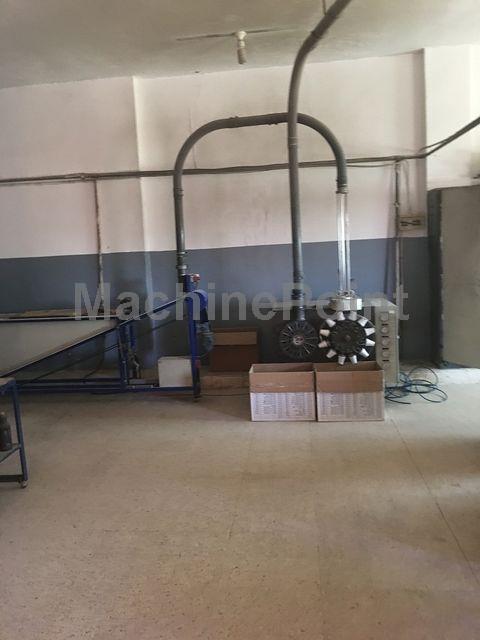

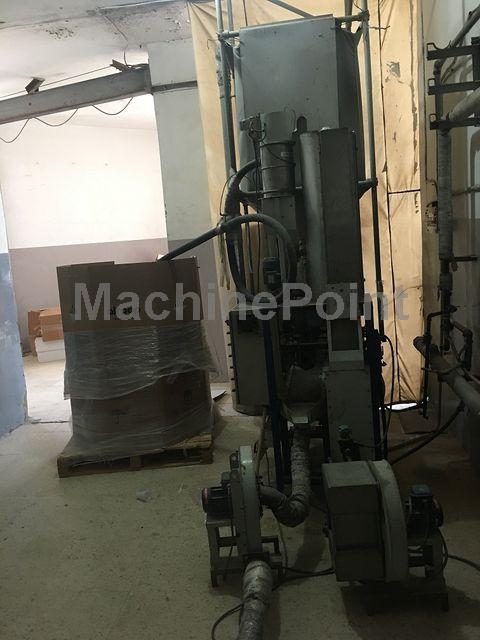

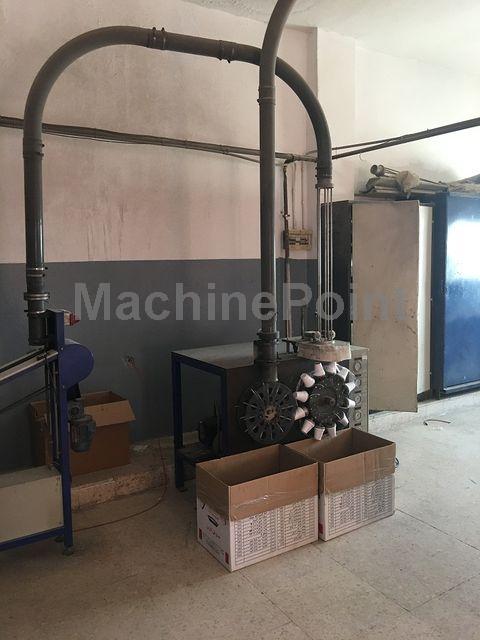

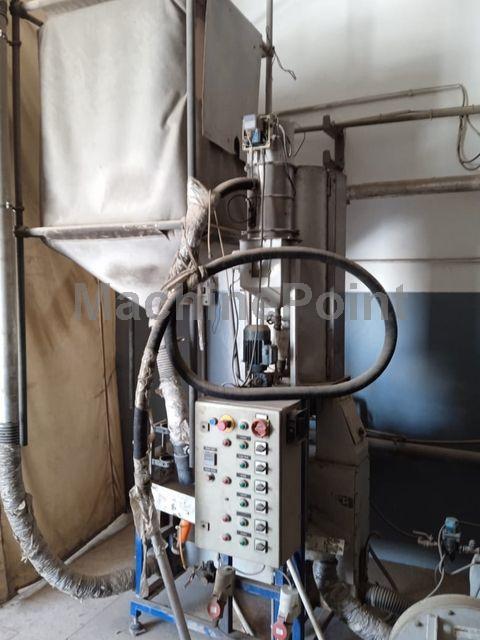

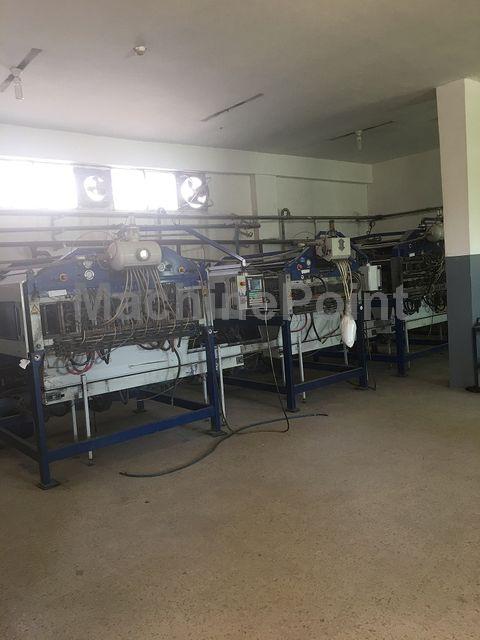

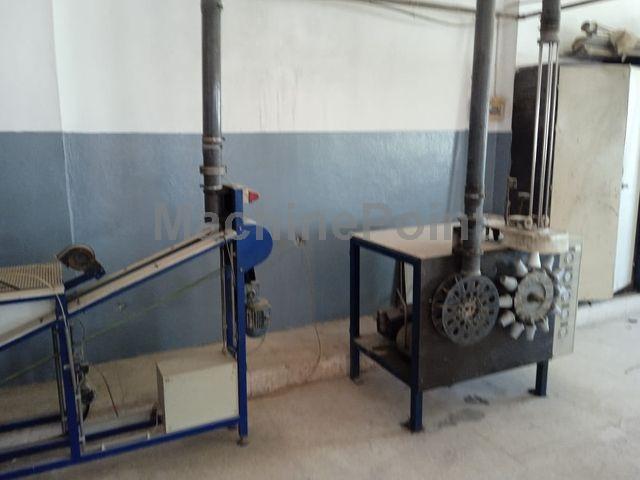

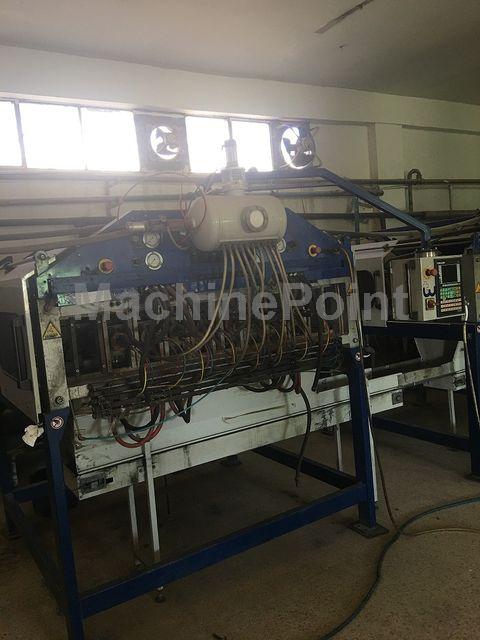

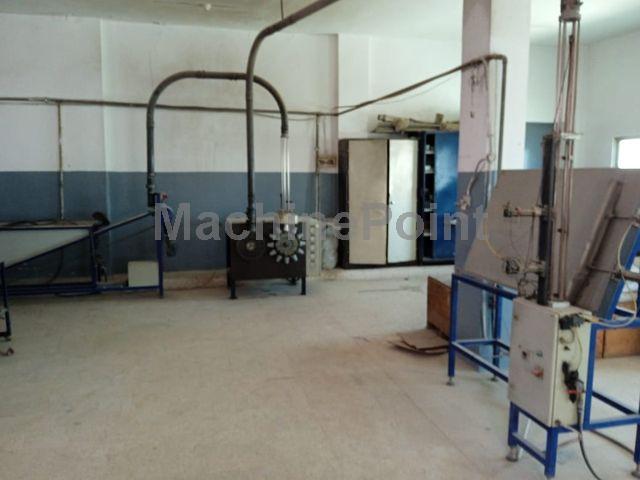

Pack of 3 EPS cups machines including testing & counting machine & pre-expander VA40 (year 1999)

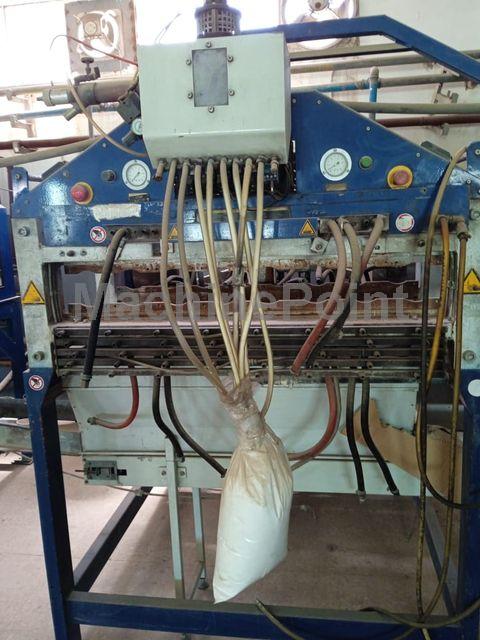

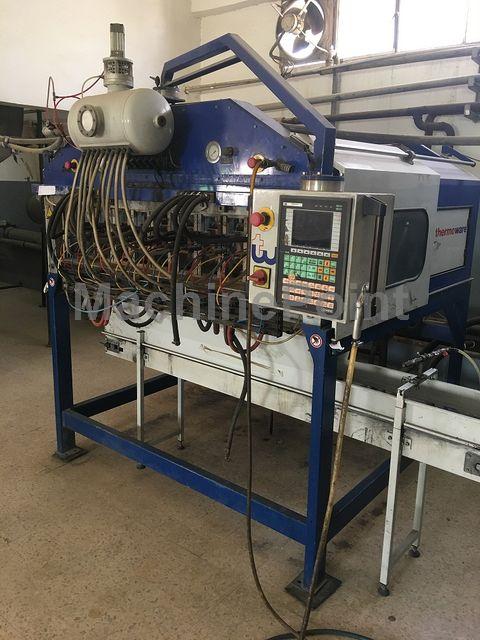

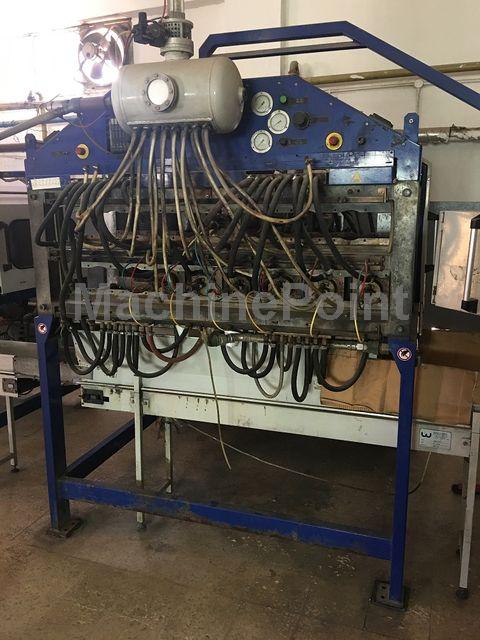

1/EPS cups machine THW 3510 YEAR 2002

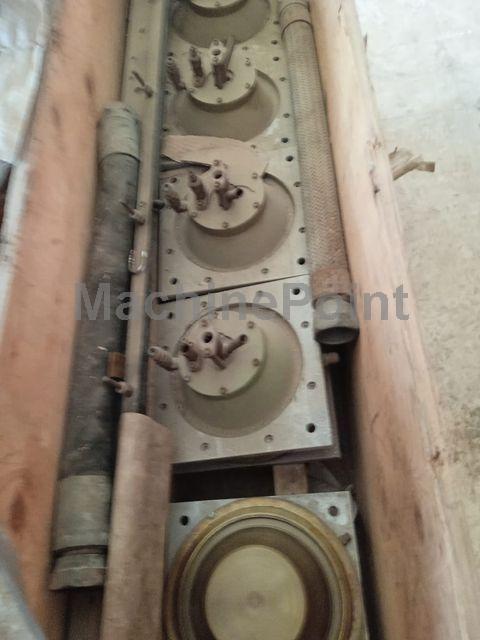

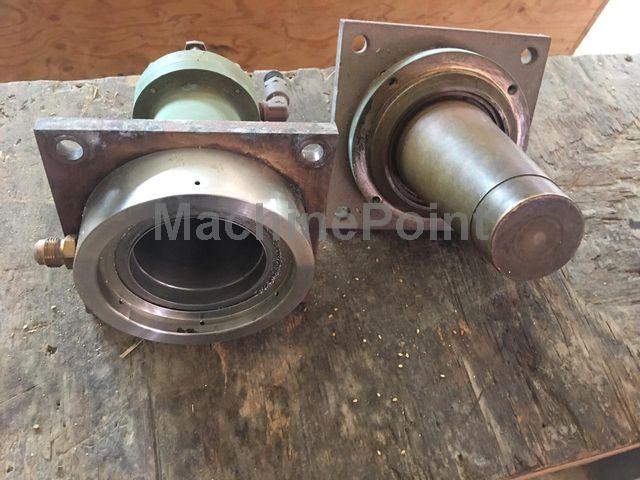

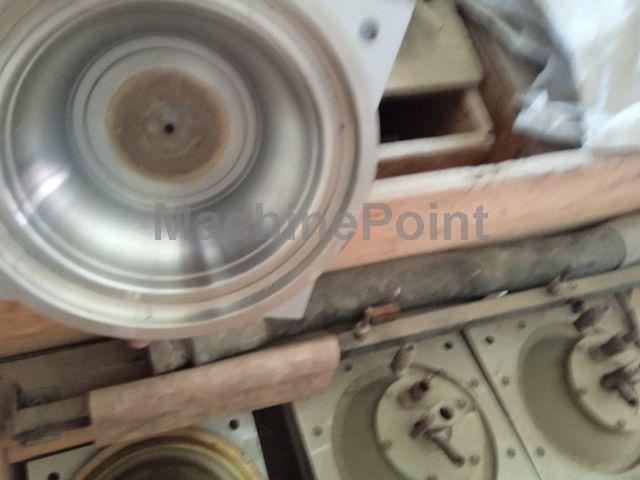

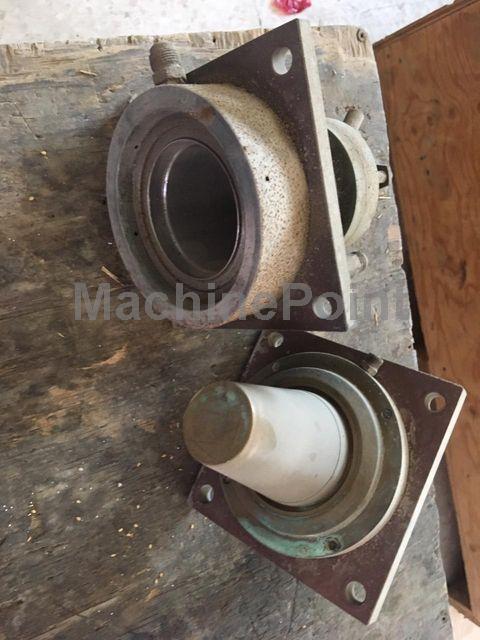

Max number of moulds : 10
Drawing : Illustration 2-2
Weight : 1900kg
Dimensions Lxlxh : 2070x1780x2200

Steam :
Pressure bar : min 7
Consumption kg/h : 300-350
Connection : 1.5"

Cooling water :
Pressure bar : min 4-4.5
Temperature : 35-40C
Consumption : 2-2.5 m3/h
Connection : 1.5"

Air :
Connection : 1"
Pressure bar : min 7
Consumption m3/min : 0.8-1.0
Consumption take-out unit (m3/min) : 0.3

Electricity :
Supply : 220 VAC 1ph+N+FG
Rated power : 0.3kW
400V/50Hz


2/EPS cups machine THW 3516 YEAR 2005
Max number of moulds : 16
Drawing : Illustration 2-1
Weight : 1950kg
Dimensions Lxlxh : 2070x1780x2450

Steam :
Pressure bar : min 7
Consumption kg/h : 400-450
Connection : 1.5"

Cooling water :
Pressure bar : min 4-4.5
Temperature : 35-40C
Consumption : 3-3.5 m3/h
Connection : 1.5"

Air :
Connection : 1"
Pressure bar : min 7
Consumption m3/min : 1-1.5
Consumption take-out unit (m3/min) : 0.3

Electricity :
Supply : 110-230 VAC 1ph+N+FG
Rated power : 0.3kW
400V/50Hz


3/EPS cups machine THW 3508 YEAR 1999
Max number of moulds : 8
Drawing : Illustration 2-1
Weight : 1750kg
Dimensions Lxlxh : 2070x1480x2200

Steam :
Pressure bar : min 7
Consumption kg/h : 300-350
Connection : 1.5" adaptor 1"

Cooling water :
Pressure bar : min 4-4.5
Temperature : 35-40C
Consumption : 2-2.5 m3/h
Connection : 1"

Air :
Connection : 1"
Pressure bar : min 7
Consumption m3/min : 0.8-1.0
Consumption take-out unit (m3/min) : 0.3

Electricity :
Supply : 220 VAC 1ph+N+FG
Rated power : 0.3kW
400V/50Hz

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
