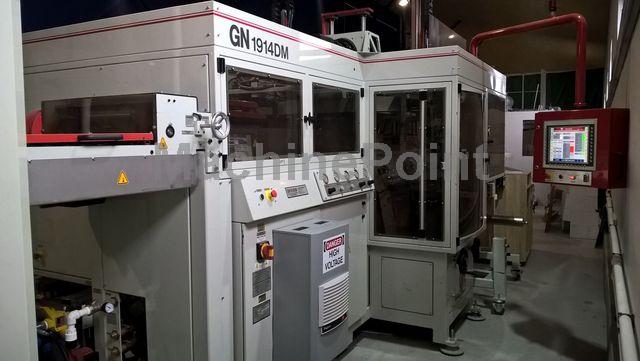

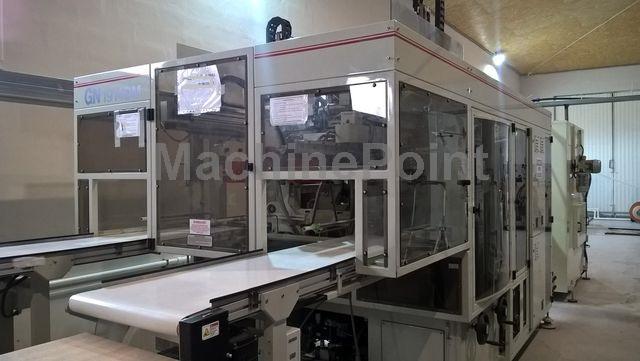

Used GN 1914 DM of 2017 for sale

Thermoforming machines GN, We provide a quality service in the buying and selling of used machinery, with all the services necessary to achieve a successful transaction.

Data Sheet of Used GN 1914 DM

Ref. : 300038069

Year: 2017

Brand: GN

Status: For sale

Delivery time: From date







Technical Specifications:

Material :PP BOPS, OPS, GPPS, PS, HIPS, PVC, PET

Forming Area (Vxh): 482x355

Depth Of Draw: 152 mm

Material Thickness (Min): 0.25 mm

Material Thickness (Max): 1.5 mm

Products Type:Container

Feeding Systems:Roll fed

Other Specifications:

Maximum knife length: 5000 mm
Maximum sheet width: 533 mm
Maximum material roll diameter: 1000 mm
Thermoplastic materials processed on the machine: PP, BOPS, OPS, GPPS, PS, HIPS, PVC, PET
Maximum dry cycles (without material) per minute: 50

Main features:
• High Speed, Plug-Assisted, Dual Mould Pressureformer
• Dualrobotic pick and place stacking systems
• Edge heating station
•All functions PLC controlled
• Water cooled chain rails
• Servo driven chain rails

Scope of supply:
- Roll holder with pneumatic lift (rolls up to 1000mm diameter)
-GN PH25 preheater
- Additional zoning of sheet heating control (19 zones upper and 15 zones lower heater)
- Heat blanking plate
- Servo plug movement
- Anti-static bars
- Under machine scrap winder (pneumatic)
- Air conditioning for electrical cabinet

Availablity September 2018

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: From date
