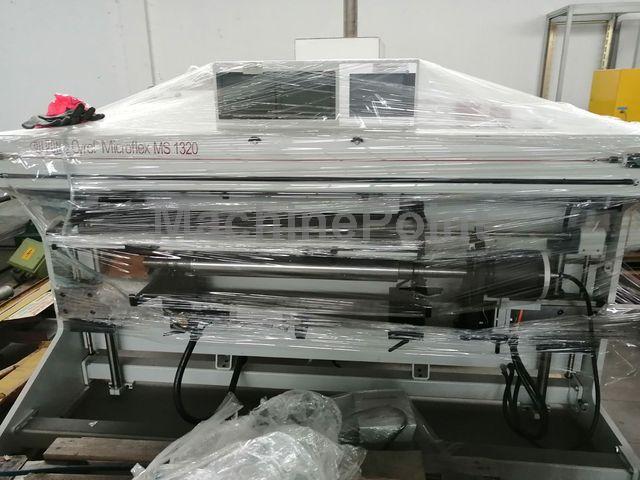

Used CYREL Microflex MS 1320 of 2014 for sale

- plate format - 900 x 1200mm - thickness of the plate - we worked on plates 1.14 mm, max 2.84mm - working speed - adjustable to the type of plate in the settings (must be selected during the tests) - dimensions - LxWxH - 1750mm x 1570mm x 1020 mm - net weight - 871kg - supply - 208 - 240V, one phase with earthing, min. 3x6mm2 cable, 32A current - compressed air - without water, pressure 6.9 bar, minimum 122 l/min, 1/2" connection - air outlet - 5" pipe - cylinder cooler included All documentation and spare a brake included.

Maximum plate width 1,320 mm Repeat length 280 – 1,016 mm The Cyrel® Microflex 1320 is highly productive and extremely precise, for mounting of plates onto cylinders or sleeves with a high repeatability. Two digital, motor controlled cameras indicate plate positions with each having an enlargement factor of 40X. No PC expertise is required to operate the unit, and it is safe and easy to use. Fast Mount Button and software controlled tail stock for semi-automatic sleeve change are included in the standard machine.

System for mounting of printing plates DU PONT CYREL MICROFLEX Mounting system roller – diam 70,144 Year of manufacture – 1999 Width 800 ìì, equipped with follers for widths till 1000 mm Equipment: 1. Camera - 2 pc 2. Monitors – 2 pc 3. Air cylinders (adapters) for widths till 800 mm 1.R 350 – diam 105,158 2.R 430 – diam 130,623 3.R 350 – diam 162,454 4. Air cylinders (adapters) for widths till 1000 mm 1.R 300 – diam 86.06 1.R 430 – diam 121.074 1.R 530 – diam 152.905 1.R 640 – diam 184.736
