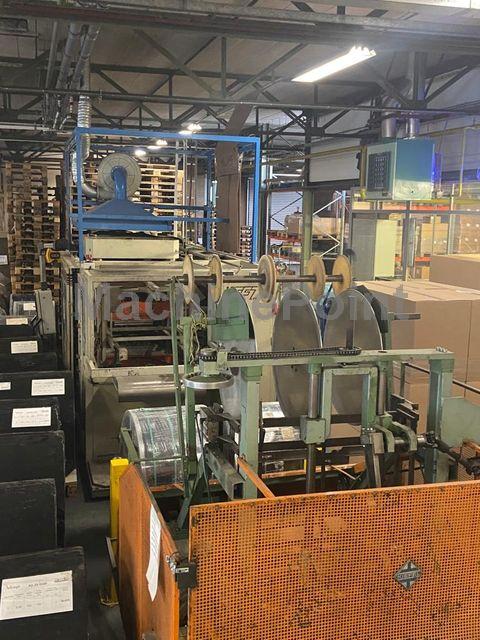

Used TFT FCS 720 of 1996 for sale

Thermoformer TFT, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.


Data Sheet of Used TFT FCS 720

Ref. : 300042952

Year: 1996

Brand: TFT

Status: For sale



Technical Specifications:

Material : HIPS, PS

Forming Area (Vxh): 720x430

Depth Of Draw: 120 mm

Material Thickness (Max): 3 mm

Number Of Stations: 3

Products Type:Container

Feeding Systems:Roll fed

Other Specifications:

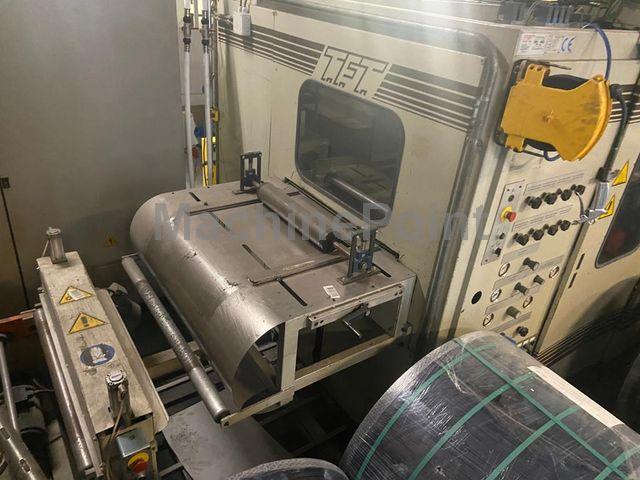

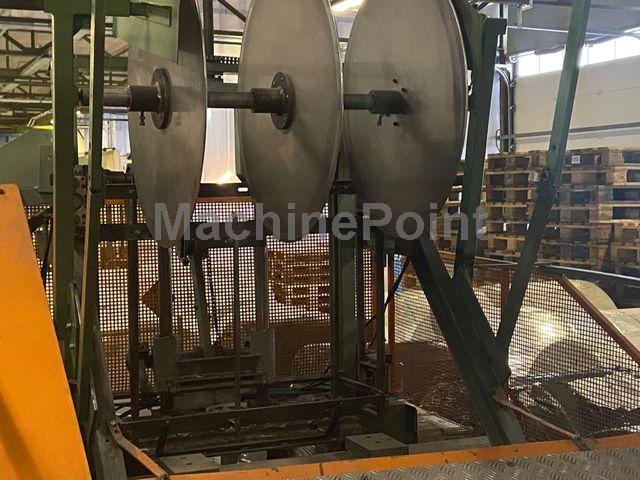

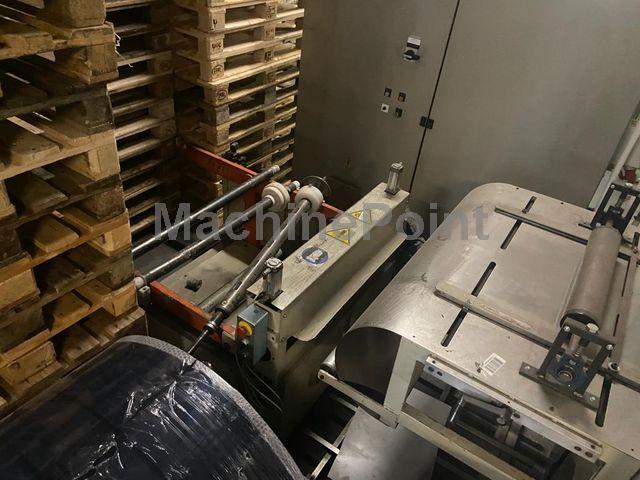

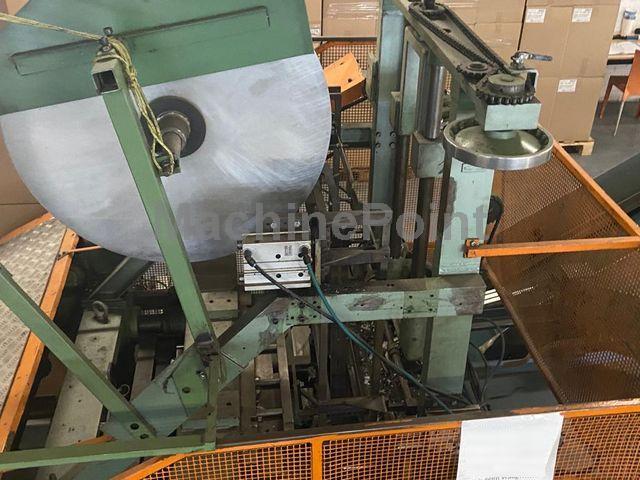

Unwinder:

motor power : 0.75kW
Tilting power : 1.1kW
Width max center line : 1200mm
Weight roll max : 1000kg

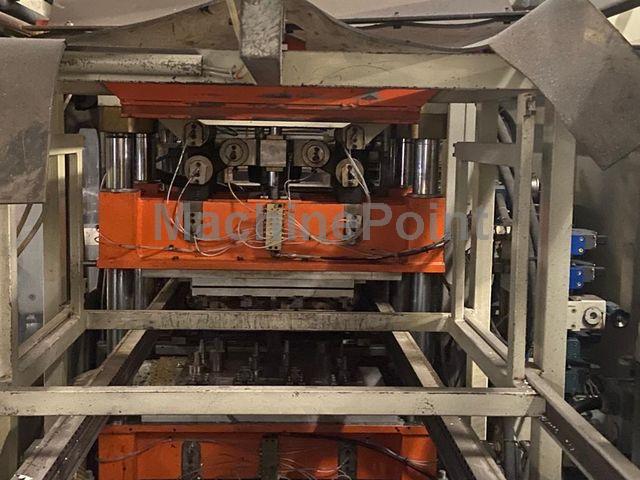

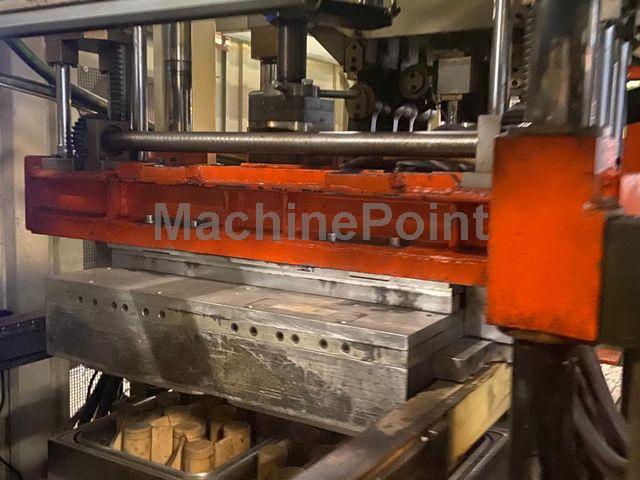

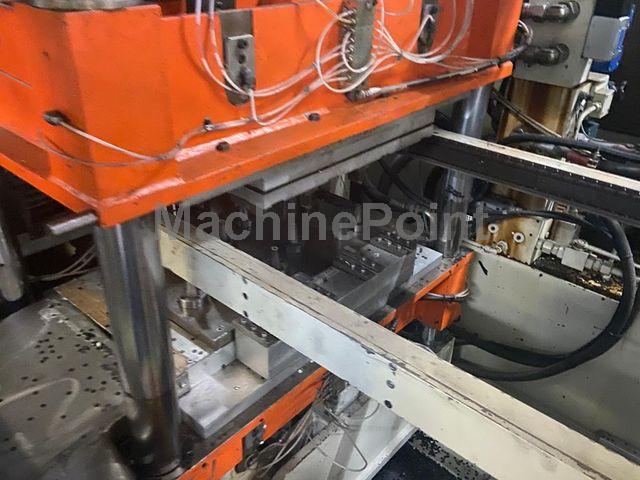

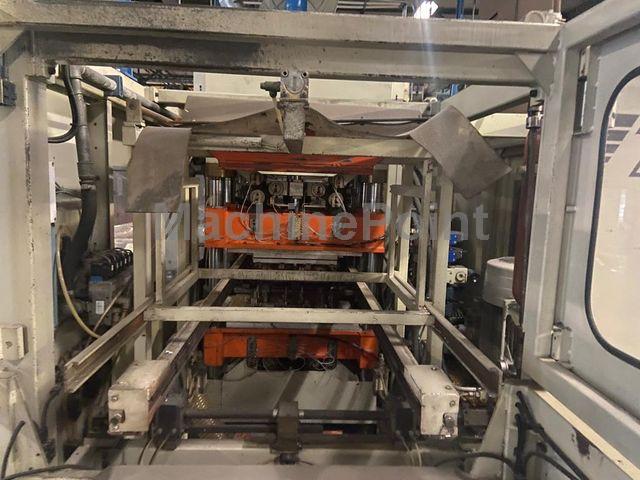

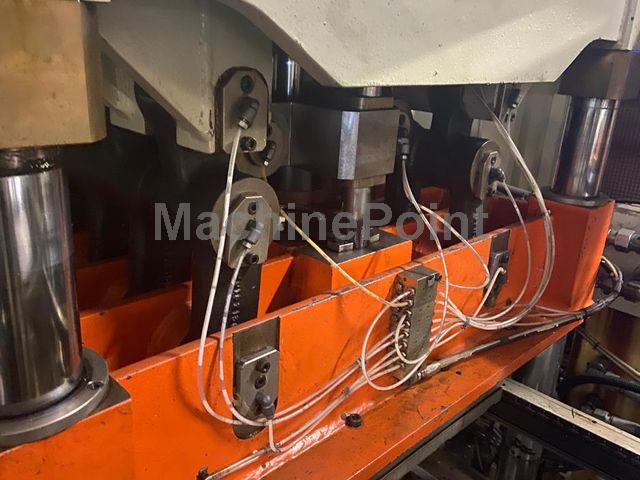

Forming station :

Mold max dimension : 720x430
Depth max : 120mm
Width foil : 150+740
Max thickness HIPS : 1.5mm
Max thickness PS : 3mm
Max stroke under and upper plates : 140mm
Pressing force per plate : 16500kg
Power upper heater : 36.8kW
Power lower heater : 31.2kW

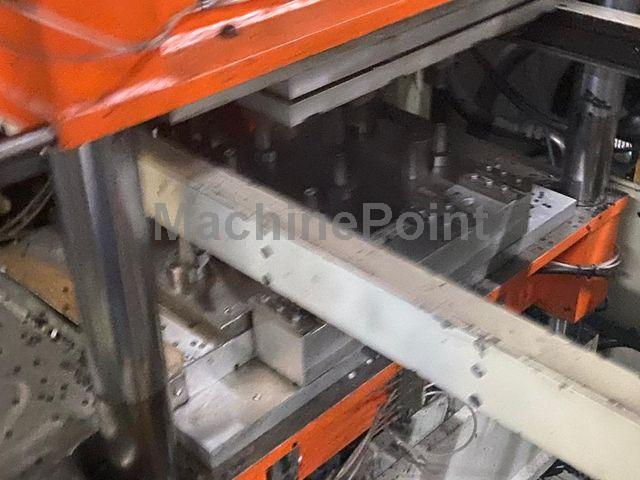

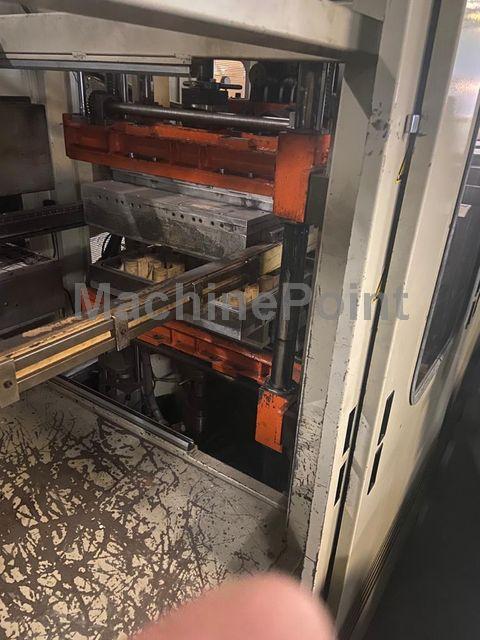

Cutting station:

Dimensions : 700x430
Depth : 120mm
Pressing force per plate : 50.000Kg on 1mm
Max stroke under and upper plates : 150mm
Power heater : 7.8kW

Stacking station:

dimensions stacking : 700x500mm

Rewinder outgoing material:
Max center line : 600mm

Other Details:

Guarantee: Without guarantee

Current condition: Dismantled. Can't be seen in running condition
