Used Palletizing machine: MAS HP2 of 2005


Search used machines

Similar Products:

Palletizing machine - MAS - HP2

Data Sheet of Used MAS HP2

Ref.: 300043052

Brand: MAS

Year: 2005


    Other Specifications:

    Palletizer for UHT milk cartons, fully automatic

    BRAND: M.A.S
    TYPE: HP2

    Year: 2005

    capacity 600 cartons/tray to 1.800 cartons/trays per hour

    In the past this offered machine has palletize
    milk cartons/trays with 2x5 single packaging
    for 1,0 and 0,5 ltr cartons with 2 palletizing places.


    Capacity overview and some details
    of the whole plant:
    Euro Palette: 1.200 x 800 x 144 mm
    or ½ Palette: 600 x 800 x 144 mm
    weight: 700 kg
    Palette transport high ca. 300 mm to 500 mm
    Pallet high with palette 1.150 mm to 1.600 mm
    Tray size: L: 370/375, B: 147/150, H: 235/240 mm
    capacity for two pallet places:
    20 Palettes per hour
    12.000 litre per hour = 1.200 Trays/hour =
    80 layer per hour
    5 Layers per palette
    Accomplishment:
    stable welded frame 100 % out of
    stainless steal
    compact construction

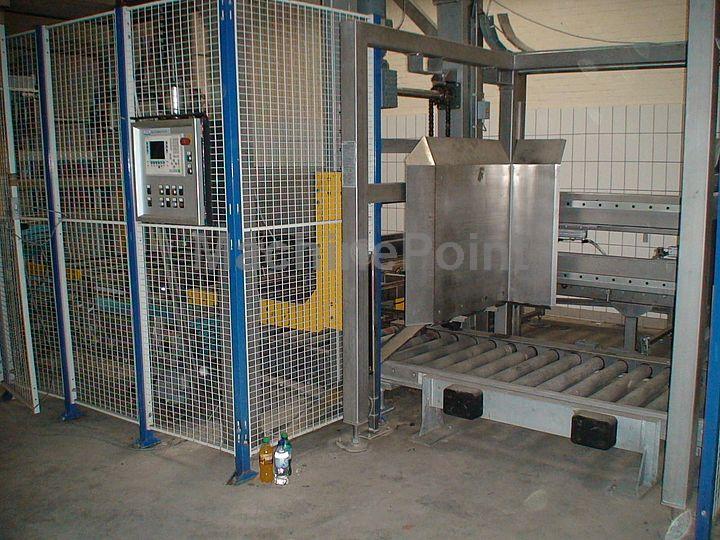

    with empty palette magazine
    with complete cover grids

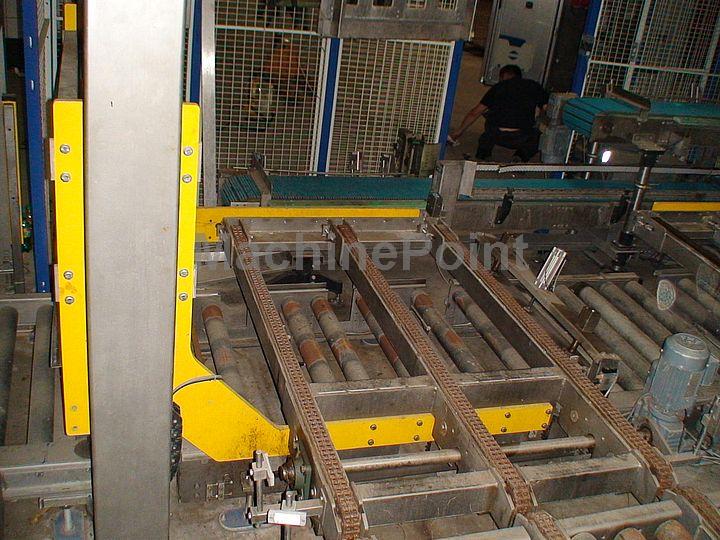

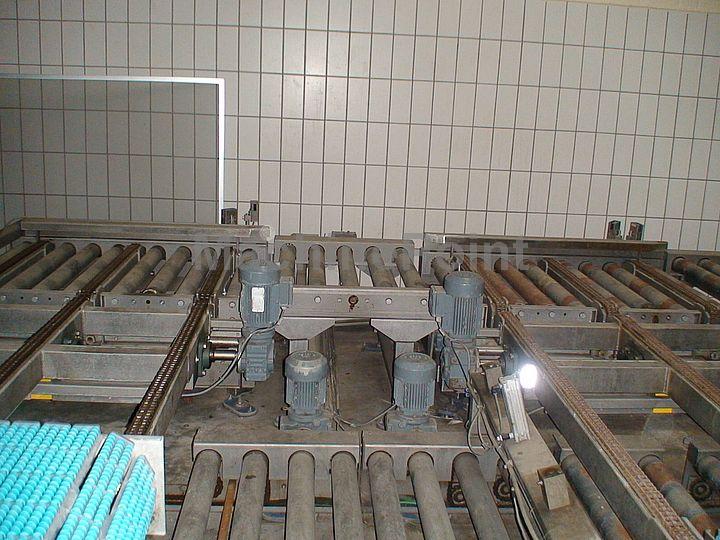

    with palette roller conveyor

    Equipment

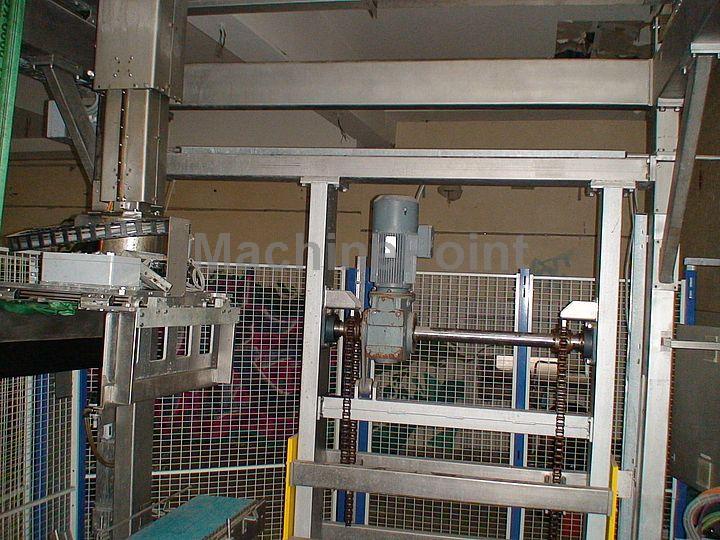

    main impulsion with Step gear
    motors are servo steered
    automatic control with Siemens S 7
    control panel Siemens OP 17
    sensors from IFM
    pneumatic from Festo
    motors from SEW

    Length x width of the machine: 7,83 m x 4,85 m,

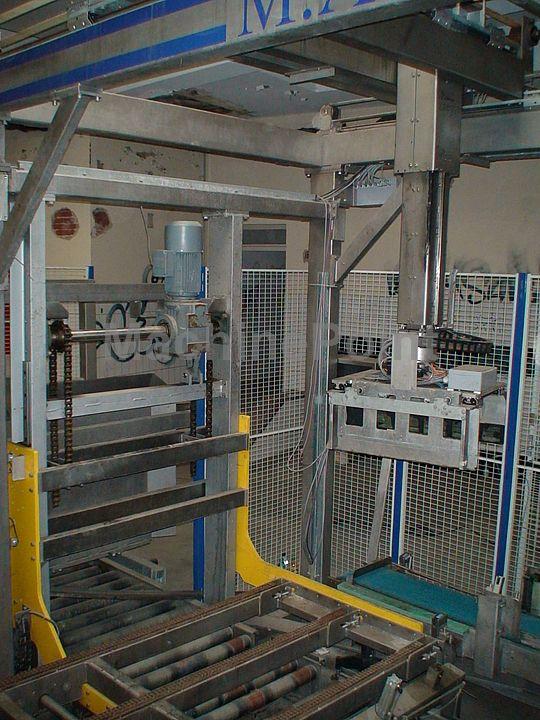

    High of the both gripper poles: 4,90 m

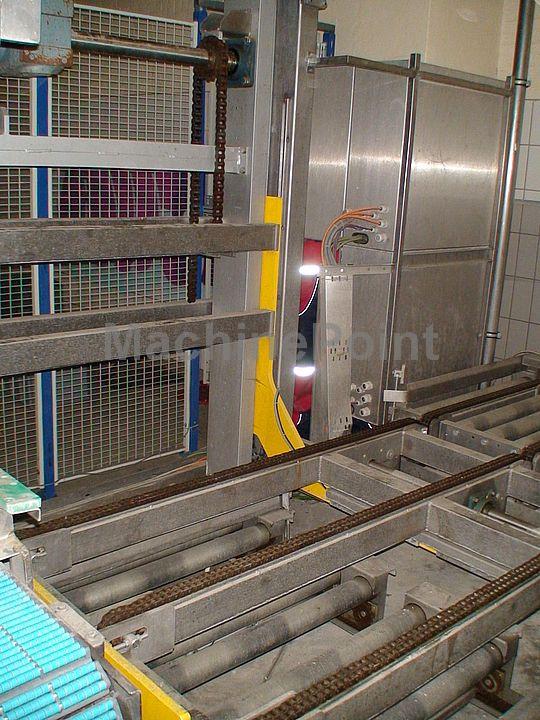

    Electronic cabinet of the palletizer machine:
    (LxBxH) 1,20 x 0,35 x 2,22 m with frame)

    Siemens S 7 automatic system.
