Technical Specifications:
Clamping Force: 100 ton
INJECTION UNIT 1: Shot Weight (Max): 24.4 g
Screw Diameter: 18 mm
Screw L/D Ratio: 21
Injection Volume: 25.4 cm³
Plasticising Capacity: 5 g/s

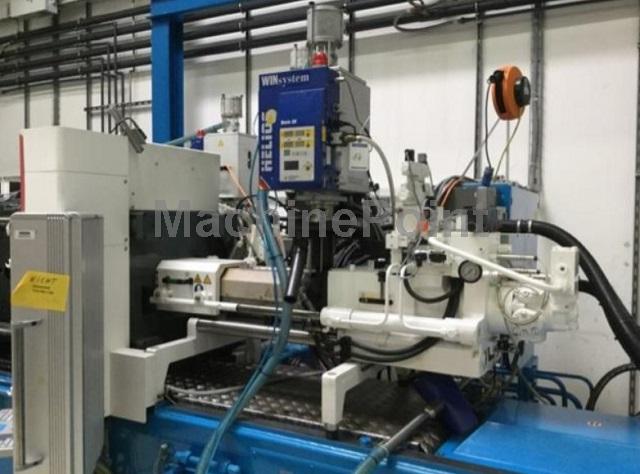

INJECTION UNIT 2: Shot Weight (Max): 30.1 g
Screw Diameter: 20 mm
Screw L/D Ratio: 18,9
Injection Volume: 31.4 cm³
Plasticising Capacity: 6 g/s
Distance Between Tie-Bars (H): 460 mm
Distance Between Tie-Bars (V): 460 mm
Mould Height (Max): 750 mm
Mould Height (Min): 250 mm
Opening Stroke (Max): 400 mm
Other Specifications:

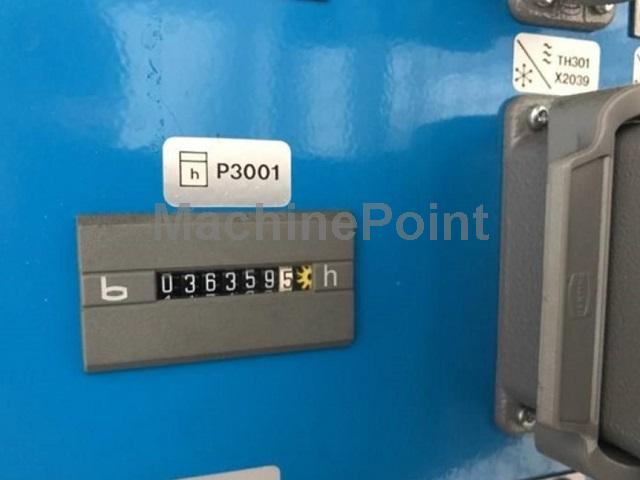

-Working hours: 36359

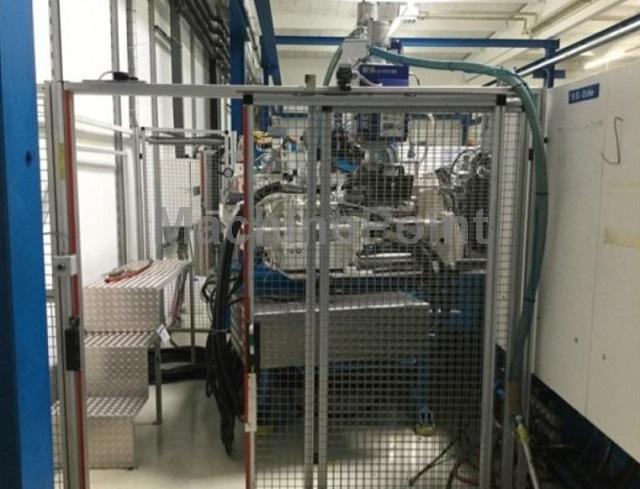

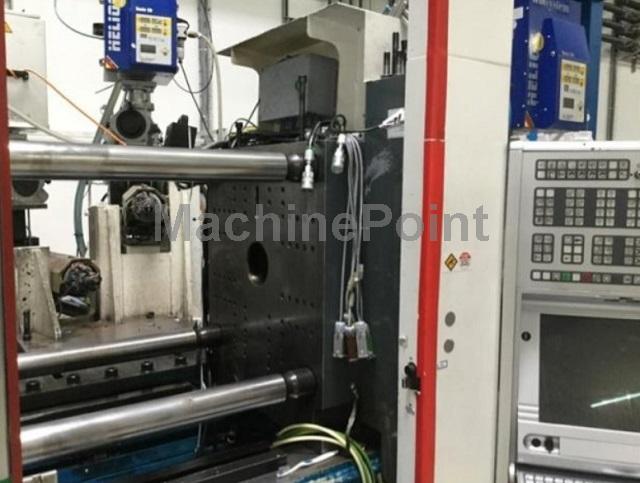

Machine complete with second and third injection unit, thermoregulators and protection
Hot chambers: 16
Pneumatic radial: 8

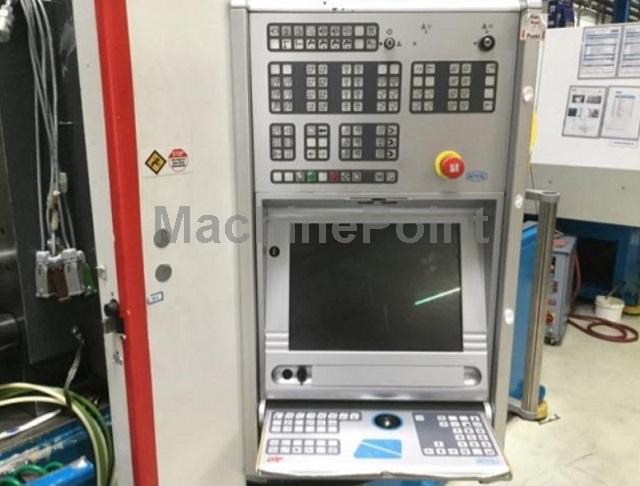

Control: DSP4
Dry cycle: 1sec
Min/Max mould thickness:
450-750
Robot connection Euromap-12:
Yes
Core pull:
3
Air ejection:
2
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
