Technical Specifications:
Clamping Force: 350 ton
Shot Weight (Max): 643 g
Distance Between Tie-Bars (H): 630 mm
Distance Between Tie-Bars (V): 630 mm
Platen Size (H): 960 mm
Platen Size (V): 960 mm
Screw Diameter: 60 mm
Mould Thickness (Max): 650 mm
Mould Thickness (Min): 250 mm
Daylight Between Platens (Max): 1260 mm
Opening Stroke (Max): 610 mm
Ejector Force: 13.9701121177976 ton
Ejector Stroke: 180 mm
Dry Cycle (S): 2.4 s
Screw L/D Ratio: 22
Screw Speed: 300 rpm
Injection Volume: 636 cm³
Heating Zones: 5
Heating Capacity: 25 kW
Oil Tank Capacity: 650 l
Other Specifications:
TWO MACHINES AVAILABLE (PRICE per machine)

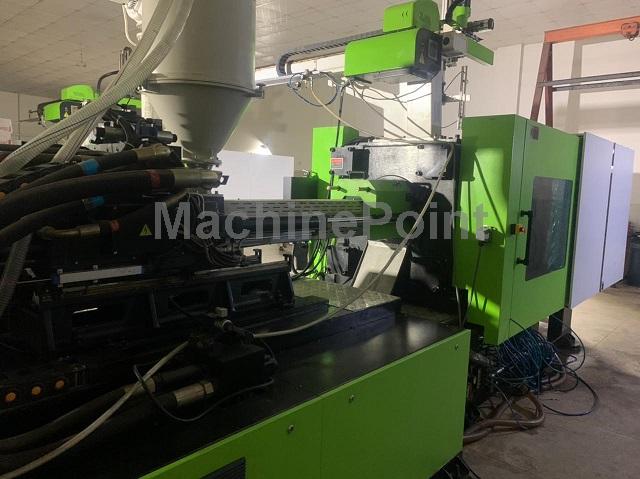

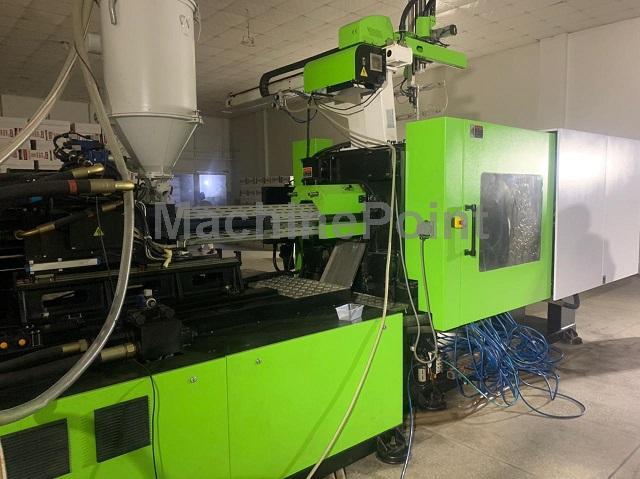

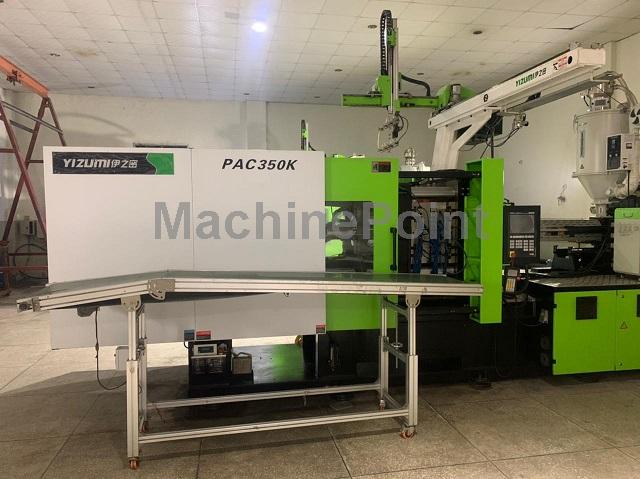

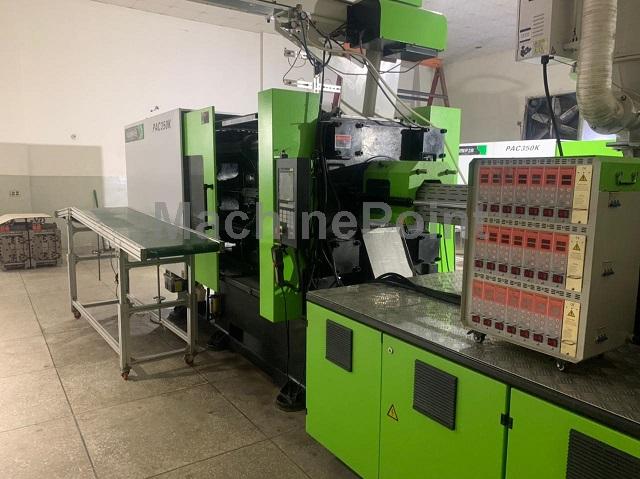

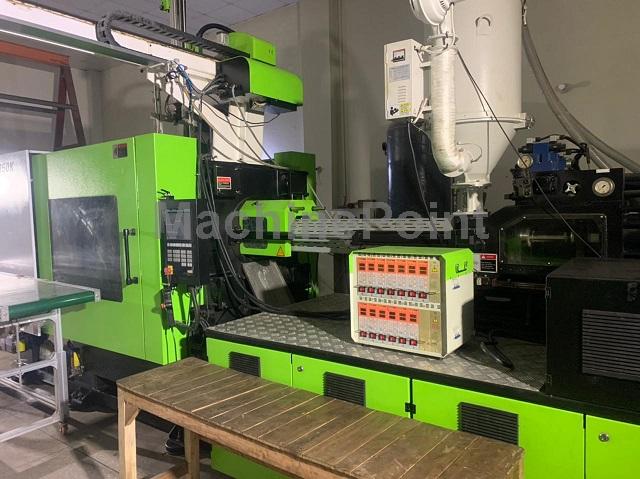

High speed Thin-wall Injection Molding Machine
Brand : Yizumi
Model : PAC-350K

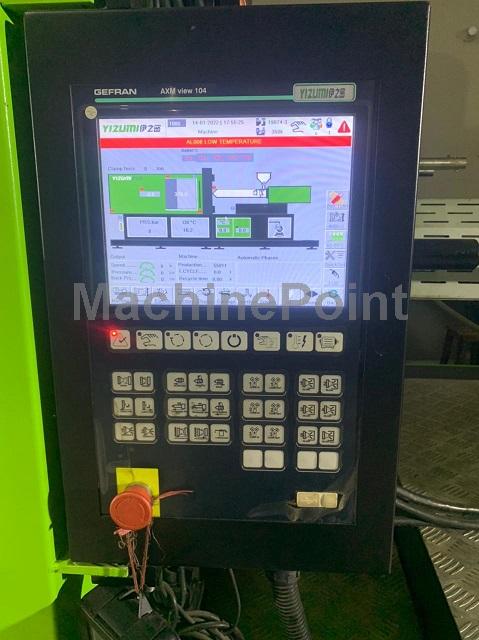

Italian "Gefran" controller(10.4 touch screen) with English language
High Performance Servo pump system
Water manifold 13 in 13 out with faster connector
Double carriage injection cylinder
Air Blow device
Single cylinder injection unit
Linear guiding rail under injection rail
Nozzle purge guard
Tap-Hole platen
Oil temperature display and alarm
By-pass filter
EM 12 Robot interface

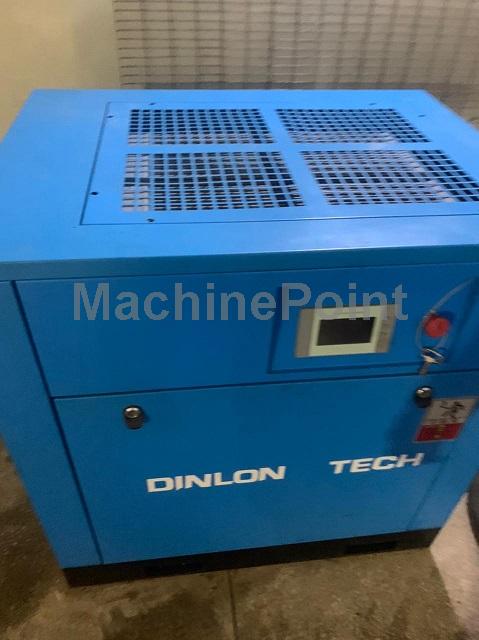

-Screw Air Compressor, year 08/2020; power: 10Mpa

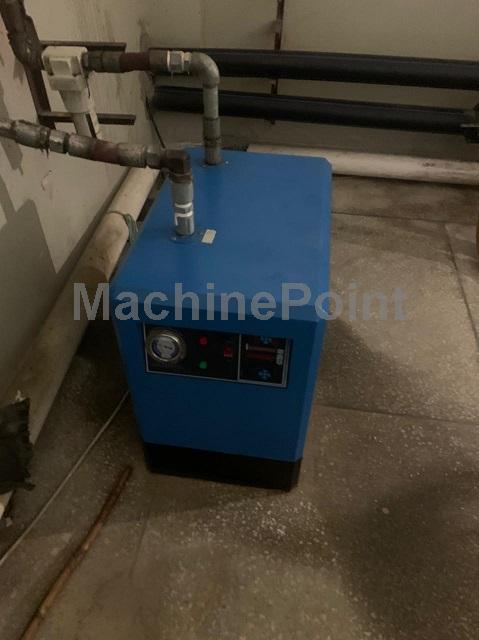

-Dryer; year 03/2020

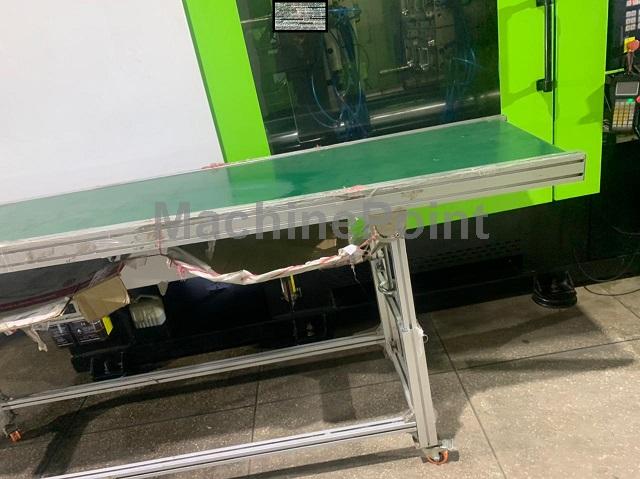

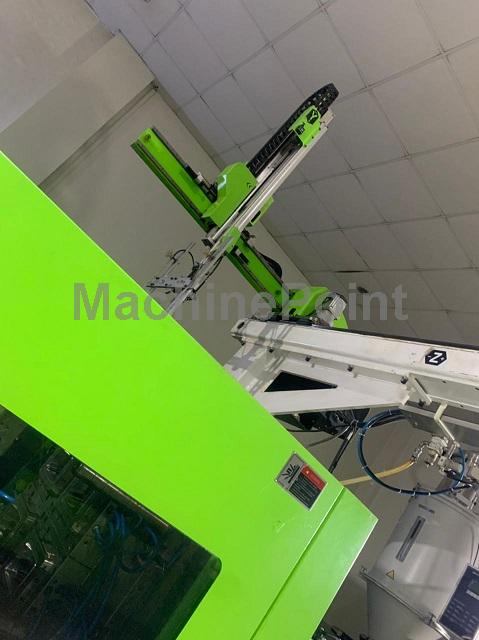

-High speed robot with conveyor belts
Brand: Yizumi
Year: 2011
Model: YR3310DSG
Molds (Price on request)
1000ml 4-Cavity
750ml 4-Cavity
500ml 4-Cavity
Common Lid 8-Cavity
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 50 Hz
Voltage: 110 Kw
Clasification:
Final Products: Thin wall containers
