Technical Specifications:
Clamping Force: 2000 ton
Shot Weight (Max): 6947 g
Distance Between Tie-Bars (H): 1800 mm
Distance Between Tie-Bars (V): 1500 mm
Platen Size (H): 2580 mm
Platen Size (V): 2270 mm
Screw Diameter: 120 mm
Mould Height (Max): 1700 mm
Mould Height (Min): 1000 mm
Daylight Between Platens (Max): 3600 mm
Opening Stroke (Max): 2600 mm
Ejector Force: 35.6900674542275 ton
Ejector Stroke: 415 mm
Core Pulls:Yes
Number Of Core Pulls: 4
Screw L/D Ratio: 23
Screw Speed: 113 rpm
Injection Volume: 7634 cm³
Injection Pressure: 2258 bar
Injection Rate: 1019 cm³/s
Heating Zones: 7
Other Specifications:

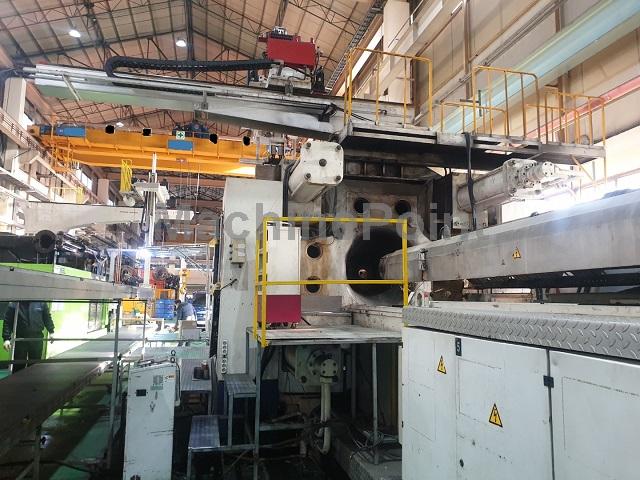

-With robot & hydraulic auto mold clamping system
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 380 V Triphase
Frequency: 60 Hz
