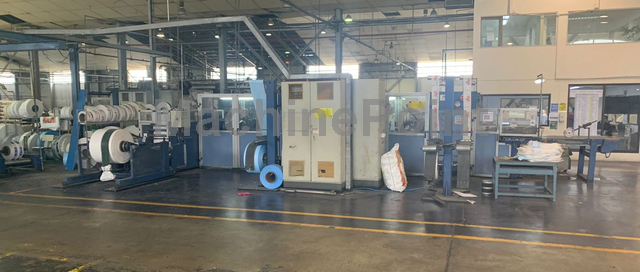

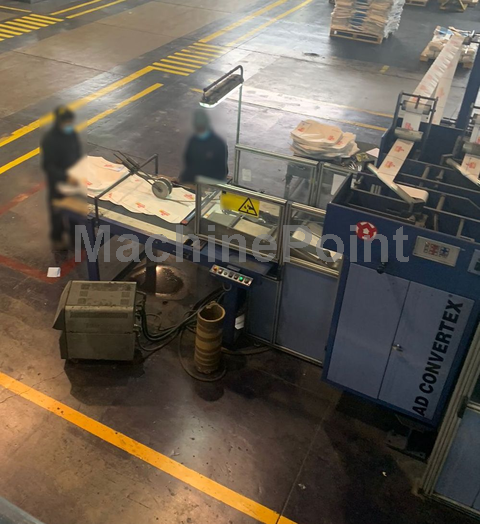

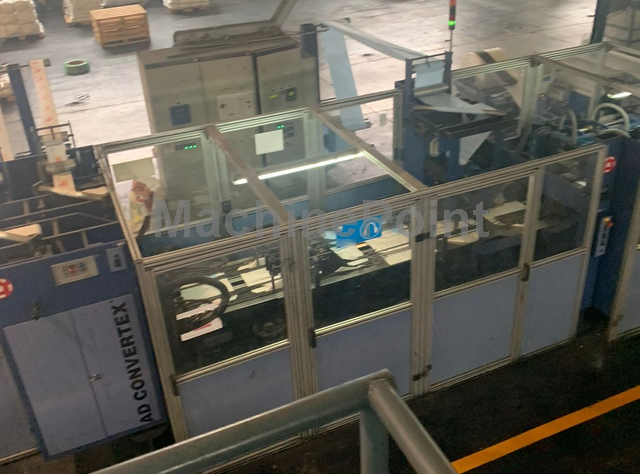

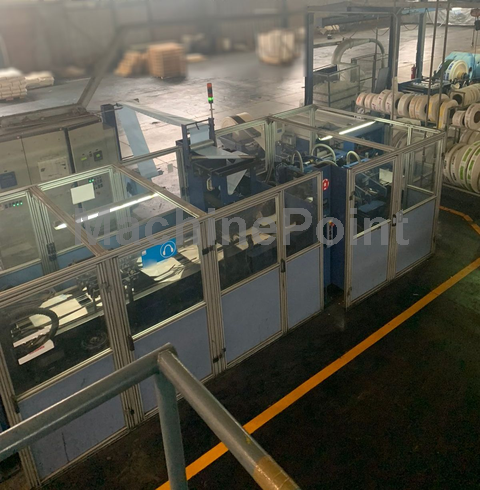

Used WINDMÖLLER & HÖLSCHER AD Convertex of 2000 for sale

Special welding machines WINDMÖLLER & HÖLSCHER, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.

Data Sheet of Used WINDMÖLLER & HÖLSCHER AD Convertex

Ref. : 300044216

Year: 2000

Brand: WINDMÖLLER & HÖLSCHER

Status: For sale

Delivery time: Immediate

Ask for machine price »

Want to sell your machine? »

Technical Specifications:

Other Specifications:

Single-layer woven fabric valve sacks
Production speed: 40 sacks/min
Mechanical speed:50 sacks/min
waste: 3-5%

Material
Main web: Circular woven fabric, coated 60/20 g/m2 Tolerances +5/-5 mm
Unwinds: Roll diameter Max. 1500mm, Core inner diameter 200mm
Valve material: Woven fabric, wated 60/20 g/m2
Cover patch material: woven fabric, wated: 60/20 g/m2
Unwinds: Roll diameter max. 1000mm, Core inner diameter: 200mm

Size range
Sakcs:
Sacks width 40-50 cm
sacks length 50/75 cm
Bottom width 9-14 cm
open bottom width 19-29 cm
min, measure between triangular packets 18cm
limiting sack width/bottom width (e.g.min. sack width and max.bottom width not feasible)
Main core 41.5-66cm
Cut-off length 40-90cm

Valve:
Cut-off length 11-20cm
Web width 19-29cm

Bottom patch:
Cut-off lengths 26-45cm
Web width 8-13.5cm

Energy requirements
Connected load 55kVA, 110A
Average energy consumption 35kVA, 60A
Cooling water (20ºC, 4 bar) approx. 1m3/h
Compressed air (6-7 bar) 5-10 Nm3/h
