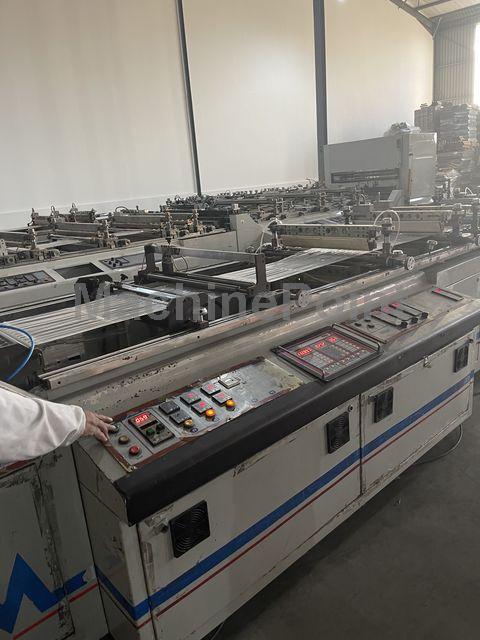

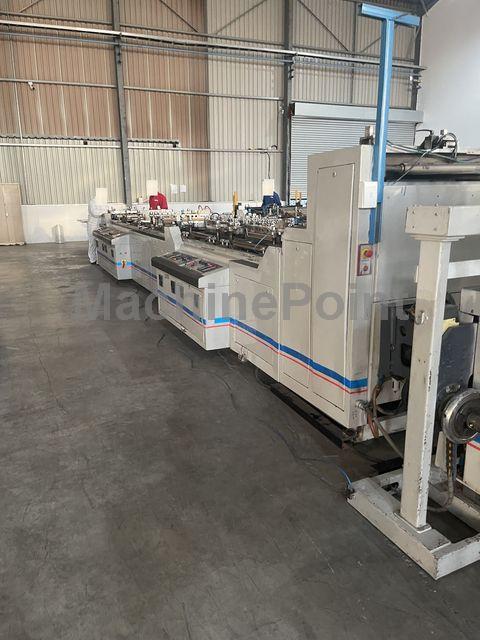

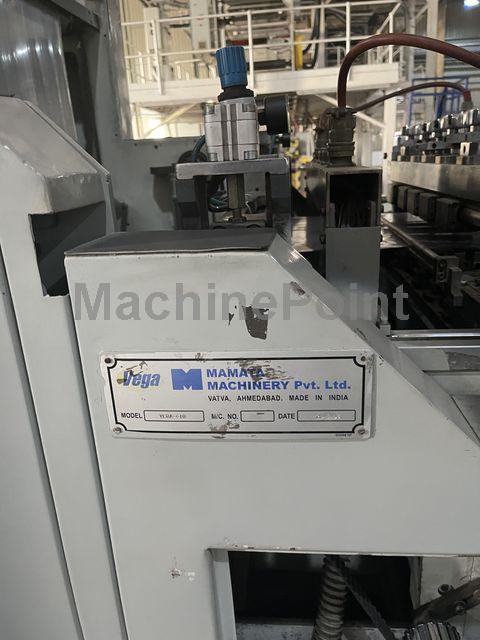

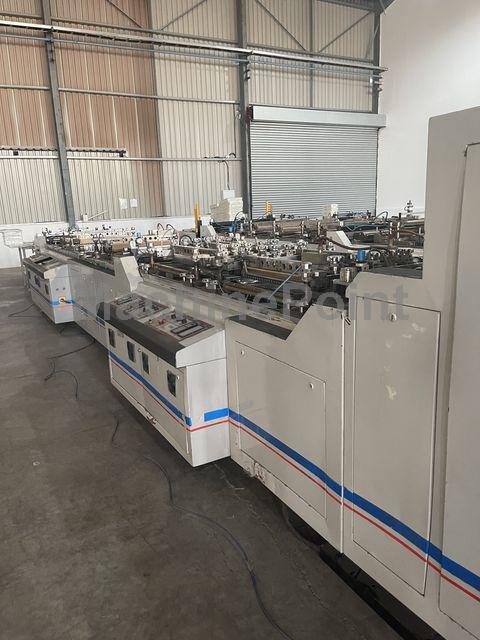

Used MAMATA VEGA 610 of 2006 Welding Width: 600 mm for sale

Pouch making machine MAMATA, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.

Data Sheet of Used MAMATA VEGA 610

Ref. : 300044251

Year: 2006


Status: For sale

Delivery time: Immediate

Technical Specifications:

Welding Width: 600 mm

Bag Length (Max): 550 mm

Bag Length (Min): 50 mm

Cycles Per Minute: 150 U/min

Other Specifications:

Material: Laminates, barrier film (PE/T/PA/PE/PE)
Film thickness: Laminated 0.040mm to 0.150mm ; Non Laminated : 0.080mm to 0.150mm
Output : Laminated : 80 to 150 ; Non Laminated: 40 to 80 (depending upon material thickness & draw length)
Mother roll width: 600mm (tubing) or 1200mm lay flat sheet width
Unwind shaft :shaft based, pneumatic
Mother roll diameter: 800mm
Web guide
Number lanes: 3
Photoelectric cell control
Horizontal and Vertical sealing
Servo driven
Air consumption: 500 liters per minute
Trim removing system
Spare drives available

Other Details:

Guarantee: Without guarantee

Current condition: In Production

Availability: Immediate

Voltage: 415 V Triphase
Frequency: 50 Hz
Voltage: 38 Kw
