Used Extrusion lines for nonwovens: FARE YS 2400 of 2020


Search used machines

Similar Products:

Extrusion lines for nonwovens - FARE - YS 2400

Data Sheet of Used FARE YS 2400

Ref.: 300044443

Brand: FARE

Year: 2020

Other Specifications:

Nonwoven fabrics made by spun bond process are being used in various applications like disposable diapers, hygiene and healthcare textiles, filtration, automotive industry, civil engineering, packaging, carpet backings.
Iis still working and produce polypropylene nonwoven textile (10-100gsm) on rolls for the bedding and furniture industry as well as for agricultural use. The fabric can be both white and coloured.

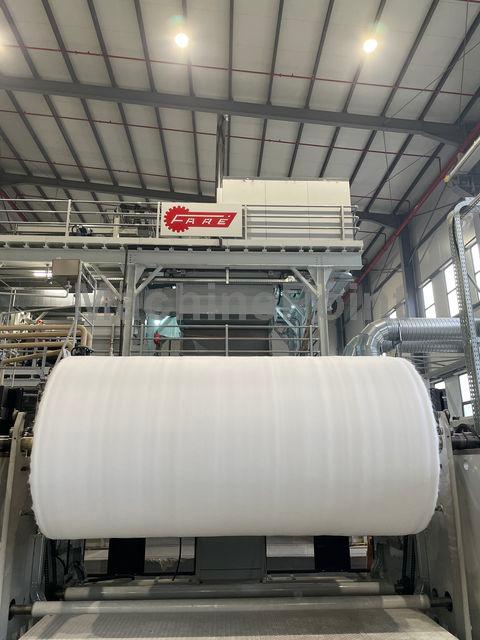

A fully equipped line for production of nonwoven textile Spunbond type YS 2400:
The machine was put into exploitation in 2021.
Also a rewinding and sealing machine for bonding of up to 5 rolls of 2400mm with total width maximum 12m. (Price to be negotiated apart)

Raw material: Polypropylene virgin granules

OUTPUT OF THE LINE
Throughput: up to 500 Kg/h Useful width: 2400 mm Nonwoven weight: 10 ÷ 100 g/m2
SCOPE OF SUPPLY

GRAVIMETRIC DOSING SYSTEM - complete with granules transport to it Composed by the following stations:

EXTRUDER MODEL 160/32
L/D ratio 1:32
Motor: 250 kW

FLOW SCREEN CHANGER TYPE CPF 2/160

SPINNING BEAM
The head is heated by electric resistances with suitable dimensions to obtain homogeneous temperature profile.
QUENCHING UNIT
MANIPULATOR FOR THE MOVEMENT OF THE SPINPACK
QUENCHING AIR GENERATION UNIT

DRAW GROUP
WEB FORMING UNIT
The web forming unit consists of a conveyor belt supported and driven by a battery
of rolls.

SUCTION SET
This suction set creates depression on the surface of the web of nonwoven by means of suction devices with adjustable air flow in order to adjust suction to any type of web thickness.

STEEL FRAME. STRUCTURE

HYDRAULIC CALENDER

AUTOMATIC WINDER together with 2 pcs A-frame (to hoist to mother rolls coming from the winder)
Web tension goes from 20 to 200 N/m, or other tensions are possible upon request.
TECHNICAL DATA
Reel max. Diameter: up to 1000 mm Production speed: up to 400 m/min Threading speed: 10 m/min
Drive system: . 1 ac motor on drive drum

ELECTRONIC EQUIPMENT FOR GENERAL CONTROL AND SYNCHRONISM
PLC SIEMENS SYSTEM TYPE SIMATIC S7/1500

CLEANING OVEN FOR SPIN PACK CLEANING
With a cleaning system.

ULTRASONIC WASHING TANK
Complete washing unit composed by stainless steel basin with ultrasonic generator for the final easier cleaning in warm water of the spinnerets coming from the oven.

TRIM RECYCLING EQUIPMENT
LIFTING DEVICE For spin packs and spinneret lifting to the spinning frame

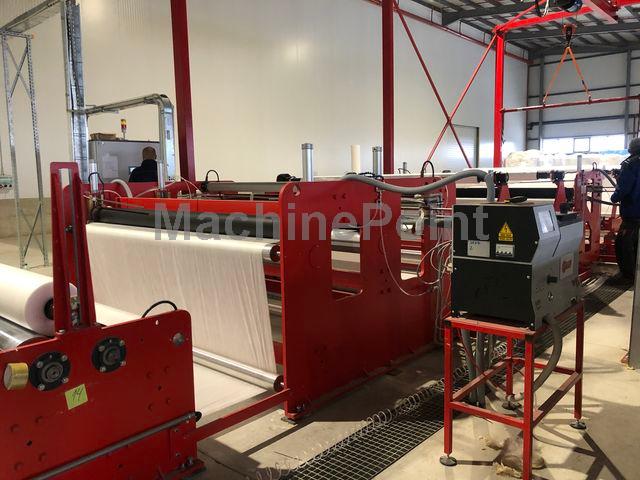

AUTOMATIC REWINDER
Minimum slitting width: 60 mm No. of slitters: 14

Rewinder
Finished reel max diameter: 1200 mm Core ID: 3 inch and 6 inch
Production speed: 600 m/min Threading speed: 10 m/min
