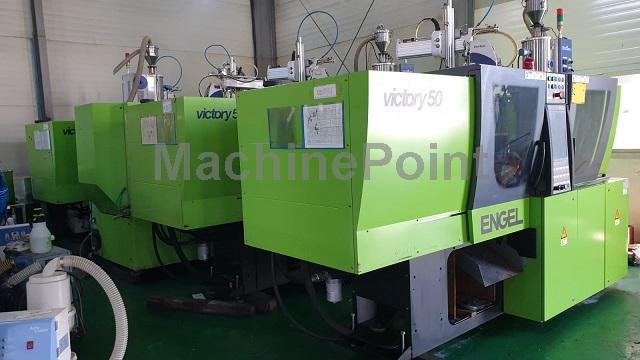

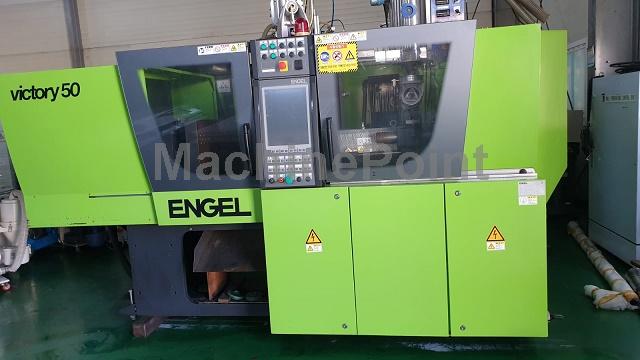

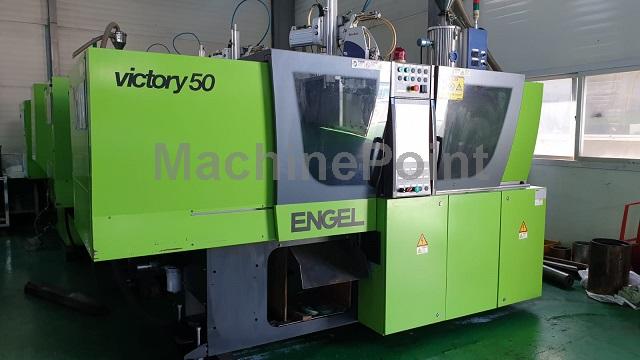

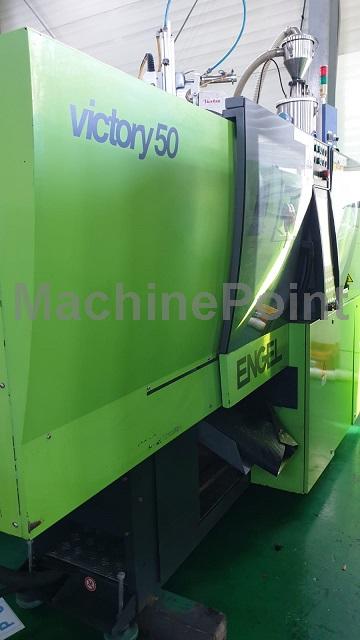

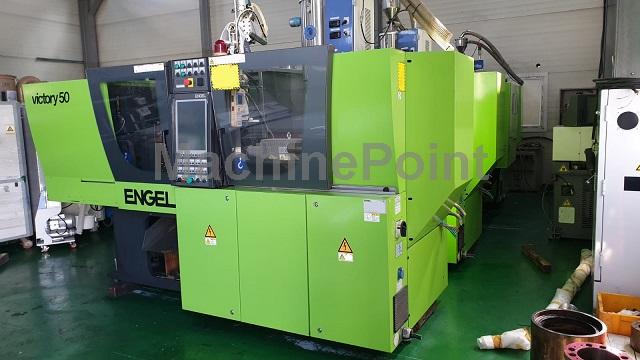

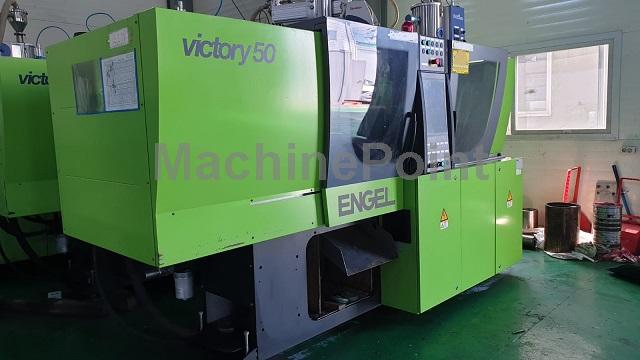

Used ENGEL Victory 200/50 Tech Pro of 2010 for sale

Injection molding machine up to 250 T ENGEL, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used ENGEL Victory 200/50 Tech Pro

Ref. : 300044614

Year: 2010

Brand: ENGEL

Status: For sale

Delivery time: Immediate

Technical Specifications:

Clamping Force: 50 ton

Shot Weight (Max): 62 g

Platen Size (H): 500 mm

Platen Size (V): 450 mm

Screw Diameter: 25 mm

Mould Height (Max): 200 mm

Daylight Between Platens (Max): 600 mm

Opening Stroke (Max): 400 mm

Ejector Force: 4.07886485191171 ton

Injection Volume: 69 cm³

Injection Pressure: 2400 bar

Injection Rate: 104 cm³/s

Nozzle Force (Max): 2.8552053963382 ton

Nozzle Stroke (Max): 230 mm

Oil Tank Capacity: 135 l

Other Specifications:

25.000 working hours
4 units available (Price per Unit).
Control CC200

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: Immediate
