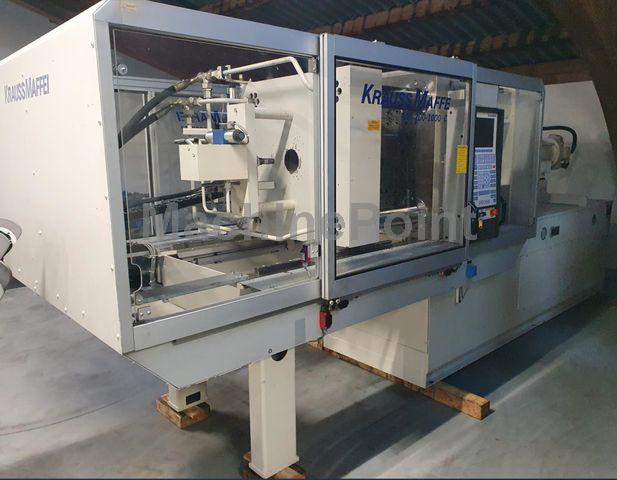

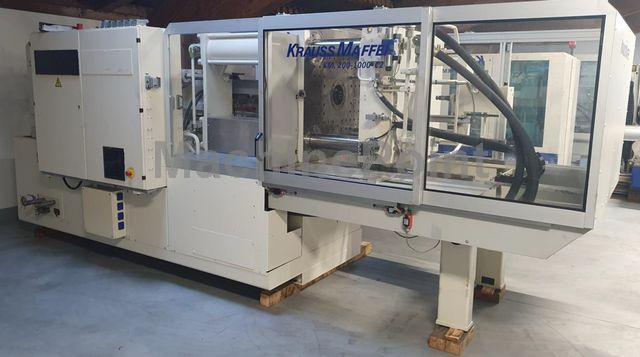

Used KRAUSS MAFFEI KM 200/1000 C2 of 2005 for sale

Injection molding machine up to 250 T KRAUSS MAFFEI, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.

Data Sheet of Used KRAUSS MAFFEI KM 200/1000 C2

Ref. : 300044851

Year: 2005


Status: For sale

Delivery time: Immediate

Technical Specifications:

Clamping Force: 200 ton

Shot Weight (Max): 476 g

Distance Between Tie-Bars (H): 560 mm

Distance Between Tie-Bars (V): 560 mm

Platen Size (H): 915 mm

Platen Size (V): 915 mm

Screw Diameter: 55 mm

Mould Height (Min): 350 mm

Daylight Between Platens (Max): 1050 mm

Opening Stroke (Max): 700 mm

Ejector Force: 5.91435403527198 ton

Ejector Stroke: 200 mm

Screw L/D Ratio: 20

Injection Volume: 523 cm³

Injection Pressure: 1904 bar

Injection Rate: 285 cm³/s

Nozzle Force (Max): 8.36167294641901 ton

Heating Zones: 5

Heating Capacity: 19 kW

Oil Tank Capacity: 525 l

Other Specifications:

Optional: robot Krauss Maffei LRX S 100-1731 (price on request)

Other Details:

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: Immediate
