Technical Specifications:
Materials: PP / PE
Film Width (Max): 2900 mm
Output Capacity: 1000 kg/h
Number Of Extruders: 3
Film Thickness (Min): 0,02 mm
Film Thickness (Max): 0,15 mm
Other Specifications:
Speed 50-350 m/min.
Coextrusion: Reifenhäuser; REIcofeed II 3-layer (ABC)
Net film width: 2500-2550 mm
Section A:

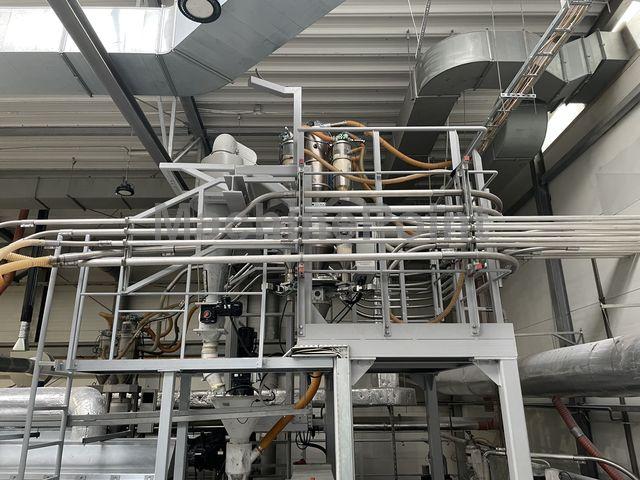

Dosing:Somos; 4-component gravimetric unit

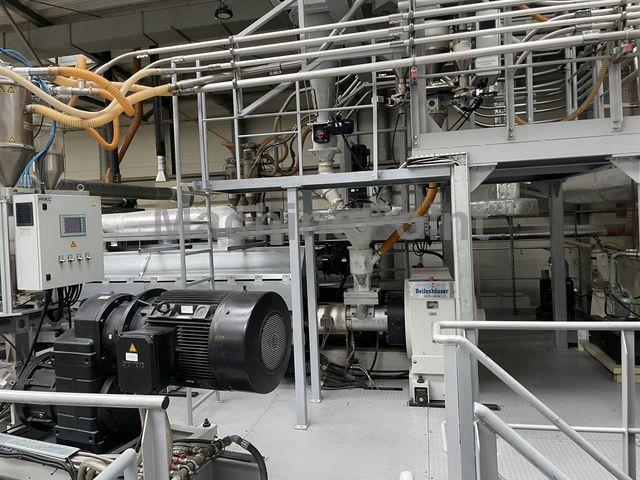

Extruder: Reifenhäuser; Evolution RT 030-1-80-30D, Ø 80 mm
Screen changer: Kreyenborg; manual changer type HS-080
Section B:
Dosing: Somos; 4-component gravimetric unit
Extruder: Reifenhäuser; RT5801 RT 010-5801-1-150-30-D, Ø 150 mm
Screen changer: Kreyenborg; manual changer type HS-150
Section C:
Dosing: Somos; 4-component gravimetric unit
Extruder: Reifenhäuser; Evolution RT 030-1-80-30D, Ø 80 mm
Screen changer: Kreyenborg; manual changer type HS-080
Die head Reifenhäuser; gross width: 3100 mm; net width 2900 mm

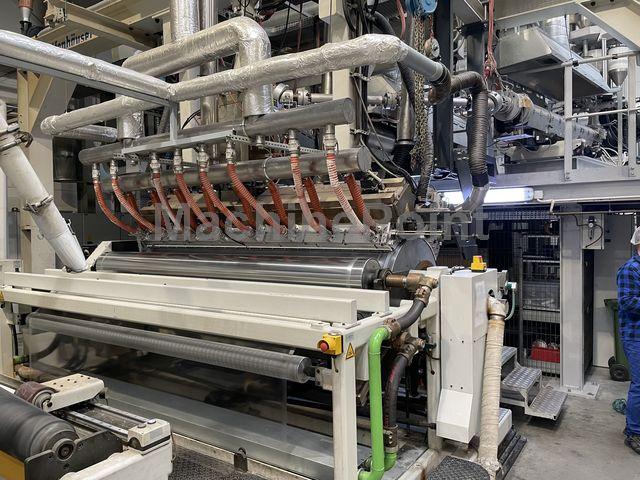

Chill roll: van Baal; Ø 1000 x 3040 mm; year of production: 2022
+ van Baal; Ø 1000 x 3040 mm; year of production: 2012
Thickness measuring:
Electronic Systems; Hiscan Isosint K, width: 2850 mm
Thickness measuring: Electronic Systems; Hiscan Isosint K, width: 2850 mm
Tria; edge trim refeeding unit including a shredder and flake refeeding system to extruder B

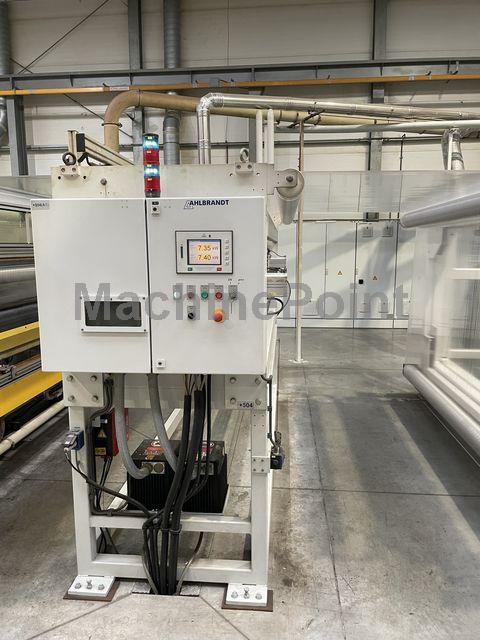

Corona treatment:
Ahlbrandt, cooled steel roll with ceramic coating, ceramic electrodes

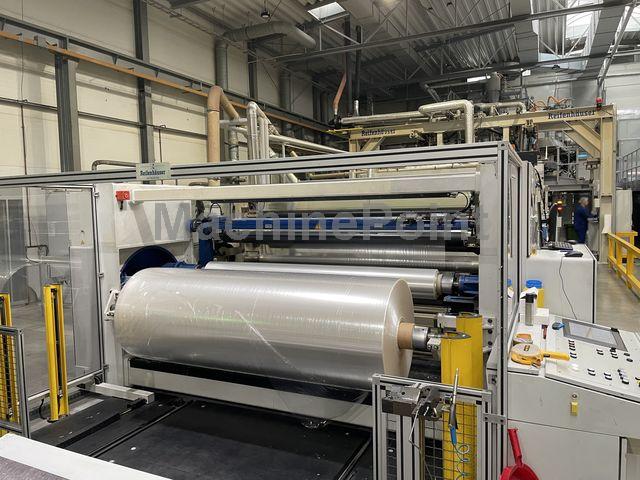

Winding: Reifenhäuser; WF-D01/L-2800-MIDEX I 2-position winder with an rotary arm – roll diameter up to 800 mm
Software update + replacement of computers with new ones in 2022.
modernization planned for May 2023 – replacement of ceramic coating of the roll with silicone coating, replacement of ceramic electrodes with steel electrodes, replacement of power generators
Line is working, continually inspected and maintained.
Availability: December 2023
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: From date
