Technical Specifications:
Output: 2160 U/h
Cup Volume (Min): 50 g
Cup Volume (Max): 500 g
Filler Machine Type:Rotary filler
Cip:Yes
Hygienic Standard:Clean
Other Specifications:

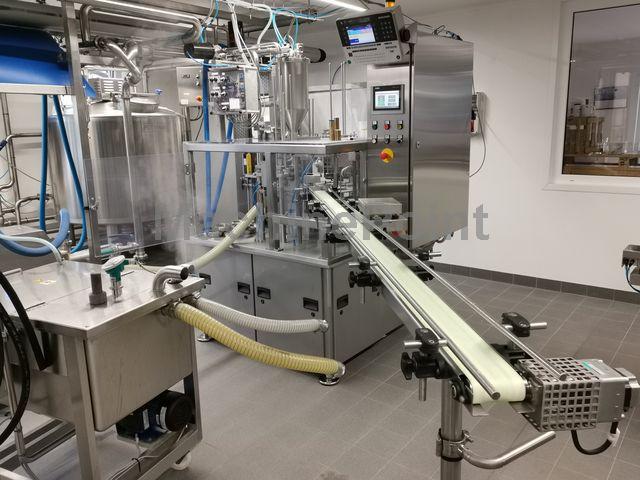

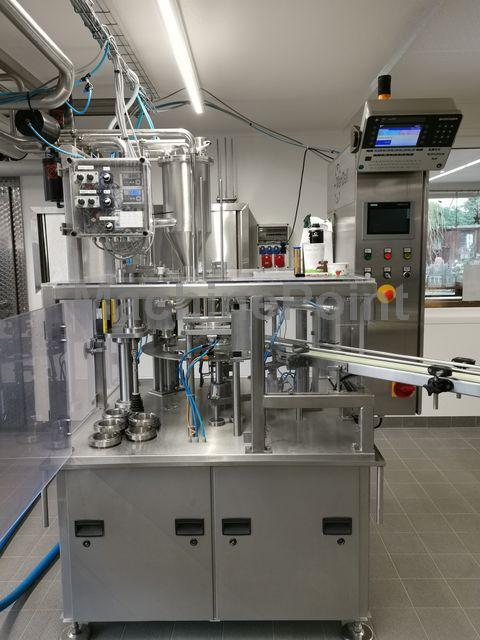

Rotary cup fill and seal machine Mendell RL 1
Year: 2016
Currently fill natural yoghurt, fruit yoghurt and cream cheese.
Format diameter 95 mm
Current cup sizes 180g , 250g and 500g
Machine can be converted to other formats with little effort. But only one format set is available
Cup made of PP
Aluminium closure
Other materials possible
Filling volume from 50-500 ml adjustable
The piston dosing unit is electrically driven by a servo motor and adjusted by recipes in the control system.
Up to 36 cycles/min à 36*60 = 2160 cups/h maximum
1 dosing station available. There is place for one more. However, this would still have to be purchased
The machine is fully CIP and SIP capable.
The machine includes 2 filling pumps and a static mixer for the production of fruit yoghurt or fruit curd. This means mixing 2 components.
The pump line and its control are adjusted to the filling machine so that a fruit yoghurt or similar with a content of 10-20 % can be filled.
The discharge conveyor is 2 m long
Stations:
1. cup destacking with "cup missing" check
2. free for extension with 2nd filler
3. main filler with cup lifter
4. blank station with "blank missing" monitoring
5. sealing station
6. date printing station
7. inverted lid station with "inverted lid missing" monitoring
8. push-off station
+ aprox . 2m conveyors

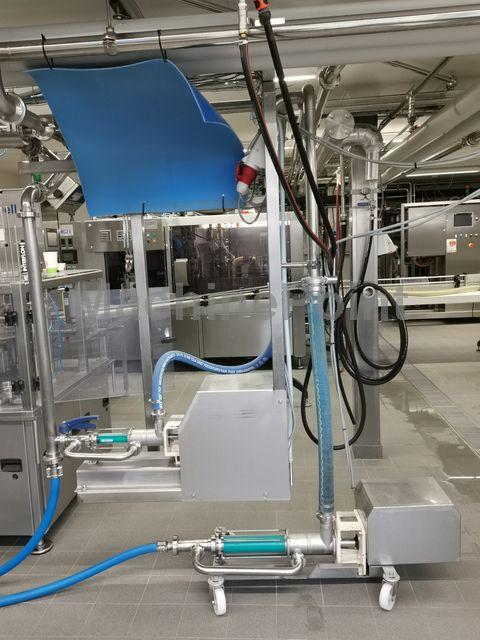

2 Pumps for fruit and natural yoghurt or similar incl. control system
In production till August 2023, can be inspected in production.
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Clasification:
Final Products: Yoghurt
Used Materials: Cups
