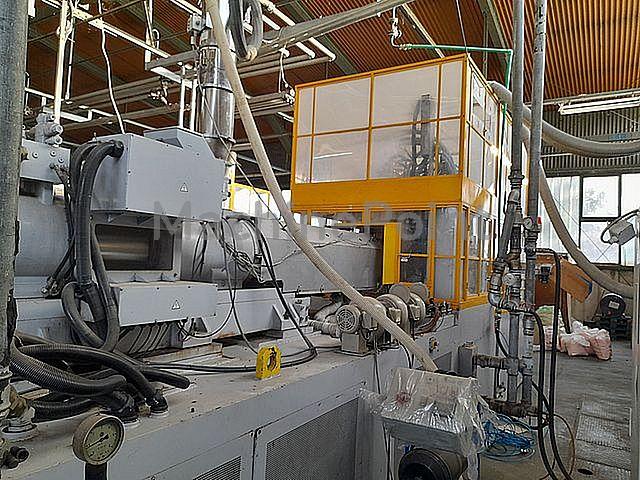

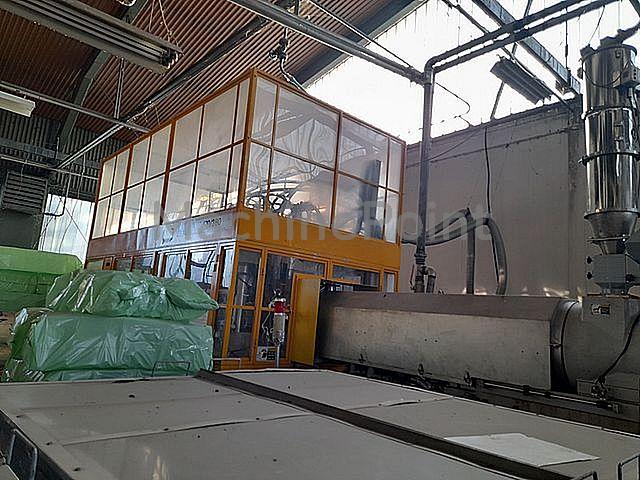

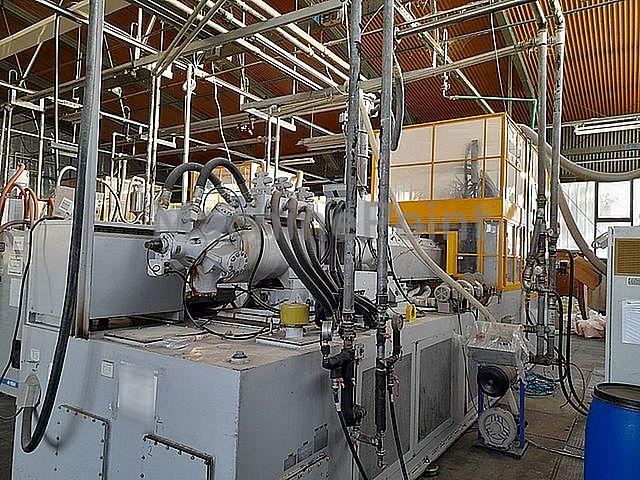

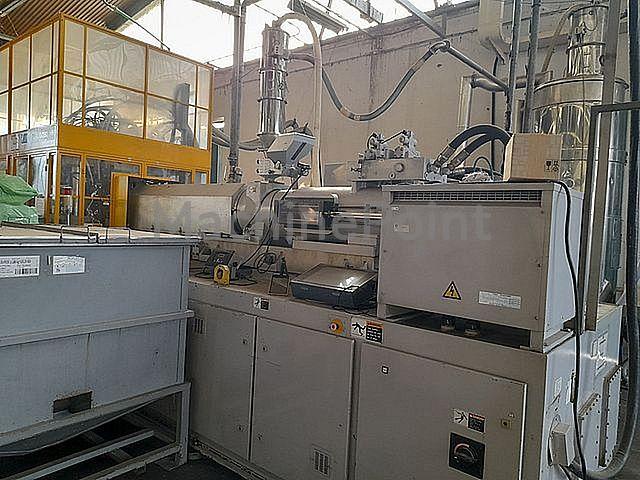

Used NISSEI ASB PM 170/280 of 2003 for sale
Injection moulding machine for PET preforms NISSEI ASB, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used NISSEI ASB PM 170/280
Ref.: 300046903
Year: 2003
Brand: NISSEI ASB
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Preform Weight (Max): 43 g
- Neck Type: PCO
- Neck Diameter: 28 mm
- Number Of Cavities: 32
- Clamping Force: 170 ton
Other Specifications:
Used injection molding machine for PET Preforms
Brand: Nissei ASB
Model: PM-170/280
Year: Mar 2003
Number of cavity: 32
Maximum preform weight: 69 gr
Neck format: 28mm PCO and BPF
preform weight: 42,5gr - 43gr - 39gr - 39,5
Auxiliaries available:
Dryer: ColorTronik CTT500
Dehumidifier: Matsui AMD 500
Chiller: MTA model PHOENIX 0347 SF year 2001
Electric motor pump: 112 kW
Total power capacity: 205,55 kW
Cooling tower: 300 L/min
Chiller water pressure: 0,29-0,59 MPa
Dimensions of the machine: 8550 x 1990 x 3539 mm
Machine weight: 26 t
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
