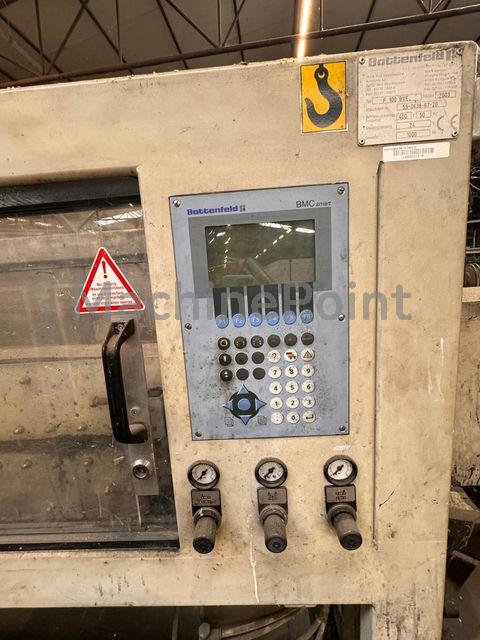

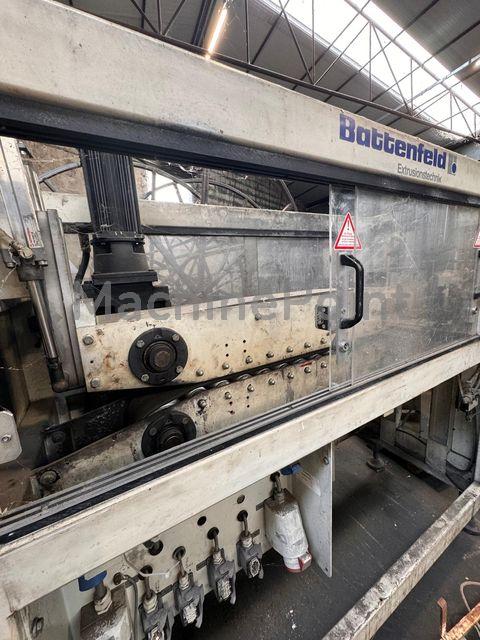

Used BATTENFELD P100 BVE of 2003 for sale

TECNOMATIC Large CNC robot Year of construction 2010 Traverse 2800mm Vertical 1800mm Extraction 900mm Load capacity 12-15kg

Winder Type: Dual Turret Maximum Roll Diameter: 30 in (760 mm) Maximum Roll Width:52 to 122 in (1321 to 3099 mm) Maximum Line Speed: Customer specifications to a maximum of 800 rpm (244 mpm) Maximum Roll Weight: 2500 lbs (1134 kg) Type of Material: Blown film Idler Roll Diameter:4.5 in (114 mm) Core Size(s):3 in or 6 in ID (76.2 mm or 152.4 mm) Air Required:90 psi @ 10 cfm plant air (6.0 bar) Type of Transfer: Adhesiveless automatic cutover Winding Method: AC flux vector centre drive

EXTRUSION LINE FOR THE PRODUCTION OF ALUMINIUM - PE-Xb (silane) COMPOSITE PIPES IN DIAMETER-RANGE 14-40 MM 1 Automation step 3 for BEX 1-60-30B (item 2.1) 1.1 BMCtouch NOTE Integration of haul-offs 1-3 via CAN-Bus 1.2 BMCtouch terminal on separate pillar incl. pivot-mounted arm for co-extruders 2+3 (E 25 and BEX 1-45-30B). Installation at inlet of cooling bath after coating process 2 Extruder 2.1 Extruder, BEX 1-60-30B 3 Die head for PE-Xb 3.1 Extrusion die, PE-X 50 4 Calibrating system 4.1 Pre-chamber, type V 63 5 Vacuum calibrator 5.1 Vacuum calibrator, VB2-63 VA - 9 m 6 Ultrasonic scanner 6.1 Ultrasonic scanner, USM 63/C-8 7 Cooling length 1 7.1 Spray cooling bath CB 63 VA - 6 m 8 Diameter measuring system 1 9 Haul-off 1 9.1 Belt haul-off, P 90 BF / 800 10 Co-extruder 1 for adhesive on inliner 10.1 Co-extruder, E 25.3 SU-25 D 11 Automation step 2 for co-extruder 1 (E 25.3) 12 Cross head (adhesive) 12.1 Extrusion die, E 45 BN 10 13 Diameter measuring system 2 14 Strip preparation 15 Forming- and welding station 16 Base frames 17 Haul-off 2 17.1 Belt haul-off, P 90 BF / 800 18 Diameter measuring system 3 19 Co-extruder 2 for adhesive coating on aluminium 19.1 Co-extruder E 25.3 SU-25 D 20 Automation step 2 for co-extruder 2 (E 25.3) 21 Co-extruder 3 for coating of outer layer 21.1 Extruder, BEX 1-45-30B 22 Automation step 2 for co-extruder 3 (BEX 1-45-30B) 23 Cross head (outer layer) 23.1 Extrusion die, E 40 HN 20 24. Cooling length 2 24.1 Cooling length KK 63 VA – 13 m 25 Diameter measuring system 4 26 Marking device - NOTE The marking device will be provided by customer. 27 Haul-off 3 27.1 Belt haul-off, P 90 BF / 800 28 Cutting unit 28.1 Pipe cutting device, RTA 63 E 29 Tip table 29.1 Tip table KR 100/50 30 Coiler Balzanelli TR 1350 includes tooling for diam: 14 mm 16 mm 20 mm

2-layer extrusion line for HDPE pipes with four colour stripes in the diameter range 16-40 mm Pipe construction: 88% outer layer; 12 % inner layer; 4 colour stripes Extruders: Outer layer: extruder Battenfeld BEX 1-45-30B; output up to 200 kg/h; year 2009 Inner layer: extruder Stork E 30.3 KSY2-25 D; output up to 25 kg/h; year 2008 Stripes: extruder Battenfeld BCE 1-30-25D; output up to 8 kg/h; year 2009 Die head: Extrusion die type PO 63 VSI Co-extrusion ring for inner layer Co-extrusion ring for colour stripes Die set for pipe O.D.: 16x1,2 mm; 20x1,7 mm; 25x1,8 mm; 32x1,9 mm; 40x2,4 mm Vacuum calibrator: Pipe range diameter: 16-63 mm Length: 5900 mm Calibrating system: Pre chamber type V63 Cooling tank: Inlet unit KE 63; length 500 mm; cooling bath K63-6; Haul off: Battenfeld P100; year 2009 Available: August 2024

Working hours June 2024 ... 43,562
