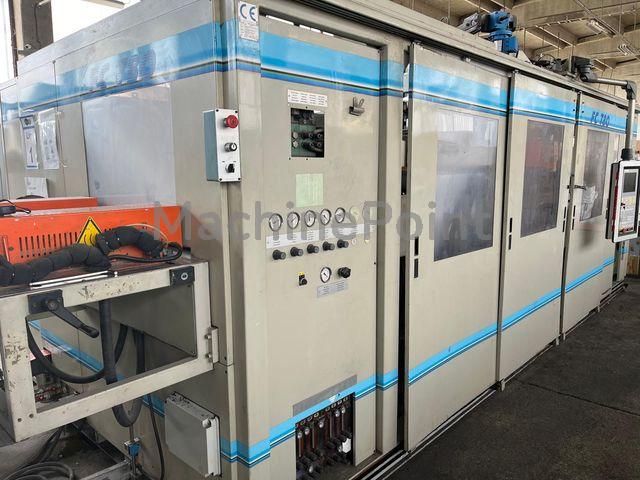

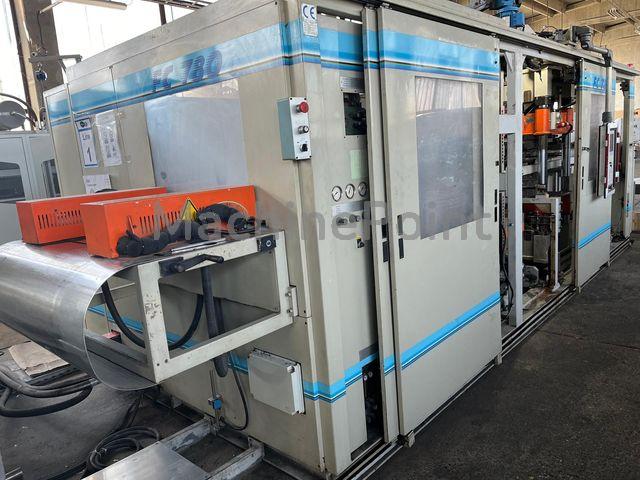

Used Thermoformer: TFT FC 780 of 2004


Haven’t found the machine you need?

Be the first to know.
We’ll notify you as soon as a machine with these specifications becomes available. In the second-hand market, the best deals go fast.
Subscribe

Similar Products:

Thermoformer - TFT - FC 780

Data Sheet of Used TFT FC 780

Ref.: 300047234

Brand: TFT

Year: 2004


  • Material : PET, PS, HIPS; PVC, OPS
  • Forming Area (Vxh): 780x570
  • Depth Of Draw: 130 mm
  • Material Thickness (Min): 0.18 mm
  • Material Thickness (Max): 1.8 mm
  • Number Of Stations: 3
  • Products Type: Container
  • Feeding Systems: Roll fed

Other Specifications:

Max. reel diameter: 1200 mm
Max. pos/neg depth: 130/130 mm
Max. sheet width: 810 mm

Machines sold in the past:

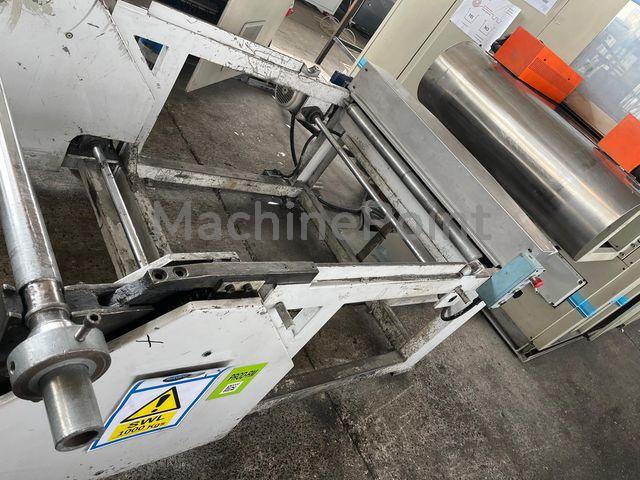

Automatic unwinder, max reel diam 1200 mm, Sheet width 250-780 mm Platen closing force 16500 daN Dry cycles 50/min Cutting table closing force 50,000 daN Waste rewinder
Unwinder motor power : 0.75kW Tilting power : 1.1kW Width max center line : 1200mm Weight roll max : 1000kg Forming station : Mold max dimension : 720x430 Depth max : 120mm Width foil : 150+740 Max thickness HIPS : 1.5mm Max thickness PS : 3mm Max stroke under and upper plates : 140mm Pressing force per plate : 16500kg Power upper heater : 36.8kW Power lower heater : 31.2kW Cutting station: Dimensions : 700x430 Depth : 120mm Pressing force per plate : 50.000Kg on 1mm Max stroke under and upper plates : 150mm Power heater : 7.8kW Stacking station : dimensions stacking : 700x500mm Rewinder outgoing material: Max center line :600mm
Unwinder: motor power : 0.75kW Tilting power : 1.1kW Width max center line : 1200mm Weight roll max : 1000kg Forming station : Mold max dimension : 720x430 Depth max : 120mm Width foil : 150+740 Max thickness HIPS : 1.5mm Max thickness PS : 3mm Max stroke under and upper plates : 140mm Pressing force per plate : 16500kg Power upper heater : 36.8kW Power lower heater : 31.2kW Cutting station: Dimensions : 700x430 Depth : 120mm Pressing force per plate : 50.000Kg on 1mm Max stroke under and upper plates : 150mm Power heater : 7.8kW Stacking station: dimensions stacking : 700x500mm Rewinder outgoing material: Max center line : 600mm
Pick up must be end December since space requirement Regelung der Heizelemente:PT100 Elektrische Anforderungen 3x400V / 50Hz Elektrischer Gebrauch (KW):140kVA Leistung jeder Heizung:104kVA Heizung Stromverbrauch: 260A Stapelstation Stanzlochstation

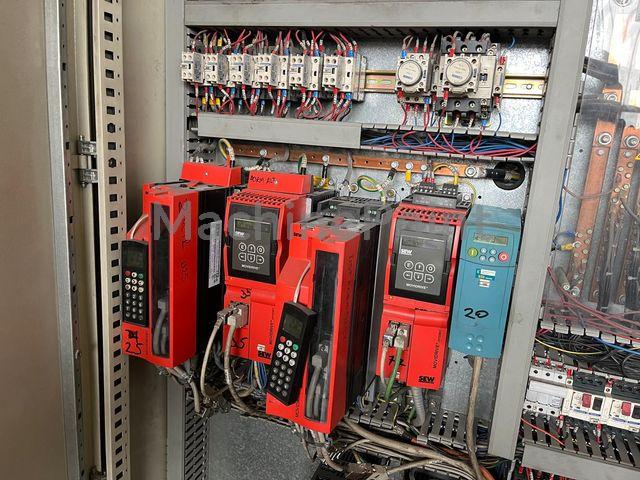

In mould cutting and stacking Max tool size 780 x 570mm Max material width : 810mm Forming clamping force : 60.000 daN Max cycles/min : 45 Forming pressure 7bar Drives : SBC/PARKER PLC : GEFRAN
