Used HB MACHINERY SJLM-CR-Z65/110/80-1850mm of 2021 for sale

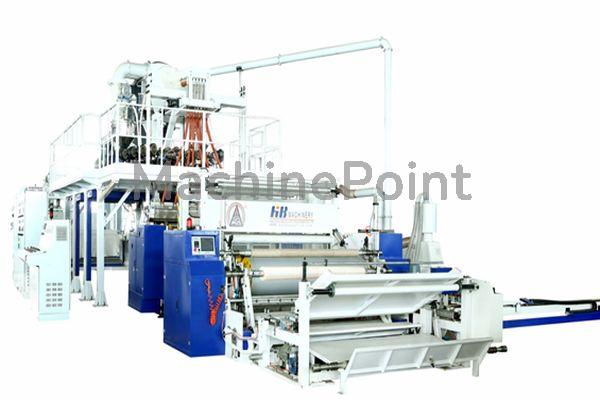

Stretch film extrusion line HB MACHINERY, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used HB MACHINERY SJLM-CR-Z65/110/80-1850mm
Ref.: 300047247
Year: 2021
Brand: HB MACHINERY
Ask for machine price Want to sell your machine?
Technical Specifications:
- Layers no.: 5
- Web Width: 1500 mm
Other Specifications:
Products: PE stretch film
Width of film: 1500mm (500mm×3 rolls；500mm×2 rolls+200mm×2 rolls)
Thickness of film: 10-55um
Raw material: LLDPE, mLLDPE

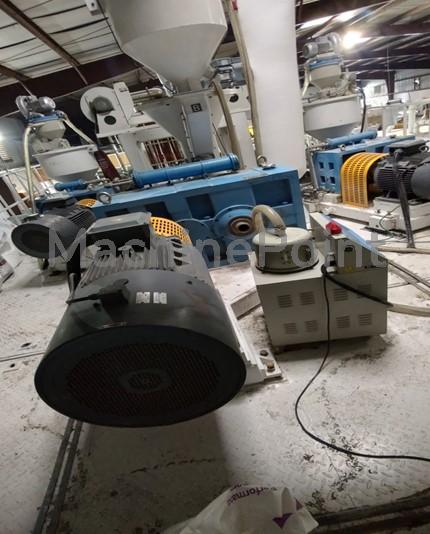

Film structure: A/B/C/B/C (3 extruder with 5 layer)

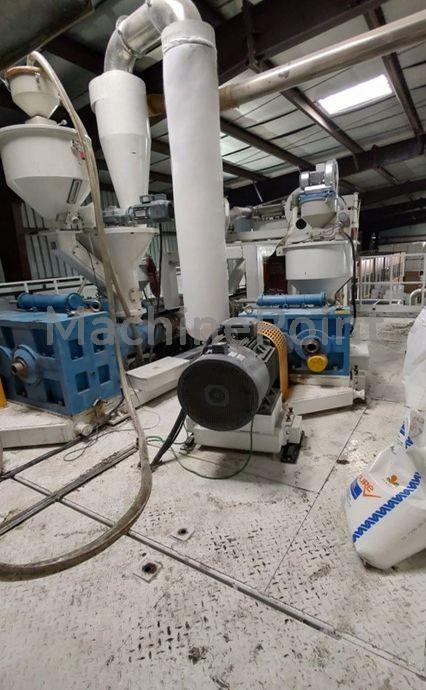

Extruder A: 65mm, 30/1
Extruder B: 110mm, 30/1
Extruder C: 80mm, 30/1
Distribution proportion: 10% / 35% / 10% / 35% / 10%
Capacity (max): 8 tons/24 hours (at 20um)
Designed line speed (max): 250m/min
JC Times manual T-die: 1850mm
Cooling roller: Dia. 980mm X 1850mm
Electric edge locking device
Oscillating unit
Edge trim: on-line crush by crusher
Take-up unit

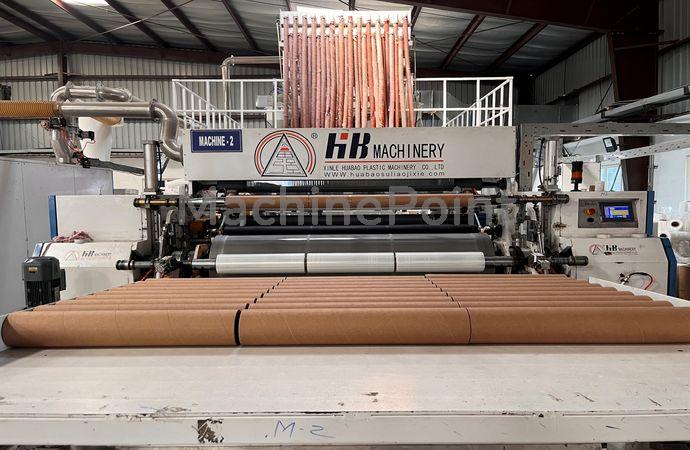

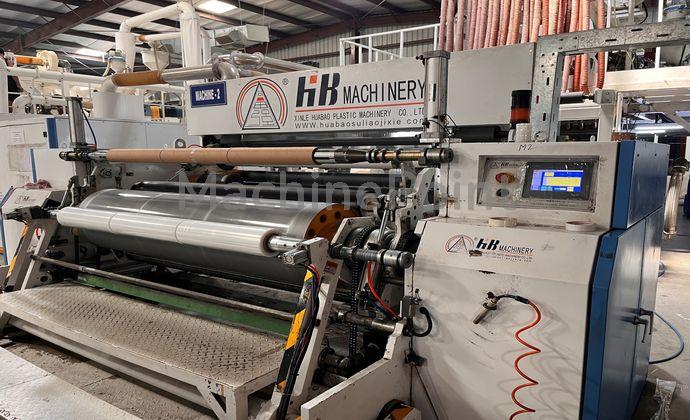

Winder unit: back-to-back
Diameter of Winding Roller: 445mm
Width of winding: 1500mm (500mm X 3 rolls)
Specifications of winding core: Dia. 76 (inner) x 95mm (outer)
Mode of cutting off: automatic cutting, automatic change
Equip with robot hand, can realize the automatic paper core loading and automatic film unloading, etc.
Available from December 2024
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Voltage: 415 V TriphaseFrequency: 50 Hz
Voltage: 350 Kw
