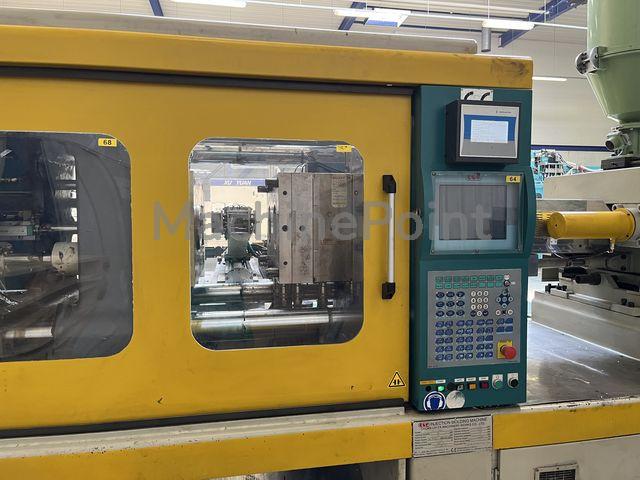

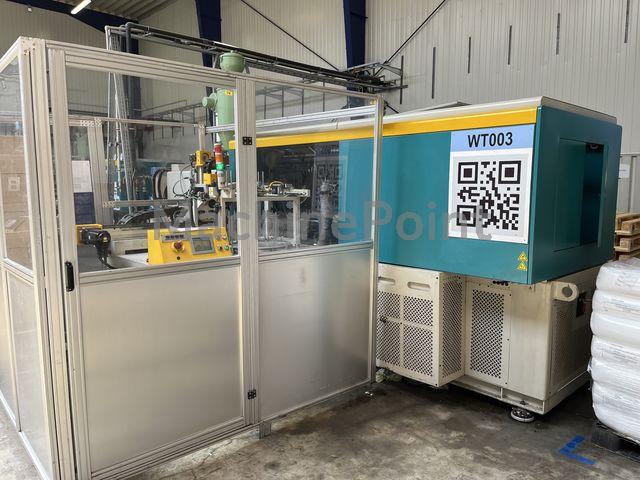

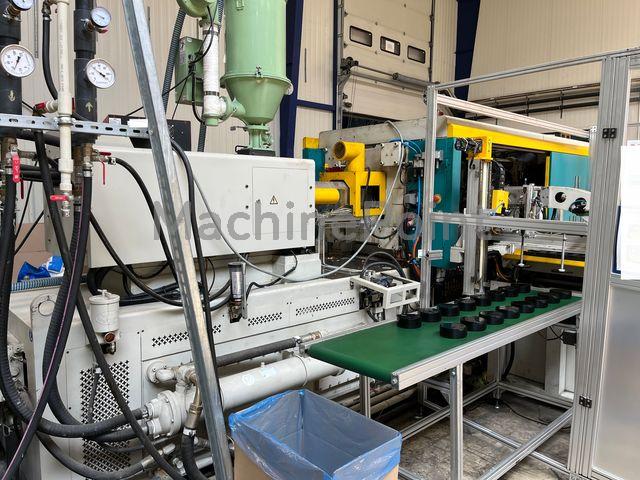

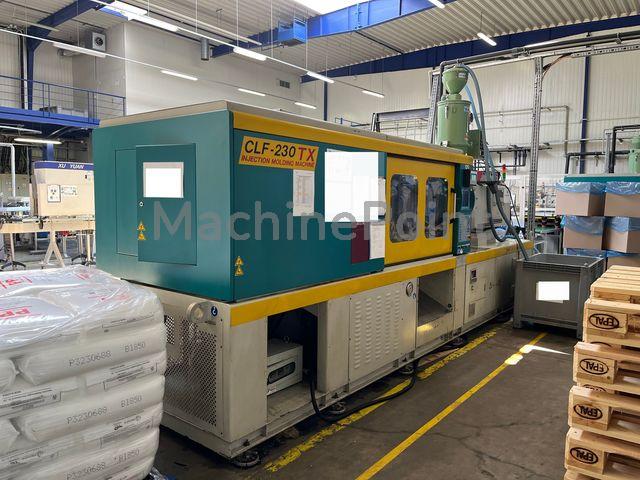

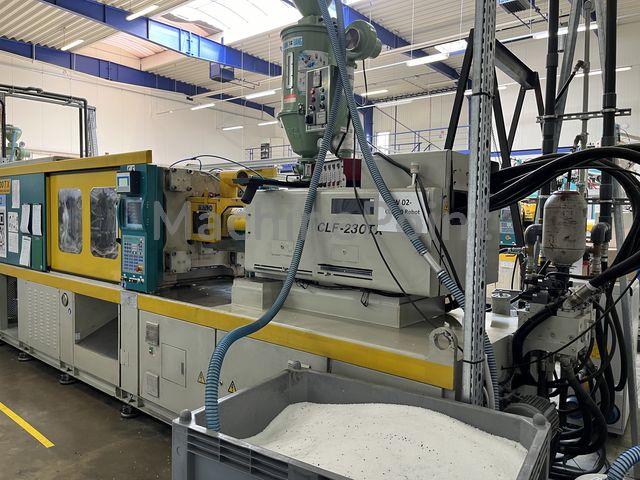

Used CHUAN LIH FA CLF-230TX of 2012 for sale
2012 | Ref.: 300047322
Injection molding machine up to 250 T CHUAN LIH FA, We will be by your side all along the process of buying your machinery, from the initial assessment, accompanying you in the visits, legal and technical consultancy, and defined contracts that will protect you.
Data Sheet of Used CHUAN LIH FA CLF-230TX
Ref.: 300047322
Year: 2012
Brand: CHUAN LIH FA
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 230 ton
- Shot Weight (Max): 354 g
- Distance Between Tie-Bars (H): 560 mm
- Distance Between Tie-Bars (V): 560 mm
- Platen Size (H): 860 mm
- Platen Size (V): 860 mm
- Tie-Bar Diameter: 100 mm
- Mould Height (Max): 600 mm
- Mould Height (Min): 200 mm
- Opening Stroke (Max): 560 mm
- Ejector Force: 61 ton
- Ejector Stroke: 150 mm
- Number Of Core Pulls: 4
- Injection Volume: 389 cm³
- Injection Pressure: 1839 bar
- Heating Zones: 5
- Heating Capacity: 13 kW
- Oil Tank Capacity: 550 l
Other Specifications:
Included:

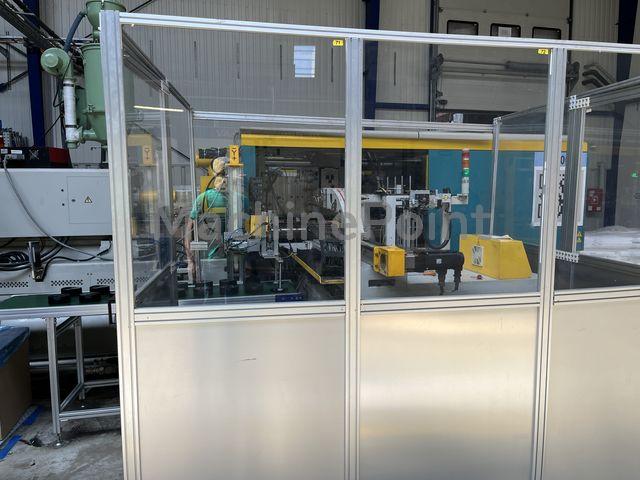

Handling robot:
Brand: Jet Engine
Model : JE11-IML
Year : 2011
Used Materials PP
Working hours by 25.06.2024 : 42258 h
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 85 Kw
