Used Washing plant: BORETECH TX500S of 2021

Data Sheet of Used BORETECH TX500S

Ref.: 300047326

Brand: BORETECH

Year: 2021

• Output Capacity: 500 kg/h
• Material : PET

Other Specifications:

TX500S Particle Cleaning Equipment (Purifine Line) to produce clean PET flakes (Fines).

During the PET bottle washing process, there will be centrifugal dryer in different section. Purifine is a washing line designed to wash the fine(powder) coming out from each different dryer and turn it into material that can be reintroduced into higher application.
Its process includes: Powder cleaning , hot washing and rinsing.
The non-PET impurities, beverages etc mixed in the PET Flakes will be separated under appropriate conditions by chemical agents and water

Procedure:

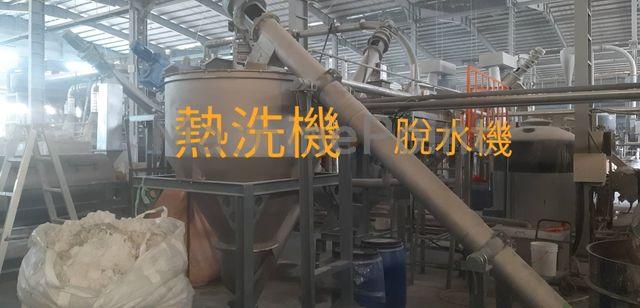

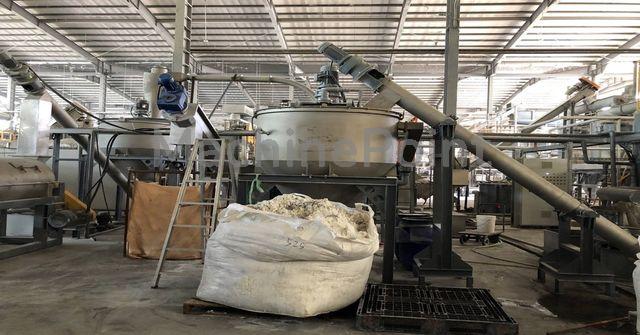

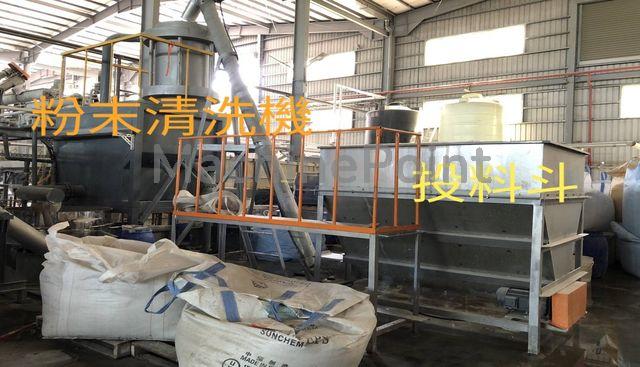

The PET powder is transported to the Particle Cleaner. The cleaned PET powder will be transported to the Hot Washing Machine by the Screw Conveyor.
Then, the powder enters the Horizontal Dryer via the Discharging Screw Conveyor of Hot Washing Machine.
The powder will be processed by the Rinsing Machine, the Discharging Screw Conveyor of Rinsing Machine and the Horizontal Dryer for the rinsing and drying.

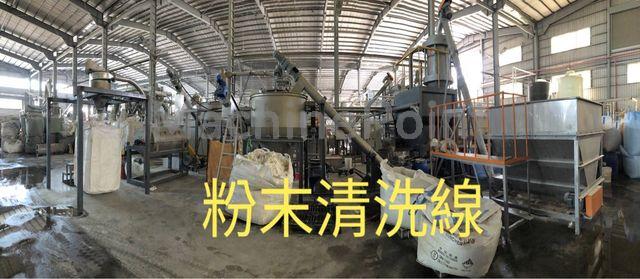

Machine is composed of:
1 Screw Conveyor x 3
2 Particle Cleaning Machine
3 Hot Washing Machine
5 Horizontal Dryer
6 Cyclone Separators
7 Rinsing Machine
9 steel structure
10 Meter & automatic control system
12 Trunking racks, cables
13 Electrical control box
14 Reducer

Installation Area 132.2m2
Maximum Height 4.5m
Environmental Protection 11KW
Ambient Temperature ≤50ºC（Good Ventilation）
Environmental Humidity ≤85%

Three-Phase Five-Wire 11kw
Tap Water ≤ 0.5m3/h

Raw Material:
Processing Amount ≤500kg/h（PET mixed chips）
Water Content ≤ 35 %
Temperature ≤ 50 ºC
Particle Size 1mm≤Particle Size≤ 12mm
