GALILEO MEGA 2410/A of 2002 used

GALILEO CAL 1610 V2/HR year 1998

Substrate Materials : Non-extensible plastic films PET : 100-800 microns PVC : 100-800 microns Extensible plastic films with thickness depending on the specific material and the tension range. Roll size Max. metallizing width : 1650 mm Min. metallizing width : 800 mm Max. diameter : 1000 mm Internal core diameter : 200 mm Evaporation Material deposited : aluminium Recommended degree of purity (Al) : 99.8% Diameter of aluminium wire : 1.6 mm Number of evaporators : 19 Dimensions of evaporators : 120x35x10 mm Material : sintered, intermetallic Max. aluminium vaporisation rate per source : 10 g/min Thickness range : 0.8-10 ohm/frame Winding Maximum web speed (PET 12 microns) : 12 m/s Tension range : 9-90 kg Acceleration and deceleration time at max speed : 30 s Pumping Pumps in the metallization chamber 2 diffusion pumps nominal speed each : 50.000 l/s 1 mechanical booster pump with variable speed motor, displacement : 5.500 m3/h 1 Cryopanel for Polycold PFC1102HC : 200.000 l/s 2 rotative pump, displacement : 505 m3/h Pumps in the winding chamber 1 mechanical booster pump, displacement : 13.000 m3/h 1 mechanical booster pump, displacement : 5.500 m3/h 1 mechanical booster pump, displacement : 2.000 m3/h 1 Cryopanel for Polycold PFC662HC : 150.000 1/s 2 rotative pumps,displacement : 505 m3/h Pumps in the guard chamber 1 mechanical booster pump,displacement : 2.000 m3/h 1 mechanical booster pump,displacement : 1.000 m3/h Cooling Water Flow rate : 350 1/min (approx) Inlet temperature : 15-25 degrees C Pressure : 4 bar Note: the water quality must be such as to prevent clogging and corrosion in the cooling system. Compressed Air Pressure : 6-7 bar

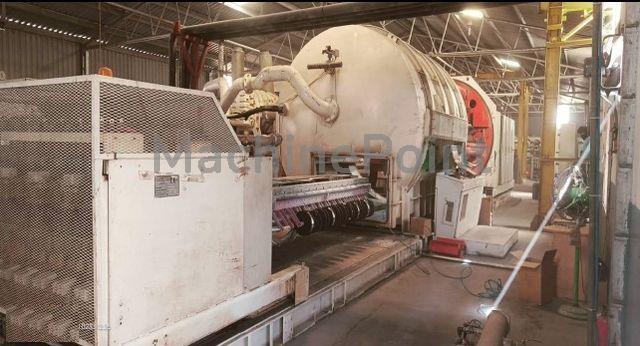

GALILEO 2410 MEGA year 2002

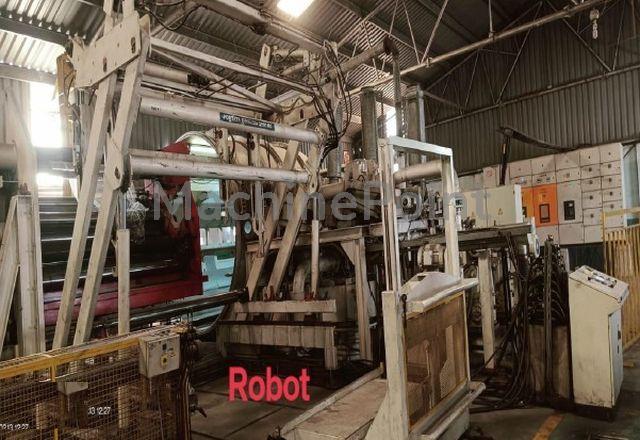

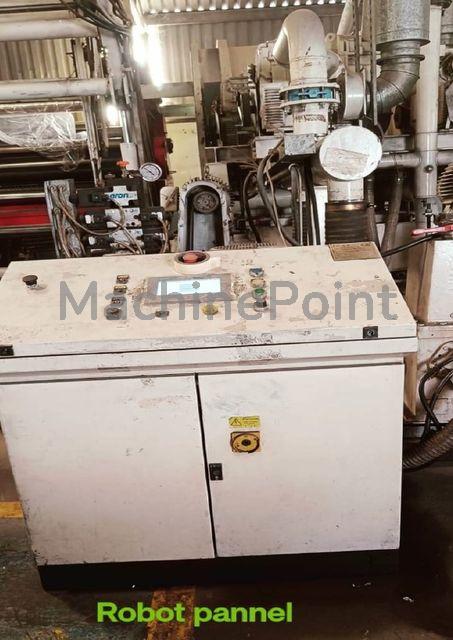

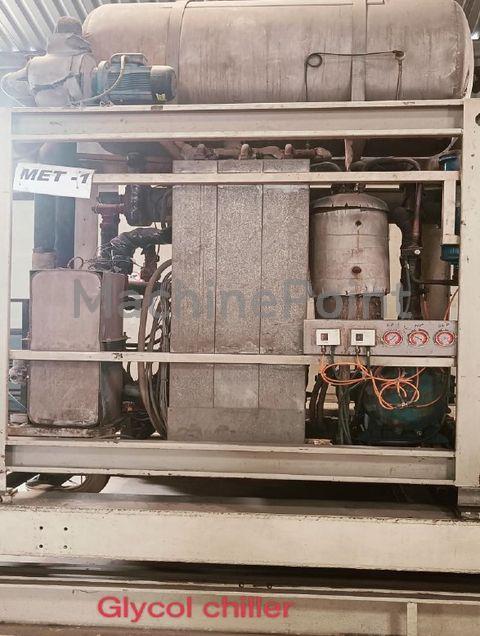

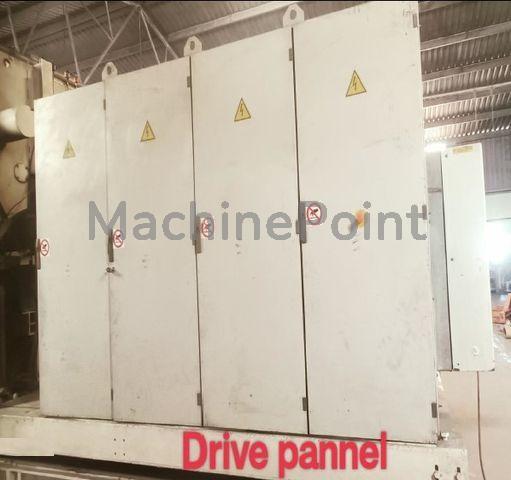

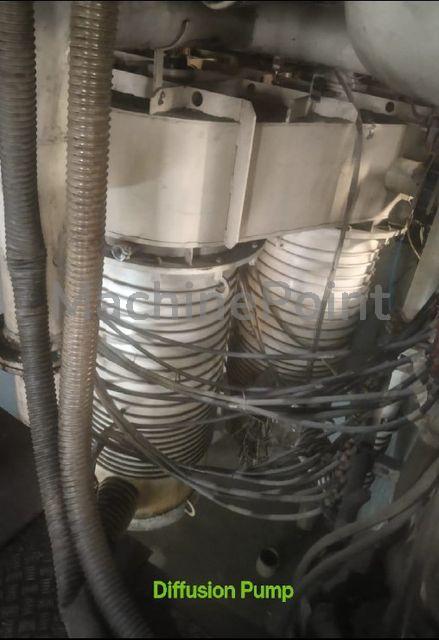

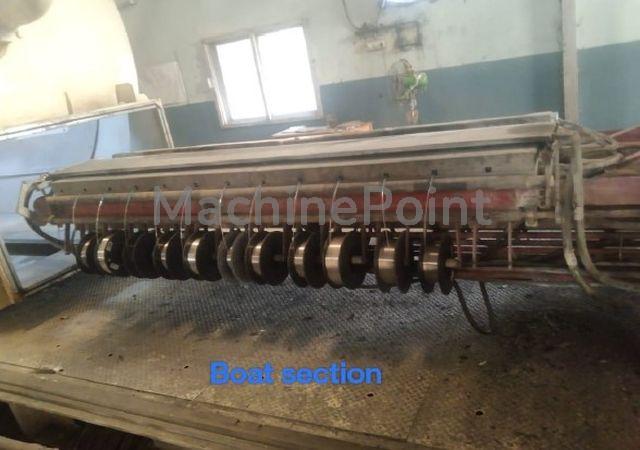

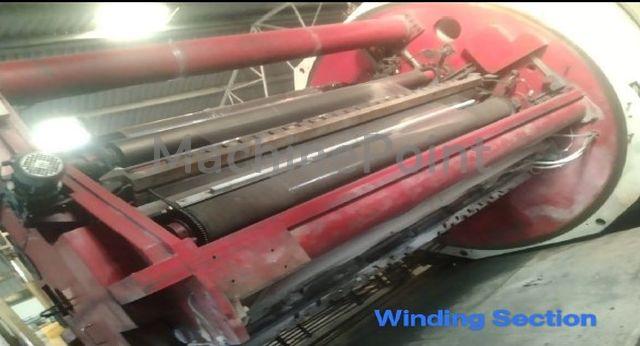

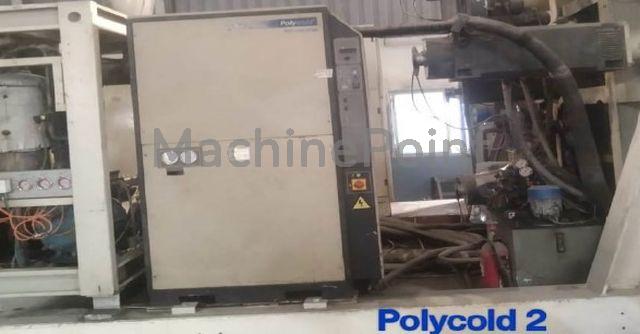

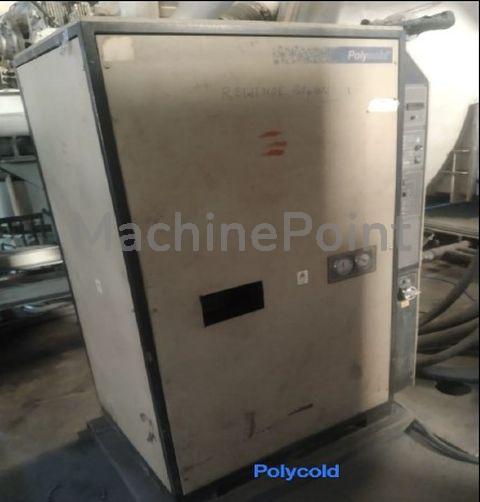

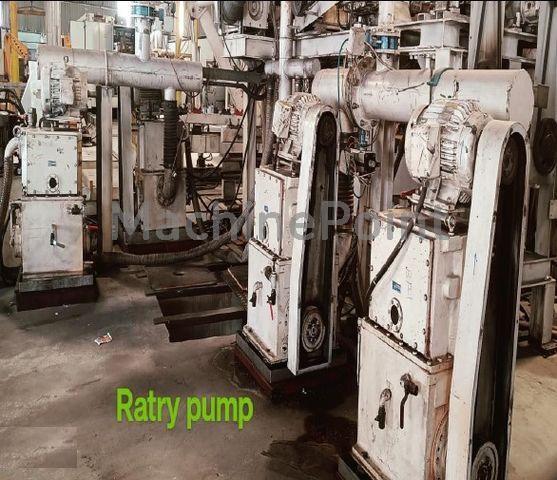

2410 mm Galileo MEGA Metallizer. with ROBOTIC Loading-Unloading. 2500 mm LAEM Slitter-Rewinder 1996 (optional for 40.000 euros) Machine condition as on today : Metallizer machine is successfully running with output 20 tons per day ( calculated for 12 mic Polyester Film in maximum width ). The evaporation boats are controlled by a separate cabinet with Eurotherm drives. Machine was installed with Eurotherm Thyristor Unit but completely replaced those with latest Eurotherm E-power converters along with new HMI in year 2014. These are latest technology by Eurotherm. Min./Max. Metallization Width (mm): 1200 mm / 2400 mm Min. Working speed: 90 m/min Max Mechanical Speed: 840 m/min Max diameter reel unwinder/rewinder: 1000mm Core ID: 6 inch Material deposited: Aluminium (recommended 99.8% purity) Diam. Of Aluminium wire: 1.6 mm Number / Size of evaporation boats: 27 / 120x35x10 mm Max. Quantity of Evaporated Aluminium per boat: 10g/min Unwinding Tension range / Tension on Capstan unit : 3.5 to 65 Kg / 90 Kg Diameter of process roller : 500 mm Additional Cooling System Corema Chilling unit for main process drum ( -20 C) PLC, Drives & Control : Siemens S7 With Simoreg Drives for the machine and process control, via supervision PC. Max. Absorbed power (approx..) 340 KW Number of chambers: 3 independent vacuum chambers with independent pumping systems to increase the efficiency of the vacuum. Optical control RF Other units in the machine: Two ceramic plated rollers, 2 bowed spreader rollers, oscillating arm on the rewinder with tension sensing control system. The machine includes a hydraulically driven robotic handling system 3 air Shafts are included in the supply. Material to metallize:- Polyester Film :- 8 mic to 65 mic BOPP Film :- 8 mic to 50 mic CPP Film :- 15 mic to 75 mic Paper :- 50 GSM to 175 GSM If thickness is higher then machine speed needs to be reduced Pumping Assembly With automatic sequences Metallization chamber Diffusion Pumps 50000 l/s, 3 Roots Pumps 5500 m3/h, 1 Cryogenic panel 200000 l/s, 1 Polycold PFC 1100, 1 Pump with rotating piston 505 m3/h, 2 Rewinding Chamber Roots Pumps 13000 m3/h, 2 Roots Pumps 5500 m3/h, 1 Cryogenic panel 200000 l/s, 1 Polycold PFC 1100, 1 Pump with rotating piston 505 m3/h, 2 Guard Chamber Roots Pumps 2400 m3/h, 1 Roots Pumps 1000 m3/h, 1

GALILEO MEGA 2010 year 2007

Materials Polyester (PET) 6-60 p Oriented Polypropylene (OPP) 12-100 p PVC 20-80 p Low-density polyethylene (LDPE) High-density polyethylene (HDPE) 25-100 p , 25-100 L., CPP 20-80 p Reels Dimensions Max. film width:2020 mm Max. metallising width:2000 mm Min. metallising width: 1000 mm Max. diameter:1000 mm Internal core diameter:152 mm Evaporation Deposited material:aluminium Recommended degree of purity:99,8% Diameter of the aluminium wire:1,6 mm Boats number: 23 Boats dimensions: 120x35x10 mm Boats material:intermetallic sintered Evaporation rate per source:10 g/min Max . range of thickness deposited:0,8 - 10 STD Winding system Maximum speed: 840 m/min Minimum speed: 90 m/min Tension range:3.5-65 kg Acceleration and deceleration time at max. speed:30 - 60 s Process drum diameter:500 mm Pumping system No. 2 Diffusion pumps - 50000 I/sec No. 1 Roots pump - 13000 m3/h No. 1 Roots pump - 2400 m3/h No. 1 Roots pump - 2400 m3/h No. 1 Cryogenic panel - 200.000 I/sec No. 2 Rotary piston pumps - 505 m3/h No. 1 Polycold 1100' No.1 Rotary piston pump - 505 m3/h Electrical feeding Tension (+6-10%) as requested Frequency (±4%) by the Customer Phase: 3 Wires: 3 + ground Max. absorbed power (approx.) : 340 kW Cooling water Flow rate (approx.) : 600I/min Inlet temperature: 18+25 °C Inlet pressure (for free outlet): 3 kg/cm2 Max. heat load to remove: 290 kW Typical water specifications Water hardness: 6-8 °D CO2 content: max 15 mg/I CI content:max 20 mg/I Particle size: max 100 p Particle concentration: max 10 part./cm3 Ph:6,9-8,2 Conductivity: max. 500 pS/cm Compressed air Pressure:6-7 kg/cm2 Consumption (average): 0,7 Nm3/h Peak consumption:50 Ndm3/s Specifications Dew point at working pressure: +2 °C Particle concentration:max 5 mg/m3 Particle dimensions: max 5 p Oil content:max 5 mg/m3 DIMENSIONS (INCLUDING ELECTRICAL CABINET Width :9m Length (with opened carriages): 18.5 m Height: 3,6 m Approx. Weight : 40 t Min. room temperature : 15 °C (70% RH) Max. room temperature: 35 °C (60% RH)

GALILEO SLITTER MSR25 year 2003

PLC and drivers : SIEMENS S7 Max. reel dimension: Max. width : 2500mm, Rewinder outside diameter: 1000mm, Rewinder max. weight: 1500kg Tension range: 16 – 160 N/m, Max. rewinding speed: 800m/min Unwinder: Core width range: 1000mm – 2500mm, Min. outside diameter: 400mm, Core diameter 6”, Web guide system: Fife +/- 75mm, sensor ultrasonic, Cutting unit: Cutting station: 5 pcs, Type: Razor blade, Rewinder: Type: central with contact reels, Rewinding stations: 4 pcs, Max. outside diameter: 1000mm, Width range: 300 – 2500mm, Max. weight: 1500kg, Chucks: 3” & 6” Unloading: trolleys,

GALILEO CAL 1210 year 1991

Materials OPP 12-120 my PET 8-120 my HDPE 20-120 my PVC 20-150 my Paper 30-150 g/m2 Shaft Diam 150 mm Tension 4-40 kg Vacuum pumps metallizing section 3 difusion pumps 1 Roots pump 1 rotating pump Vacuum pump rewinding section 2 Roots pumps 1 rotating pump Vacuum pump final section 1 Roots pump 1 rotating pump

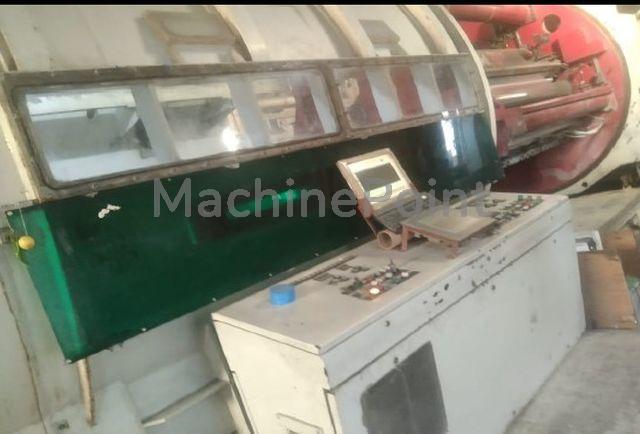

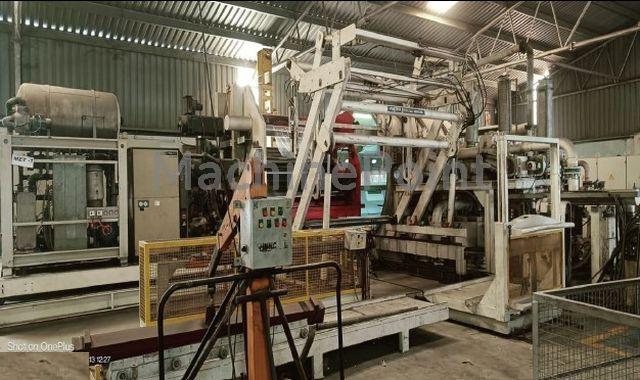

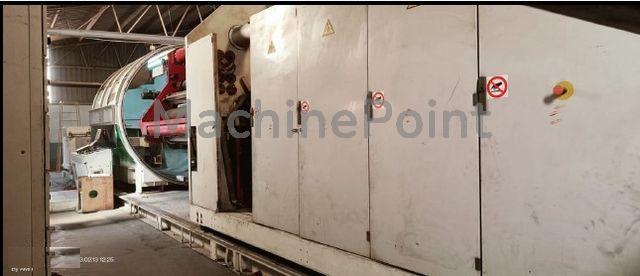

Used GALILEO MEGA 2410/A of 2002 for sale

Data Sheet of Used GALILEO MEGA 2410/A

Technical Specifications:

Other Specifications:

Other Details:

MachinePoint's services:

Similar Products:

Machines sold in the past:
