Used B&B SFB 8E +Z+B-2 of 2001 for sale

2001 | Ref.: 300047443

Pouch making machine B&B, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.

Data Sheet of Used B&B SFB 8E +Z+B-2

Ref.: 300047443

Year: 2001

Brand: B&B

Status:

For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

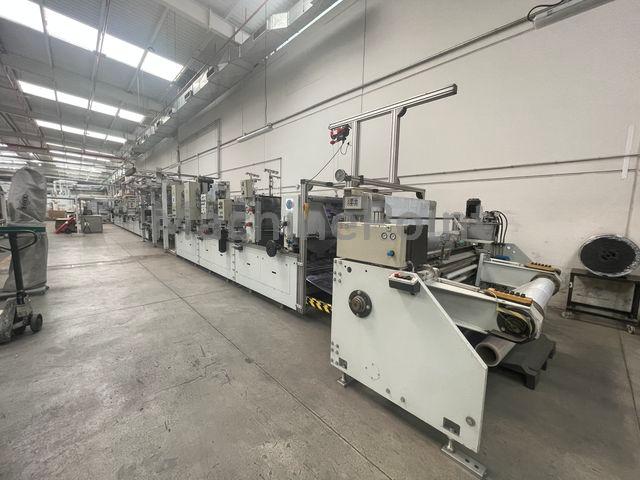

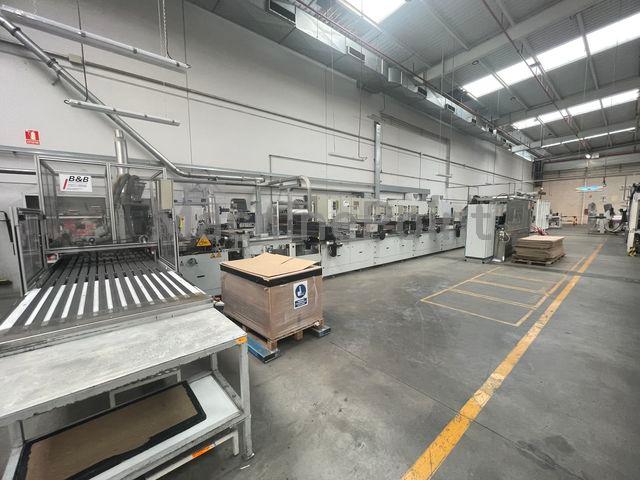

Photos

Technical Specifications:

Welding Width: 1000 mm
Bag Length (Max): 1000 mm
Bag Length (Min): 150 mm
Cycles Per Minute: 100 U/min

Other Specifications:

Side gusseted bag/sack making machine with Zipper sealing, bottom folding

Production capabilities:
• side gusseted bags with side gusset from bottom to top
• longitudinal seam sealing
• bottom corner (mitred) sealing
• cross sealing – bottom
• hole die cutting for bottom fixing
• top zipper
• bottom fold with hot melt fixing

Max. Roll Diameter: 1.200 mm
Max. Roll Width: 1.600 mm
Max. Bag Length (Format Length): 1.000 mm
Min. Bag Length: 150 mm
Max. Bag Width: 750 mm
Min. Bag Width: 100 mm
Min. Side Gusset: 50 mm (open width)
Max. Side Gusset: 250 mm (open width)
Max. Zipper Length 400 mm
Mech. Performance: 100 Cycles / min.

Production performance :
1 lane : Performance < 500 mm Length: approx. 50-70 bags min. - Performance > 500 mm Length: approx. 35-50 bags/min
2 lanes : Performance < 500 mm Length: approx. 100-140 bags/min. - Performance > 500 mm Length: approx. 70-100 bags/min.

Approx. production performance for bag sizes:
1) 1,5 – 2 kgs = 190 + 100 (90) x 540 (490) mm:
100 bags / min (2 lanes) ( 60-150 μm)
90 bags / min (2 lanes) (150-250 μm)

2) 4 kgs = 260 + 115 (100) x 630 (600) mm:
80 bags / min (2 lanes) ( 60–150 μm)
70 bags / min (2 lanes) (150-250 μm)

3) 10 kgs = 370 + 120 x 720 mm:
39 bags / min (1 lane) ( 60-150 μm)
35 bags / min (1 lane) (150-250 μm)

Materials:
PE and PE/PET laminates (60 – 250 microns)
PET / PET met. / PE
PET / Alu / PE
PET / Alu / CPP
PET / Alu / OPA / PE
PET / ALU / OPA / CPP
