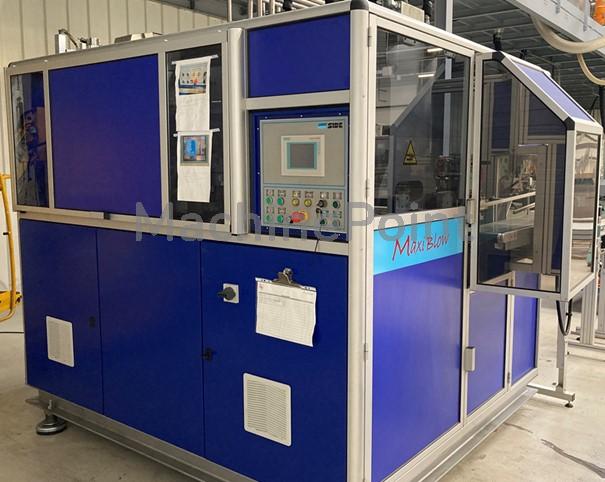

Used SIDE TMS Maxiblow of 2011 for sale

2011 | Ref.: 300047448

Stretch blow moulding machines SIDE, The team at MachinePoint will accompany you through the whole process of buying the machine.


Data Sheet of Used SIDE TMS Maxiblow

Ref.: 300047448

Year: 2011

Brand: SIDE

Status:
For sale

Delivery time: Immediate


Ask for machine price Want to sell your machine?

Technical Specifications:


  • Neck: PCO 1810/38mm 10
  • Output: 1100 U/h
  • Preform Feed System: Yes 1
  • Container Size (Max.): 10 l
  • Number Of Cavities: 1
  • Materials: PET

Other Specifications:



Side Maxiblow blower, year 2011
Output: 1100 bph
Formats: 0.25L - 10L

Neck: PCO 1810 / 38 mm

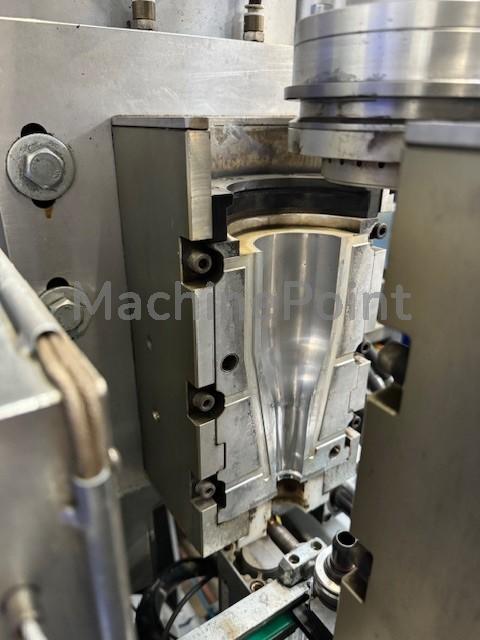

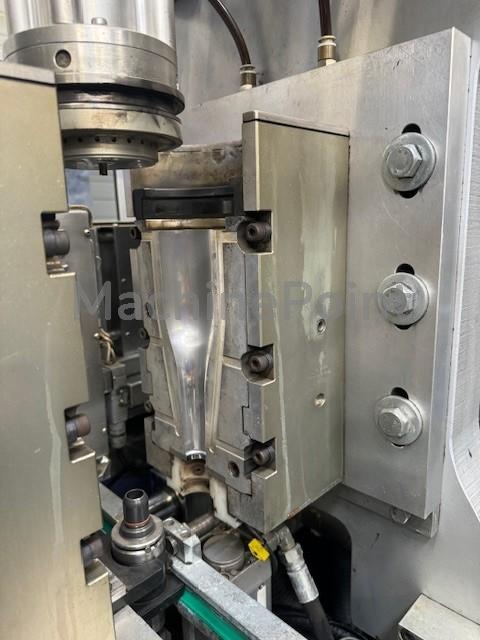

Available molds: 50 cl & 1L PCO / 2L 38mm (drawings available)

In production until September 2024 and available immediately.

Other Details:


Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
, Frequency: 60 Hz
Voltage: 45 Kw

Clasification:


Used Materials: PET bottles

Processes: Blowing

MachinePoint's services:


Similar Products:


Machines sold in the past:


Side-TMS 1002e 2 Year 2009 - Machine is working - Technical handbook available Neck: 48mm for detergent and cosmetic bottles
Side TMS 1002-e Installed Power: 80 Kw Average power consumption: 30 Kw Max Pressure: 40 bar Air: 120-292 m3/h Heating power: 60Kw Heating Zones: 8, 8 Lamps Bottle size: Diameter: Max 105 mm Height: 90-335 mm preferential heating for oval bottles
Side TM3 2004 - 2005 yr. 4 cavity linear blow molder Was in working condition when disconnected Cannot be seen in dry run Does not indlude molds or auxiliars Excellent company!
Included preforms feeding Air Supply: 40 bar 240 m3/h 6 bar: 35 m3/h Water Supply: 6-10ºC 3-5 bar Included 1 Mold 4L & 1 mold 5L
Blow moulder SIDE MAXIBLOW Includes ABC Horizon 900 compressor working hours: 135 +/- Type of neck: 38 mm Available immediate!
