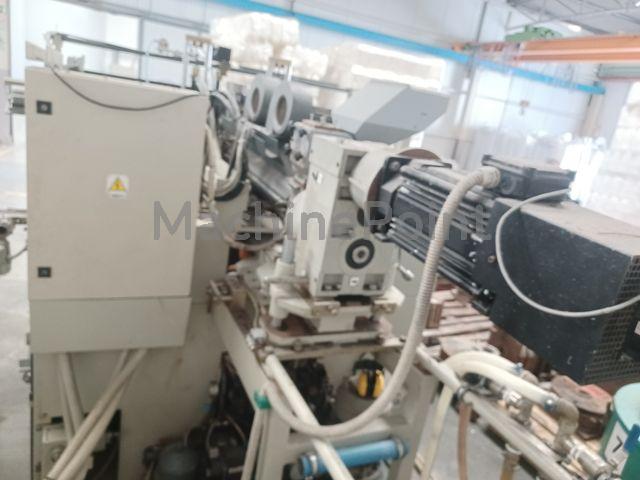

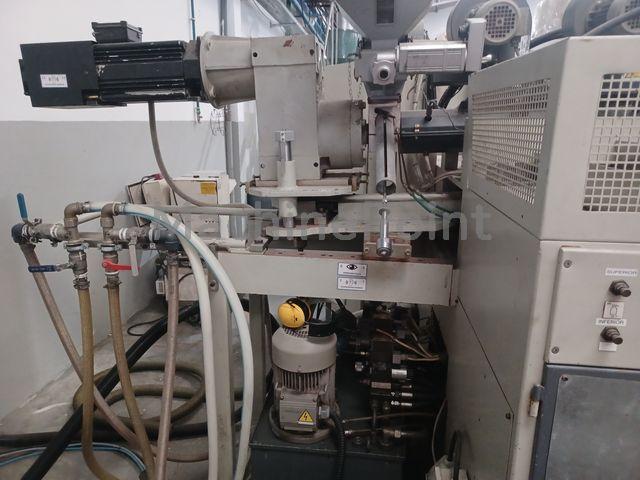

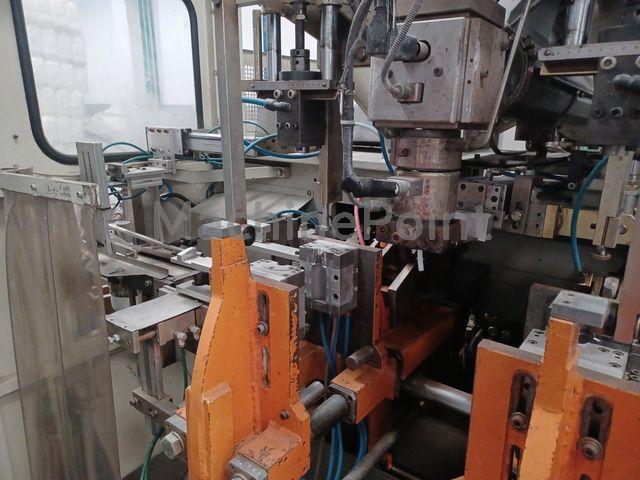

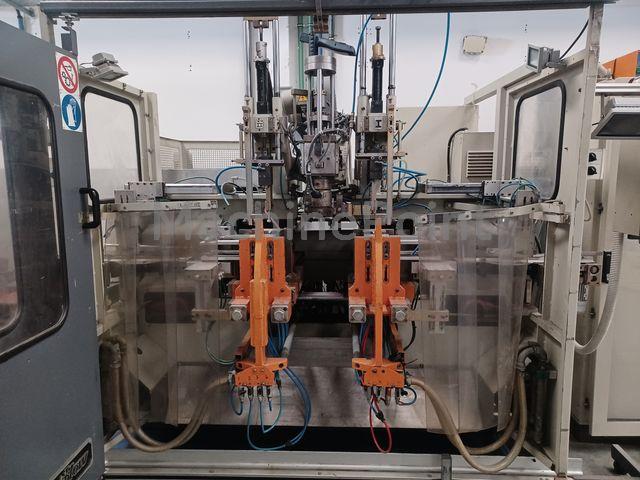

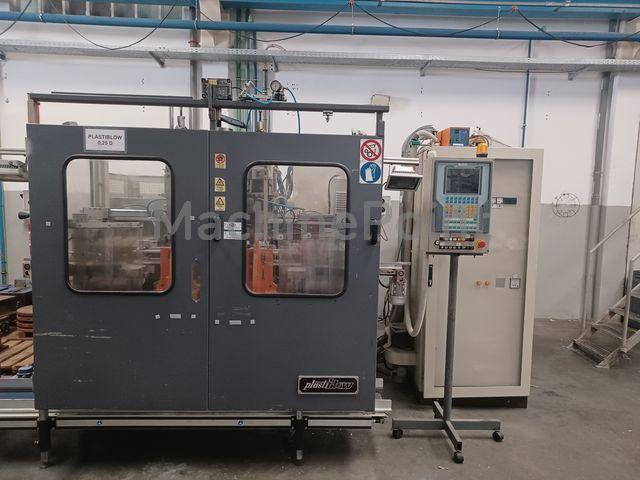

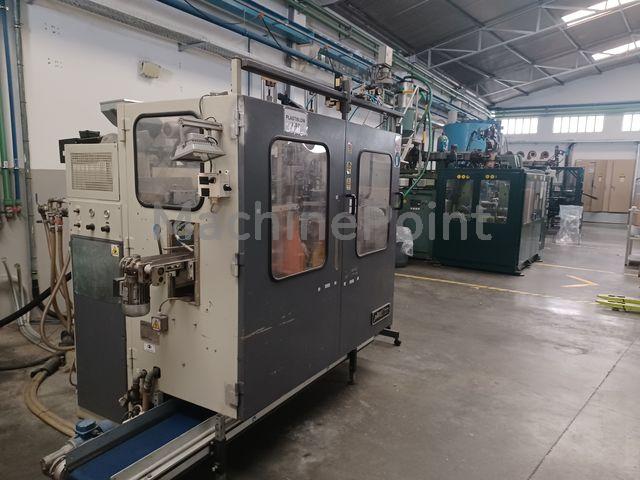

Used PLASTIBLOW PB250DE42/24 of 1999 for sale

Included: Blowmoulding machine (without moulds, blowpins) pin and die can be included Blender Grinder

Clamping force 30 KN Coex 2 = extruder 50/24 mm & 25/20 mm Automatic deflashing unit Leak tester NO Average consumption 12 kW NOTE: The electronic part was rebuilt with Siemens PLC and touch control panel. The thickness variation with its hydraulic circuit is present, the control electronics are missing. A Moog controller can easily be fitted

Extrusion Blow Molding machine Plastiblow PB10-D XXL - Hybrid machine Year 2007 Extruder 100/25: Screw diameter: 100 mm L / D: 25 Motor power: 72 kW Heating power: 20.4 kW Heating zones: 5 Cooling Fans: 5 Screw plasticizing capacity with PE: 220 kg / h Blowing unit: Maximum volume hollow body: 10,000 cc Maximum blow pin pressure: 18 kN Maximum mold clamping force: 220 kN Station stroke: 800 mm Dry cycle time: 2.8 s Maximum dimensions of the mold: Height: 470 mm Depth: 790 mm Width: 2 x 135 mm Opening stroke: 270 mm Weight: 250 kg Compressed air: Average consumption: 4500 Nl / min Pressure: 6-7 bar Power Consumption: Total installed power: 150 kW Supply voltage (± 10%): 400 V Current : 285 A Frequency (± 1%) Hz 50 6x head with 110 mm CD included PLC and touch screen need refurbishment

Deflashing unit + leak tester Opening daylight 230 mm

Double head 125 mm CD year 2014 Spare double head 100 mm CD included
