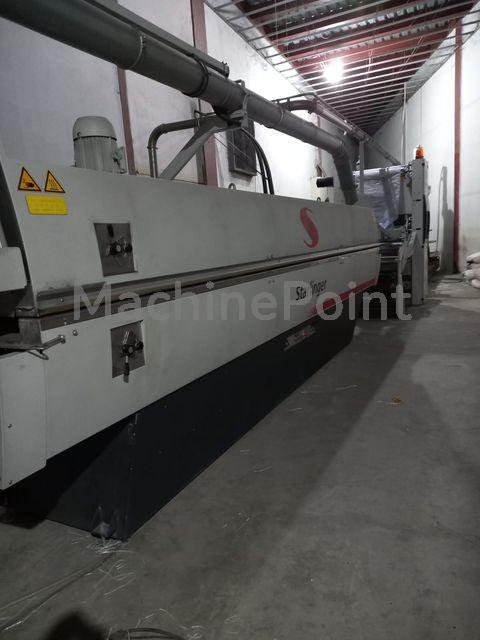

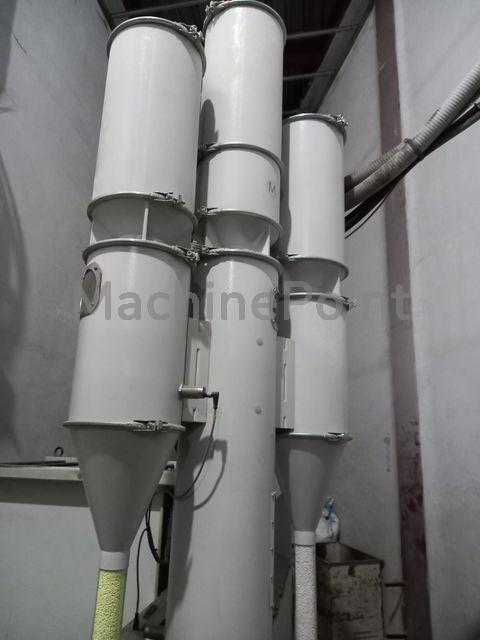

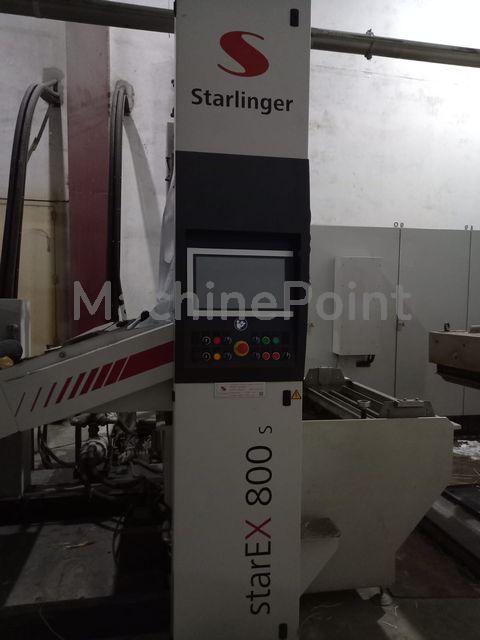

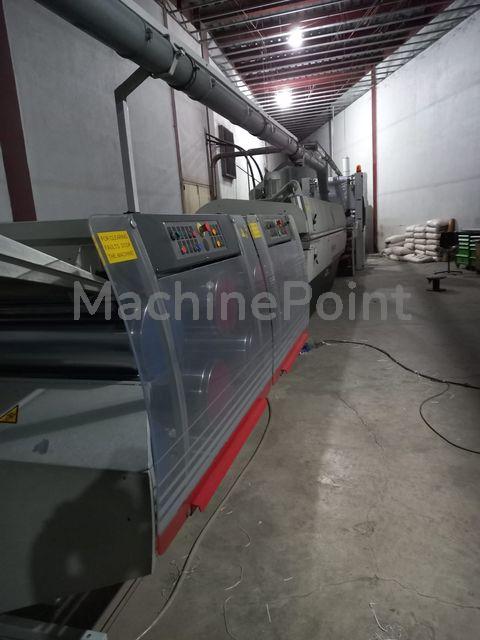

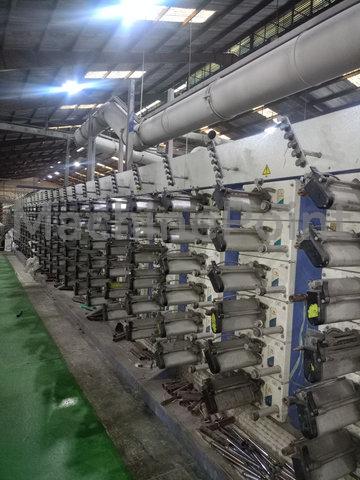

Second hand STARLINGER StarEX 800 S + stacoTAPE 200XE + Looms (2018) sold

STARLINGER recoSTAR Dynamic 85 C-VAC year 2023

Working hours: 5188 (in June 2025) Fimic Laser Filter – RAS 500 included Material to be processed : Film of LDPE, LLDPE and HDPE including agricultural film, MFI (190/2,16)=0,8 - 2g/10min washed post-consumer waste, clean (without PVC and paper, abrasive or metallic contamination), unprinted-slightly printed and up to 100% surface printed, dry (max 5% surface moisture). Material proportioned to adequate shape for conveyor belt : Pre-cut with 30-50mm screen. The line consists of the following components : Conveyor belt CB800D including metal detector Masterbatch dosing unit MBD150 P including feeding and control SMART feeder SF1100 (90kW) including temperature control, shock sensor & intake slider Dynamic automation package DAP1100 (90kW) Air flushing for SMART feeder Dust and steam exhaust unit for SMART feeder Extruder EXD85 (90kW) including melt pressure sensor, melt temperature sensor and air conditioning for electrical components and control panel. Color touch panel (15" display, recipe management) Speed controlled extruder drive (90kW) 2 adaptors with covers including heating and 2 pressure transducer Cascade vacuum unit C-VAC85CC (closed with water circuit) Waterring pelletizing WRP180CC Additional die plate WRP 180CC Automatic change of pelletizing speed Double filling station 1000L with piping & conveyor system Throughput measurement for filling station New screw as spare part.

STARLINGER starEX 800 + stacoFIL 200XE year 2013

The starEX 800 is especially designed for the extrusion of PP or HDPE/LLDPE tapes for woven bags, FIBC fabrics, geo- and agrotextiles, carpet backing, and various other technical applications. Granulate feeding and volumetric. 3-component dosing/mixing unit Film take-off with two drives and vibration drying unit Automatic filter Static mixer Flat die with reversible die lip smartTRONIC control unit Water quench tank with heat exchanger Tape slitting unit Holding unit Edge trim recycling and refeeding system Stretching section with 6 godets, incl. heating unit Vacuum tape extraction system incl. collecting container Hot air oven, length 5.8 m Cross winding machine stacoFIL 200XE stacoFIL 200XE 3-phase inverter control for the drive motor Yarn tension control Automatic motor switch-off Quick-clamping device Yarn catching device High precision traverse mechanism Tape guide Supporting frame

STARLINGER RX 6.0 year 2015

Specially designed to weave endless tubular or flat cloth out of PP, HDPE or PET tapes. (Price shown is for a single unit, 10 units available for sale.) Working width, double flat 300-850 mm At reduced pick rate 300-390 mm 700-850 mm No. of tapes 576 Shuttle/ machine 6 pcs Weft insertion with 576 positions(max.) 1100 ppm Weft insertion with 720 positions(max.) 1100 ppm Reduced pick rate 880 ppm Weft density 20 – 55 /10 cm Revolutions 183 min -1 Warp/weft core inside diameter 35 +0,2/-0 mm Warp weft length of core 218 +0/-1 mm Warp bobbin diameter (max.) 180 mm Weft bobbin diameter (max.) 110 mm Winding roll diameter (max.) 1200 mm The basic machine includes: Basic machine with heddle wire – 576 positions Two creels (cores are not included) Electrically controlled warp infeed system Contrast sensor for monitoring weft tape end (black tapes require light cores) Warp break detecting system Weft break detecting system Memory stop for weft change Central drive system with frequency controlled motor Automatic weft cramming device Three manual control units Six shuttles and weft insertion system + intermediate bow Ceramic insertion finger Cloth haul-off Loom controller Surface winder Max. cloth width 300 -850 mm Max. roll diameter 1200 mm Inside diameter of core 100,5 mm Outside diameter of core 124 mm Bobbin storage above the intake

STARLINGER Ad*starKON SX+120 year 2014

Sack width, double flat 300 – 600 mm Sack length 430 – 910 mm Bottom width (BOW > 160 mm only for open mouth sacks) 80 – 180 mm Bottom center distance 350 - 750 mm Main fabric cutting length 530 – 1200 mm Production speed max. 110 1+2) sacks/min Mechanical speed 120 sacks/min Fabric weight 55 – 80 g/m² Coating weight of the outer sides (15% PE, 85% PP) 17 – 30 g/m² 1) depending on fabric quality and bottom width (BOW): 80 – 110 mm: max. 110 bags/min 130 – 140 mm: max. 95 bags/min 150 – 160 mm: max. 90 bags/min 170 – 180 mm: max. 85 bags/min Unwinding station for main fabric Outside diameter of the main fabric roll max. 1500 mm At the beginning of the operation min. 1000 mm Inside diameter of unwinding core (8")203 mm Fabric edge offset max. 15 mm Automatic edge guiding system (correction distance ± 95 mm) and pneumatic brake Roll monitoring system Cutting unit Hole-punching unit Continuous transport section Double unwinding unit for patches Outside diameter of the fabric roll max. 1000 mm At the beginning of the operation min. 800 mm Inside diameter of unwinding core (8")203 mm Valve patch unit Cutting length 80 - 200 mm Cutting length of pocket valve 80 - 300 mm Fabric width 170 - 330 mm Inside diameter of unwinding core (8")203 mm Stacking unit Central control unit with touchscreen MicroSTAR (Bilateral micro perforation)

STARLINGER Omega 1000 year 2013

Total: 28 units available/ price per 1 unit No. of Units/ Creel Capacity / Winder / Type 9 units / 576 / Standard / Basic 3 units / 576 / Standard / Heavy Duty 6 units / 576 / Wide / Basic 5 units / 720 / Wide / Basic 3 units / 576 / Wide / Heavy Duty 2 units / 576 / Double / Basic Two creels Sensor for weft tape end Prepared for electrically controlled warp tension system Surface winder Warp break detection Weft break detection Loom control Frequency controlled main motor Wear and tear resistant Cloth haul-off Automatic weft cramming Working width flat and doubled= 300 - 850 mm Working width with reduced weft insertion= 300 - 390 mm, 700 - 850 mm Shuttles/loom= 6 pcs. Pick count= 20 – 55 Weft/10 cm Weft insertion max.= 1,000 Weft picks per min Reduced weft insertion= 800 Weft picks per min Speed= 166.6 rpm Nominal power main motor 3 kW Pirn / Weft bobbin Inside diameter cores= 35 mm Length of core= 218 mm Max diameter pirn= 115 mm Winding length= 200 mm Warp bobbin Inside diameter cores= 35 mm Length of core 218= mm Max. diameter warp bobbin= 180 mm Winding length= 200 mm Amount of tapes= 576 pcs. Creel positions= 576 pcs Batch winder for folding device (optional) Fabric width= 1,700 mm Max. roll diameter= 1,000 mm Torque with motor stopped= 2.5 Nm

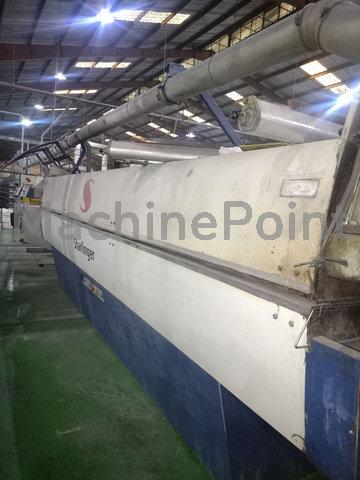

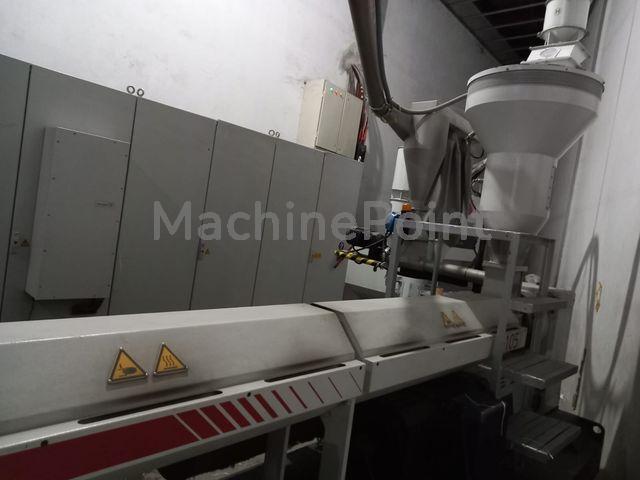

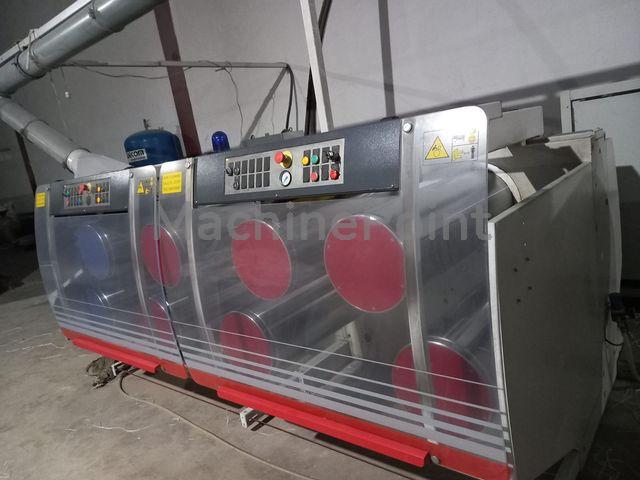

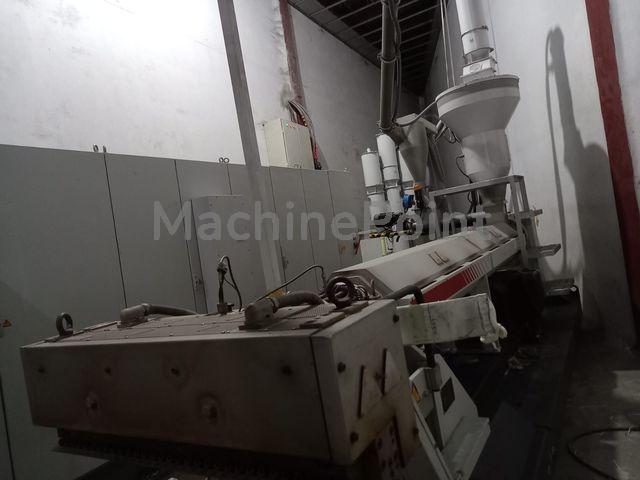

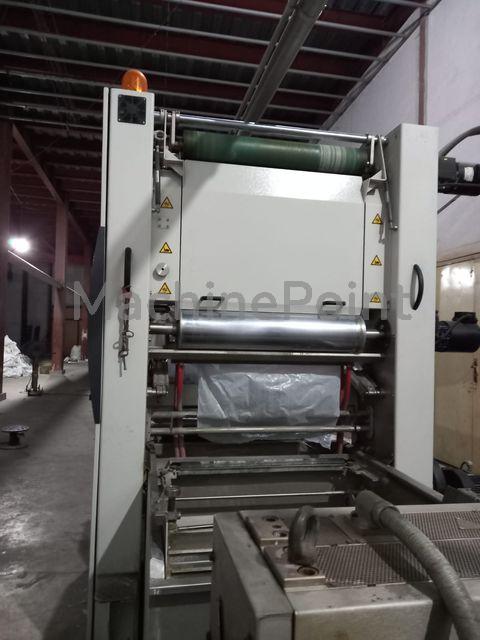

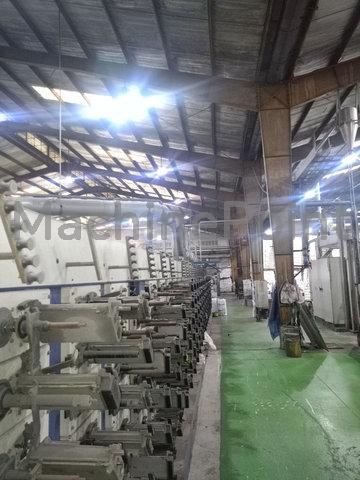

Used Extrusion line for tapes (woven sacs): STARLINGER StarEX 800 S + stacoTAPE 200XE + Looms of 2018

Similar Products:

Data Sheet of Used STARLINGER StarEX 800 S + stacoTAPE 200XE + Looms
