Used WELEX of 2001 for sale

1000kg/h PET 800kg/h PP Vertical Calendar Rolls diameter: 300mm,600mm, 600mm 4 components Sismetric Dosing unit Non stop process 4 winders 2 + 2 Thickness control NDS-R/A gauge Una-Dyn Cristalizer XTER-3000

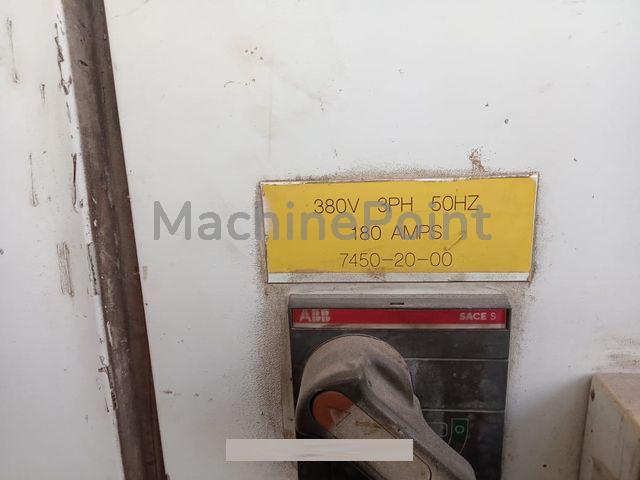

90 mm World Standard Sheet Extrusion Line System with V-PET Capability Screw length: 2700 mm, L/D: 30 HP DC Drive Crystallizer and dryer are included. Output: HIPS: 400 kg/h PET: 400 kg/h PP: 300 kg/H Film Thickness PET: 180-1000 micron PP: 250-1000 micron Utility requirements: Electrical: 380V/ 3 PH/ 50 HZ Water: 25 C / 4 bar/ 3 C rise :Air: 6 bar

PP/PS flat sheet extruder line Output:450 kg PP/h and 700 kg PS/h Layer distribution: A Sheet thickness: 500 - 1.200 micron Sheet with up to 900 mm (gross) Extruder D, Welex 1990 Main extruder Screw 4½" Mark II L/D:30 With screen changer and melt pump With equipment for foam (screw and booster) Extruder D1, Welex 1990 Co extruder 1 Screw size: 2 1/2" L/D: 30 With screen changer and melt pump Have been stopped since 01-08-2004 Various electric parts are missing Die 1.000 mm with extern deckling 1990 Roll stack, Welex 1901 300/600/600 mm vertical roll stack Roll stack have been rebuild with separate drives in 2011 Thickness measurement system, Welex 1991 Pull roll station 1992 Pull roll station have been rebuild with separate drives in 2011 Winder station 1991 Spare screws, barrels and dies Used Ext D, Foam screw Used Ext D cylinder Used Ext D1, 3 zone Screw Used 550 mm die Used 630 mm die Used 660 mm die Used 750 mm die Used 710 mm foam die

Number of layers 3 ABA (5-10%/90-80%/5-10%) AB / BA / B (quick change ) PET 700 Kg/h PP 350 Kg/h PS 450 Kg/h Individual Output Main extruder B=560 Kg/h Co-extruder A=140 Kg/h Main extruder Dia. 4.5" (ø 120mm) include -continues screen changer, gear pump, venting with vacuum pump Co-Extruder Diam. 2.5" (ø 65mm) include - continues screen changer, gear pump Flat die EDI (coat hanger) width 1350 mm with external deckling Cooling and take off unit : Vertical roll stack configuration C0 Dia. 300mm C1&2 Dia.450 mm AC driven with Silent chain Haul off AC driven Full close loop control cooling water Anti-Block unit - Both side of film Edge trim Blade configuration Winding unit: 1. Small rolls up to Dia. 600mm up to 3 web winding 3" or 6" core - carton cores 2. Jumbo rolls up to Dia. 1500mm up to 2 web winding A frame trolleys with hydraulic MAIR system. 3" or 6" core expansion shafts The line has a Lamination system to laminate PE in order to produce multi-layer sheet PET//PE or PET//EVOH/PE The lamination technology using IR preheating (dry limitation) : Double unwinding unit on platform IR heating system for PE Corona treatment system Lamination calendar Dosing: Batch type gravimetric dosing unit 4 channels for main Ex. Each Extruder have Gravimetric coloring and additives screw dosage 1 crystallizer NOVOTAC (not IR) 1 dryer fit for throw output of main Extruder DHD system (year 2009) (not IR) 1 dryer fit for throw output of Co-Extruder DHD system (not IR) Installed power : Switch for the Main Ex 800A Switch for the Main Co. Ex 400A Switch for the Main dryer 175A Switch for the crystallizer 160A Switch for the Co.Ex dryer 120A Manuals English

Linea for HIPS cups Main extruder Welex 150mm - 30:1 (with volumetric melt pump) Secundary extruder for GGPS Welex 65mm - 24 :1 Die head 1440 mm Calander Welex 3 cylinders diam. 450-600-600 x 1525mm Thermoforming IRWING Maximum Sheet Width 1400 mm Maximum Solid Sheet Gauge 4 mm Maximum Mold Size 1320x 1320 mm Maximum Depth of Draw 190,5 mm Maximum Former Tonnage 190 Top Platen Travel 203 mm Bottom Platen Travel 165 mm Mold for cup 200 cc, diam 70 mm, 168 cavities in the forming area and 42 in the cutting Output 220.000 cups/hour
