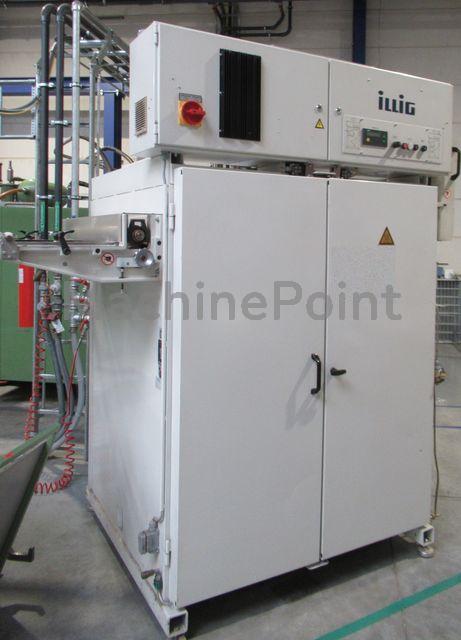

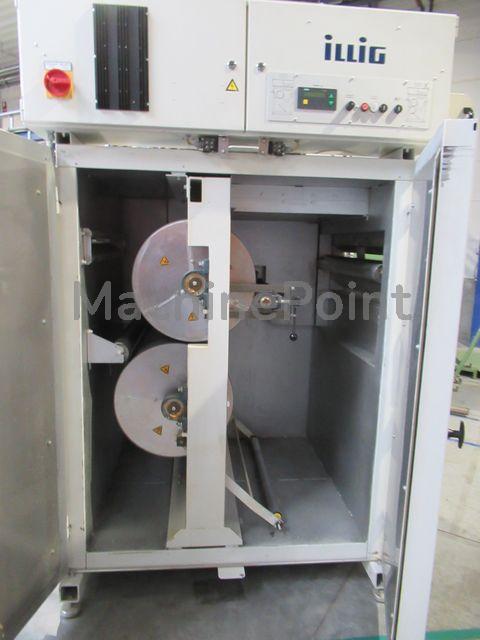

Used ILLIG VHW 90/2 of 1999 for sale

Forming area min. 300x100 mm Forming height above/below sheet : 100/30 mm Sheet width: max./min. 550/340 mm Max. number of cycles: 18/minute depending on materials Pneumatic system Plug assist Vertical adjustment of the lower part of the forming table Stacking unit with unloading

Thermoformer : Forming area min-max : 100x300 - 350x500mm Height of forming above working level max : 100mm Height of forming below working level max : 30mm Width of material min-max : 340-540mm Connected load of upper heating : 9.8 kW Length of upper heating : 875mm Connected load of lower heating : 5.6 kW Length of lower heating : 500mm Stroke of lower frame : 45mm Diameter of material roll : 600mm Cutting : Max. cutting area : 350x 500 mm Cutting pressure : 250 kN Min./max. height of cutting line : 80/110 mm Connected load of heater for steel rule die : 4kW Complete machine (Thermoformer and cutting) Number of cycles max. : 20 Total connected load with upper heating : 13.7kW Total connected load with upper and lower heating : 19.3kW Total connected load with upper and lower heating and heating of steel rule die : 23.3 kW Total air consumption/cycle with max. stroke length : 45 NL Operating pressure min. : 6 bar Recommended actual capacity of compressor : 1,200 NL/min. Roll diameter of skeletal web max. : 600 mm Working level above floor : 1,100mm Total width incl. control cabinet : 1,930mm Total length incl. material roll stand : 6,330 mm Total height : 2,050 mm Weight of machine 3000 kg This machine has a Motoman robot installed that was used to collect the parts produced and stack them on a conveyor belt. This was important due to the size of the parts that has been produced (too small) The machine has 193.111 working hours but had a big inspection and a lot of critical parts replaced by Illig in 2022.

Max. sheet length: 1000mm Max. sheet width: 700mm Forming area: 960x660mm Max. negative/positive forming depth: 300mm Automatic bubbling controlled by photocell Pneumatically-driven top piston, motorized remote stroke adjustment, standard changeover program, digital speed adjustment (7 levels) via valve cascade, automatic clamping included 4 reinforced fans at 22 m3/min 4-nozzle water mist cooling system BE P loading and unloading unit for working from the sheet stack Sheet magazine Loading device with quick-fit suction sheet holder Double grip control Automatic adjustment of transport width and length Sheet magazine with automatic plate centering device by motorized columns, with settings backup, changeover program, motorized sheet strippers. Upper and lower preheating on loading unit with possibility of mounting a thermoregulated holding frame for working with a sealed box with pneumatic sheet support, "Joystick" upper preheating with 5-zone control, lower preheating with 3-zone isothermal control Vacuum pump for pick-up of grained sheets Working hours : 5718 Available for sale too (not included in the price) : Horizontal band saw Hema HTR 600 year 2001

Min-max material width: 150-495mm Min-max feed: 50-280mm Upper heating power: 9.5kW Lower heating power: 6.9 kW Installed power: 18.3 kW

Automatic roll-fed machine for forming/punching operation Included Vacuum system for sheet entrance which remove the chances contamination Inline grinder with conveying system up to 6m vertical + 20m horizontal distance Product takeout system which has possibility to connect with packing system
