Used CINCINNATI EXTRUSION CM45 of 1987 for sale

1987 | Ref.: 300047677

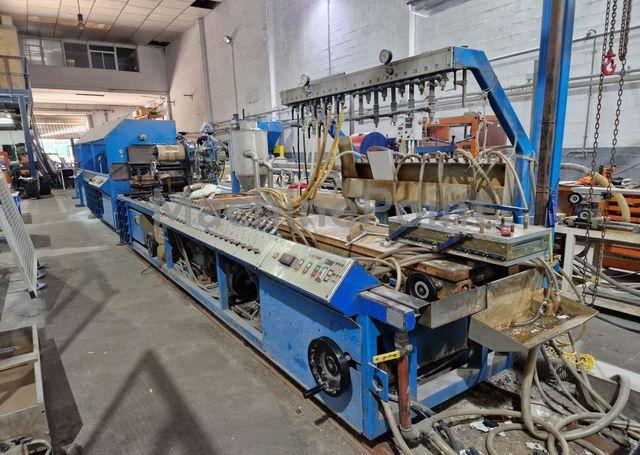

Extrusion line for PVC profiles CINCINNATI EXTRUSION, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.

Data Sheet of Used CINCINNATI EXTRUSION CM45

Ref.: 300047677

Year: 1987

Brand: CINCINNATI EXTRUSION

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?
CINCINNATI EXTRUSION - CM45 - Used machine
CINCINNATI EXTRUSION - CM45 - Used machine
CINCINNATI EXTRUSION - CM45 - Used machine
CINCINNATI EXTRUSION - CM45 - Used machine
CINCINNATI EXTRUSION - CM45 - Used machine

Technical Specifications:

  • Profile Width (Max): 250 mm
  • Output Capacity: 100 kg/h

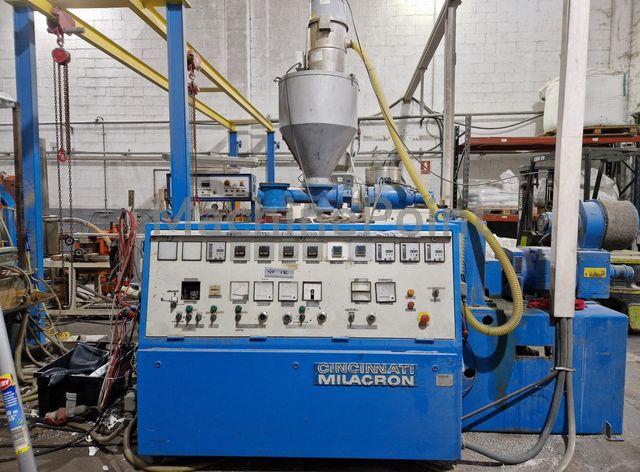

  • · EXTRUDER: CINCINNATI CM45
  • Screw Diameter: 45 mm
  • Number Of Screws: 2
  • Main Drive Power: 14 kW
  • · CALIBRATION TABLE: CINCINNATI
  • Year: 1987
  • Number Of Pumps: 2
  • Pumps Power: 5 kW

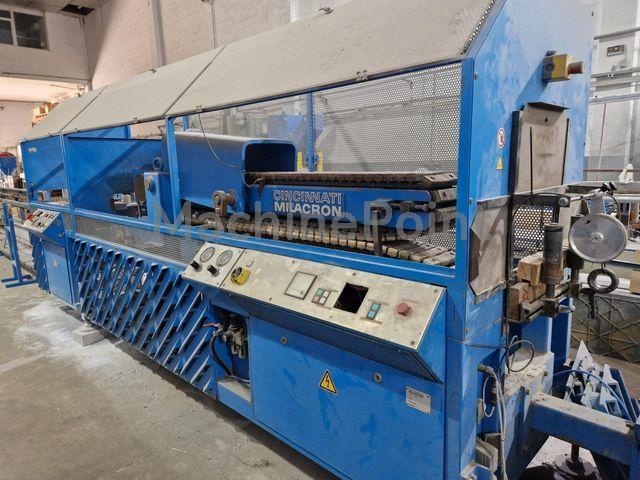

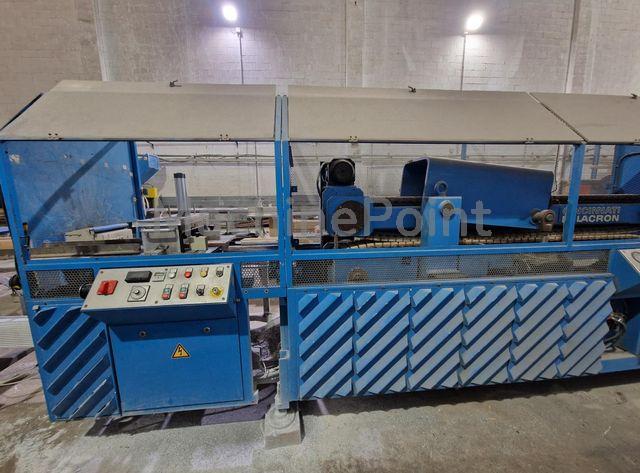

  • · CATERPILLAR HAUL OFF: CINCINNATI
  • Year: 1987
  • Belt Contact: 1500 mm
  • Belt Width: 250 mm
  • · SAW: CINCINNATI
  • Saw Type: Planetary

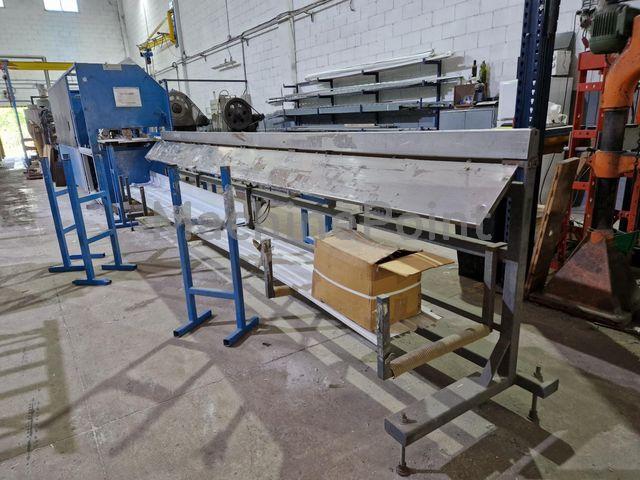

  • · STACKING TABLE: CINCINNATI
  • Year: 1987

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition

Availability: Immediate
