Used ELECSTER EA5000+UHT4200 of 2005 for sale

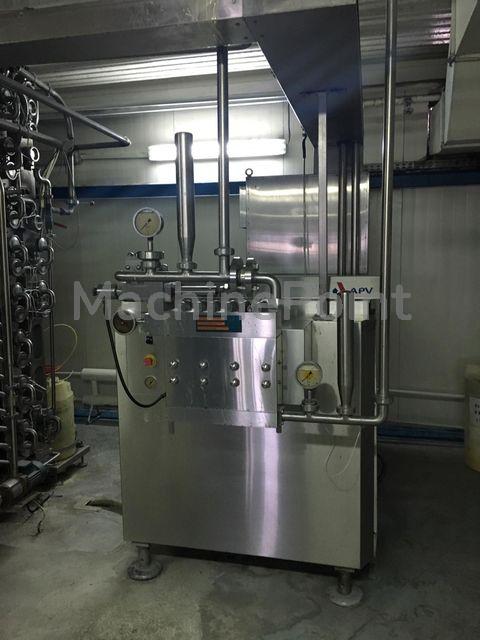

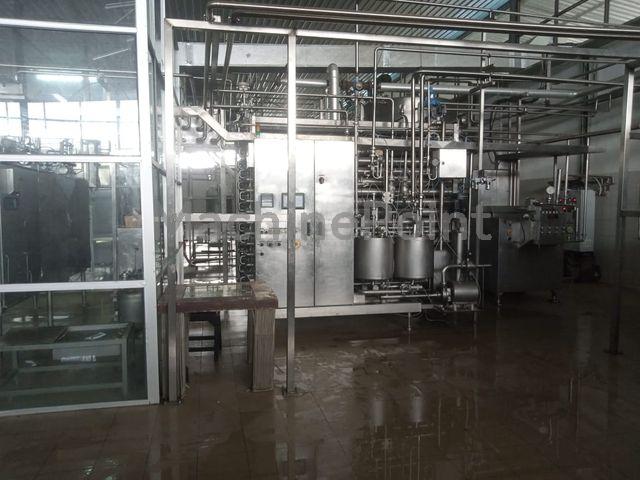

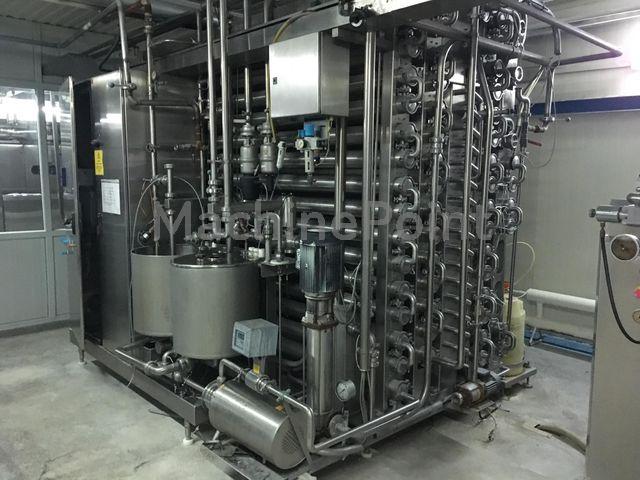

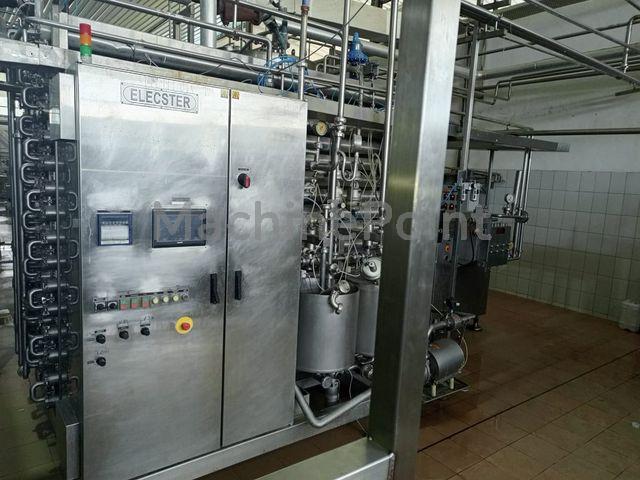

COMPLETE ASEPTIC LINE ELECSTER, YoM 2012, refurbished in 2017. ASEPTIC POUCH FILLING MACHINE ELECSTER EA-3600 Package size 0,2 - 1 L. (adjsuttable) Capacity - 3600 b/h (0.25L), 3000 b/h (1.0L) Width 320 mm Working hours 24900 h. UHT PASTEURIZER ELECSTER 4200 Nominal capacity (adjustable): 1500-4200 l/h Product pump, P1 Hilge Hygiana S-I/5, 6,3 m3/h, 81m, 4 kW Water circulation pumps, P3 CRN 5-18 Grundfoss P6 Grundfoss CH4-40, Balancing equipment: Balancing tank (100 l./tank) - 2pcs Operator's panel E1011 Steam regulating valve Samson V22 Frame 3241-02-GG25, kvs10 CIP SYSTEM: Pumps duodos 10PP PVAF CIP-concentrate tank 100 l./tank HOMOGENIZER APV Capacity:4200 l./h Homogenizer P2 Rannie 2-10.201 Homogenizer P2 Ser. Rannie J2-10.201, 45kW Type RANNIE R37-45.81 Max.P. 250Bar ABB Motor: K21R225M4VLKL, B3, 45 kW, 1470 rpm, 50 Hz, 400V, 81 A ABB Motor,hydraulic:M2VAA71A4, 380-415(220-249) V, 50Hz, 1370rpm, 0,25kW ABB Motor oil pump:M2VAA71B4, 380-420 V(220-240), 50Hz, 1410rpm, 0,37kW Homogenizer hydraulic valve Magnet-Schultz, Memmingen

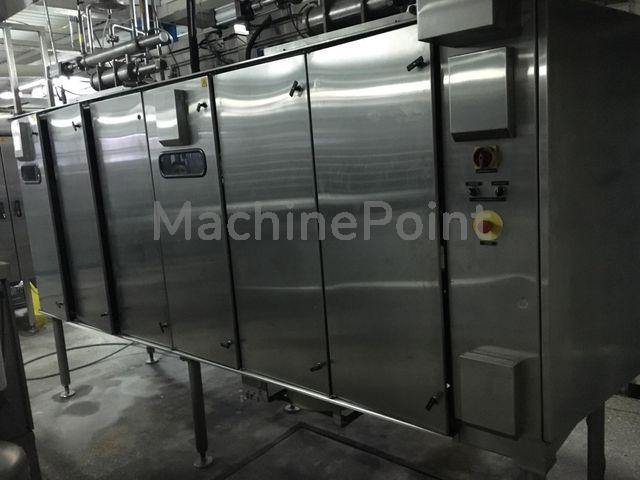

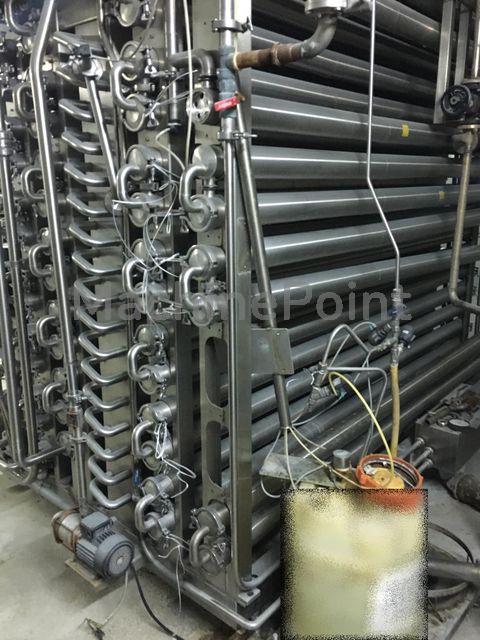

Aseptic Pouch Filling Machine ELECSTER EA-5000 LL Shelf life up to 3 months. Package size 0,2 - 1 L. Includes Aseptic system UHT EL-4200/4000 SP from 2008 - Heating source indirect steam, - Tubular system, Max temp 140, 3-4 sec. - Aseptic capacity 4200 l/h, - Control panel, - Homogenizer APV R37-45 Pouch Filling Machine EA-5000 from 2005 - Pouch size 0.2-1 L. - Capacity 5000 uph The equipment is still installed.

Aseptic Pouch Filling Machine ELECSTER EA-5000 Shelf life up to 3 months. Package size 0,2 - 1 L. Includes Aseptic system UHT EL-4200/4000 SP from 2008 - Heating source indirect steam, - Tubular system, Max temp 140, 3-4 sec. - Aseptic capacity 4200 l/h, - Control panel, - Homogenizer. Pouch Filling Machine EA-5000 from 2005 - Pouch size 0.2-1 L. - Capacity 5000 uph The equipment is still installed.

Fresh milk bag filling machine Elecster FP-5000 Manufacturer: Elecster Oyj Year of manufacture: 2004 Packing capacity: 2 500 bags/hour/filling head (2 filling heads) Pouch sizes: 0,25l., 0,5l and 1l Film width: 320 mm The machine is in good condition, maintained, regularly serviced. Included frequently used spare parts and documentation. Still installed.

Bag milk filling machine Elecster FP 2500, year 2012 Pouch sizes: 0.25 l … 1 l LDPE Film width: 320mm Product shelf life: 7 days Electric power: 7 kVA, 400/230 V, 50 Hz Consumption of air: 700 Nl/min, 6…7 bar Width of film web: 420mm Max.roll diam.: 350mm Max roll.width: 420mm Date stamping device Elecster Oyj Vertical sealing device continuously heated 300W, 36V, Ms Horizontal sealing device continuously heated 300W, 36V, Ms Counter sealing device continuously heated: 300W, 36V, A1 Filling tube assembly: Filling valve: Gemü 687/15/D/6034131-1507 Diaphragm 600/25/M13, Membrane 695/25/P14 The machine has been dismantled in the beginning of 2015!
