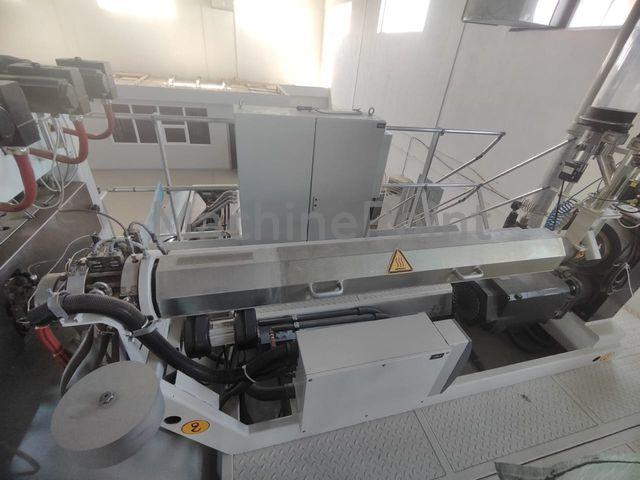

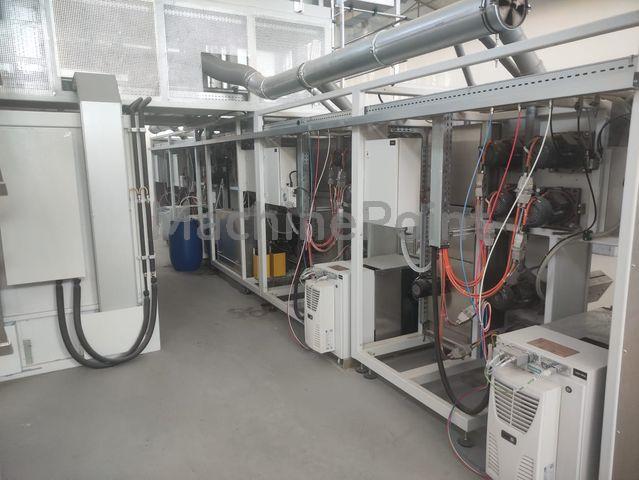

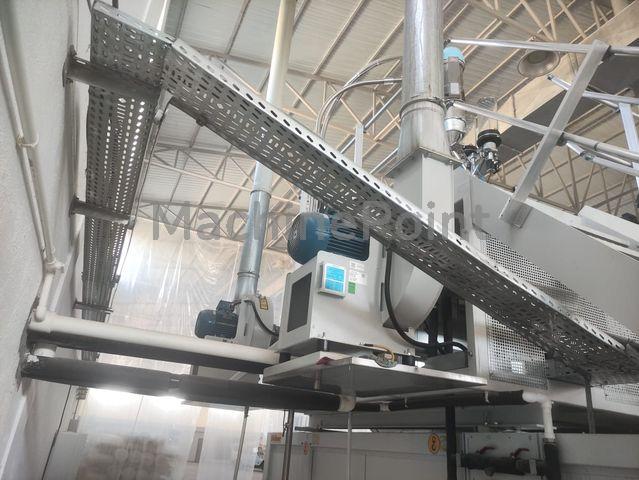

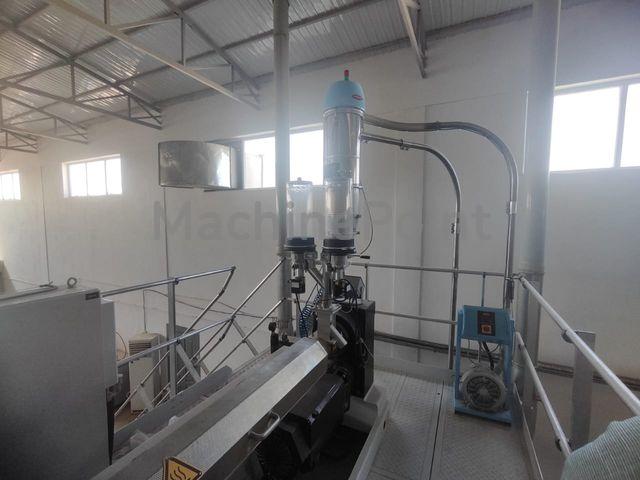

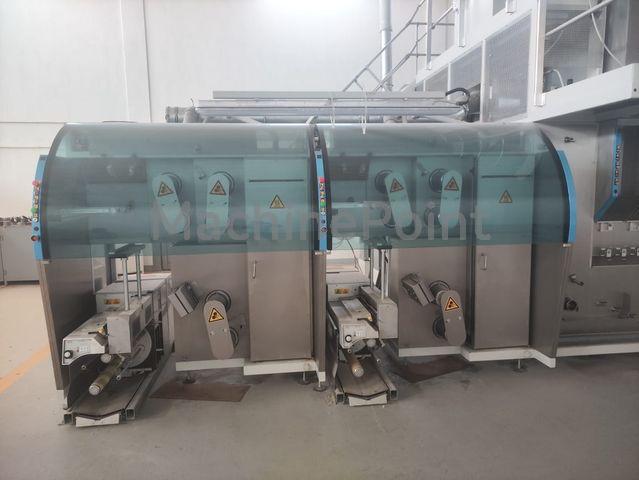

Used SML Austrofil HT4x2 - NSpHY of 2021 for sale

3 Coex Castfilm for CPP, stretch wrap film and barrier films Maximum film width which can be produced: - stretch wrap folie 5 x 500 mm - CPP 2650 mm - CPE 2800 mm Thickness range: - CPP 20 - 35 µm - Stretch film 15 - 30 µm - LLDPE (75%) + PP (25%) 120 - 145 µm Max. mechanical speed 450 m/min Pneumatic working pressure 5-10 bar Air consumption approx. 60 - 300 Nm3/h Necessary cooling capacity approx. 489 kW Control System SML - CS B&R System 2000 Extruder A SML - EH1 - 150/33 Screw diameter 150 mm Screw length 33 D Temperature control system: - Water cooled material inlet - Heated feeding zone Output: - PP for CCP max. 650 kg/h - LLDPE for CCP max. 800 kg/h - LLDPE (75%) + PP (25%) max. 450 kg/h DC motor with elastic coupling and reduction gear with capacity of 290 kW Bimetal extruder cylinder with 8 heating / cooling zones Melt pressure feeler at cylinder end Automatic screen belt filter SML - SB/150 max. output: 1000 kg/H Extruder B / C SML - EH - 75 / 33 Screw diameter 75 mm Screw length 33 D Temperature control system: - Water cooled material inlet - Heated feeding zone Output: - PP for CCP max. 200 kg/h - LLDPE for CCP max. 220 kg/h - LLDPE (75%) + PP (25%) max. 120 kg/h DC motor with elastic coupling and reduction gear with capacity of 90 kW Bimetal extruder cylinder with 4 heating / cooling zones Melt pressure feeler at cylinder end Automatic screen belt filter SML - SB/90 max. output: 600 kg/H 3 Layer Feedblock FG/SP H Automatic flat die H 3000 - SEE CLOEREN manual Vacuumbox width 3000 mm (assembled at the flat die) Softbox width 3200 mm /assembled at the chill unit) Edge Pinning Device with 2 charging electrodes, 2 air jets, a pressure regulator, a high voltage transformer and 2 adjusting support for electrodes and air jets Cooling and Take- Off Unit SML - CS- 350 / 3200 Cooling Roller C0: - width 3100 mm - diameter 1000 mm - roller surface electrically dulled Cooling Roller C2: - width 3100 mm - diameter 400 mm - roller surface hard chromium plated, polished Pressing / cleaning roll width: 3100 mm AC servomotors for Roller C1 and C2 Longitudinal and Heights adjustment motors Roller temperature control with 2 cooling circuits with injector, pumps and a connection to external water circuit Thickness Measuring Unit to control the automatic die: SEE EUROTHERM instructions Krypton 85 / 1250 mCi sensor with frame in O- form and operating panel with monitor Edge Trim Device 1: - 2 adjusting support for sideways adjustement - 2 blade holder for 2 blades - 2 guiding rollers - 2 suction pockets Corona Treatment System - SEE SOFTAL instructions WINDER Serie Effizient 350 - 2800 winding mechanical speed: 35 - 350 (450) m/min winding width 2000 mm oder 4 x 500 mm width of contact roller 2900 mm Film thickness 15 - 150 µm Lay on pressure contact roller 30 - 500 N Winding Tension 10 - 100 N/m Bobbin diameter at 6" shaft: max. 800 mm (optional 980 mm) Bobbin diameter at 3" shaft: max. 350 mm Cutterstand for edge, part bobbins and bleed trimiming Main frame with web tension measuring roller, 2 fix point rollers, dancer roller, contact roller and 2 winding stations Cross cutting unit Oscillation unit Shaft handling system with portal robot Automatic roll handling system with bobbin carriage and turret unit for winding shaft Corefeeder 3" from 1800 to 2800 mm Electrostatic decharging bar with transformer Recycling Plant EREMA - SEE EREMA instructions

Layer distribution for stretch wrap film A / B / C / B / D Mechanical speed max. 650 m/min Range of film thickness for stretch wrap film 9 - 55 µm Final film width 4 x 500 mm Necessary cooling capacity approx. 647 kW (556.000 kcal/h 12/17 °C) Control unit SML - Control system PLC : B&R, Servo Motors : Lenze Material feeding and dosing by DOTECO Each extruder has a gravimetric dosing unit with 3 components Screw Diameters: L/D: Ext A&D-60/28 / Ext- B&C-90/33 Extruder A with Hydraulic screen changer by KREYENBORG Screw diameter 60 mm Extruder output LLDPE max. 190 kg/h AC – main drive 58 kW Extruder B with Hydraulic screen changer by KREYENBORG Screw diameter 90 mm Extruder output LLDPE max. 600 kg/h AC – main drive 160 kW Extruder C with Hydraulic screen changer by KREYENBORG Screw diameter 90 mm Extruder output LLDPE max. 600 kg/h AC – main drive 60 kW Extruder D with Hydraulic screen changer by KREYENBORG Screw diameter 60 mm Extruder output LLDPE max. 190 kg/h AC – main drive 58 kW Feedblock and flat die 5 layer feedblock by CLOEREN Flat die by CLOEREN Vacuum box Type Bivac (Bi-vacuum) box assembled at the flat die , width 2750 mm Electrostatic / pneumatic edge pinning device assembled at flat die by ELTEX Charging electrode 2 (with 3 fingers each) High voltage transformer (max. 30kV) 1 Device for the positioning of the electrodes 2 Pneumatic edge pinning device 2 Cooling and take-off unit Cooling roller C1 Width 2700mm, diameter 1000 mm ,roller surface electrically dulled Cooling roller C2 Width 2700 mm ,diameter 400 mm ,roller surface chromium plated, Thickness measuring by ELECTRONIC SYSTEMS to control the automatic die Weight / Thickness sensor Infrared Operator panel with monitor Edge trim suction by TRIA Suction calculated for line speed max. 650 m/min ,film thickness 9 - 55 µm 2 Suction pipes for edge trim before winder (edge strip width max. 150 - 200 mm) 4 Suction pipes for trims winder 4 (strip width max. 15 mm) Oscillating frame ,width 2700mm ,oscillating distance +/- 50 mm Recycling unit Type: EREMA LIVE 1108 T/450 Extruder output max. 450 kg/h Winder by SML TURRET WINDER Type W4000 /Stretch/2700/3“ Final film width max. 4 x 500 mm Mechanical speed max. 650 m/min Winding diameter with 3“ winding cores max. 400 mm Change time with 3“ core magazine: 15 s Cutting unit for edge trim and part bobbin cut Main frame with web tension measuring roller, contact rollers, auxiliary contact rollers and winding stations Cross-cutting unit Bobbin and core handling system 3“, 2“ Control unit SML -Betriebssystem Without chiller and compressor

SML winder for CPP/CPE/CAST-PET/barrier film Processed materials: PP, PS, ABS Film thickness range: 300-1500 my Rolls width 2000 mm; useful width 1750 mm Max reel diam 1000 mm Winding shafts: 76 mm; 2 pneumatic winding shafts 76 mm included Max. mech. speed: 400 m/min Winding tension: 75-400 N/m Contact pressure: 50-500N/m Winding direction: top outside Roll handling: semi automatic Included: Altek lifting unit

Mechanical speed max. 650 m/min Range of film thickness for stretch wrap film 6 - 35 µm Final film width max. 3 x 500 mm, 3 x 400 mm, 3 x 450 mm Layer distribution for stretch wrap film B / A / D / A / C Cooling water. Necessary cooling capacity approx. 438 kW (376.000 kcal/h 12/17 °C) Control unit SML - Betriebssystem Material feeding and dosing by SYNCRO Each extruder has a gravimetric dosing unit with 3 components Extruder A with manual screen changer type SML - ES - 90/33 Screw diameter 90 mm Extruder output LLDPE max. 800 kg/h AC – maindrive 270 kW Extruder B with manual screen changer Type SML - ES - 60/28 Screw diameter 60 mm Extruder output LLDPE max. 200 kg/h AC – maindrive 60 kW Extruder C with manual screen changer Type SML - ES - 60/28 Screw diameter 60 mm Extruder output LLDPE max. 200 kg/h AC – maindrive 60 kW Extruder D with manual screen changer Type SML - ES - 60/28 Screw diameter 60 mm Extruder output LLDPE max. 200 kg/h AC – maindrive 60 kW Feedblock and flat die 5 layer feedblock by CLOEREN Flat die by CLOEREN Vacuumbox Type Bivac (Bi-vacuum) box width 2000 mm ,assembled at the flat die Electrostatic / pneumatic edge pinning device assembled at flat die by ELTEX 2 Charging electrode 2 (with 3 fingers each) High voltage transformer (max. 30 kV) 2 Device for the positioning of the electrodes 2 Pneumatic edge pinning devices Cooling and take-off unit Type SML - CS/2100/650 Cooling roller C1 width 2100 mm diameter 1200 mm, roller surface electrically dulled Cleaning roller width 2100 mm diameter 180 mm, roller surface rubberized Drives cooling roller C1 AC-Servomotor Longitudinal adjustment on rails by AC – motor ,moveable distance 950 mm Vertical adjustment mechanical adjustment, moveable distance 105 mm Roller temperature control Connection to external cooling water circuit Thickness measuring by SYNCRO to control the automatic die Measuring frame Thickness optical sensor for measuring thickness Operator panel with monitor Edge trim suction and refeed by TRIA Suction calculated for line speed max. 650 m/min , film thickness 8 - 35 µm 2 Suction pipes for edge trim before winder (edge strip width max. 100 mm) 2 Suction pipes for part bobbin cut winder (strip width max. 20 mm) Vertical scraptruder for extruder A 90 mm Refeeding rate of extruder output 250 kg/h (indicated for a film thickness of 18 µm) Antistatic pipe Lenght 1000 mm with Power supply unit for max. 5 antistatic pipes Oscillating frame Type SML-OF/2100 Width 2100 mm Oscillating distance +/- 50 mm Oscillating time adjustable in seconds 2 Guide rollers Winder Type W4000/4S1T/Stretch/2100/3“/3up/650 Final film width 3 x 500 mm, 3 x 450 mm and 3 x 400 mm Mechanical speed max. 650 m/min Winding diameter with 2" and 3" winding cores max. 400 mm min. 82 mm Turn-over unit 4 winding shafts Change time with core magazine 3 inch: 20 s Cutting unit for edge trim and part bobbin cut Main frame with web tension measuring roller, contact roller and turn-over unit Cross-cutting unit Control unit SML - Betriebssystem Electrical-container Rated voltage 3 x 400 / 230 V Frequency 50 Hz Installed capacity: Coextrusion castfilm line 1030 kW Fuse protection : coextrusion castfilm line 1250 A, container illumination 20 A Without chiller and air compressor

Layer distribution for stretch wrap film A / B / C / B / D Mechanical speed max. 650 m/min Range of film thickness for stretch wrap film 6 - 35 µm Final film width 4 x 500 mm Cooling water Necessary cooling capacity approx. 647 kW (556.000 kcal/h 12/17 °C) Control unit SML - Control system Material feeding and dosing by DOTECO Each extruder has a gravimetric dosing unit with 3 components Extruder A with Hydraulic screen changer by KREYENBORG Screw diameter 60 mm Extruder output LLDPE max. 190 kg/h AC – maindrive 58 kW Extruder B with Hydraulic screen changer by KREYENBORG Screw diameter 90 mm Extruder output LLDPE max. 600 kg/h AC – maindrive 160 kW Extruder C with Hydraulic screen changer by KREYENBORG Screw diameter 90 mm Extruder output LLDPE max. 600 kg/h AC – maindrive 60 kW Extruder D with Hydraulic screen changer by KREYENBORG Screw diameter 60 mm Extruder output LLDPE max. 190 kg/h AC – maindrive 58 kW Feedblock and flat die 5 layer feedblock by CLOEREN Flat die by CLOEREN Vacuumbox Type Bivac (Bi-vacuum) box assembled at the flat die , width 2550 mm Electrostatic / pneumatic edge pinning device assembled at flat die by ELTEX Charging electrode 2 (with 3 fingers each) High voltage transformer (max. 30kV) 1 Device for the positioning of the electrodes 2 Pneumatic edge pinning device 2 Cooling and take-off unit Cooling roller C1 Width 2700 mm,diameter 1000 mm ,roller surface electrically dulled Cooling roller C2 Width 2700 mm ,diameter 400 mm ,roller surface chromium plated, Cleaning roller Width 2700 mm ,diameter 210 mm ,roller surface rubberized Nip roller Width 2700 mm ,diameter 170 mm ,roller surface rubberized Longitudinal adjustment on rails by AC – motor ,moveable distance 1000 mm Vertical adjustment on linear bearings by AC – motor ,moveable distance 190 mm Roller temperature control Cooling circuits with injector 2 ,connection to external cooling water circuit Pneumatic edge cooling device Thickness measuring by ELECTRONIC SYSTEMS to control the automatic die Weight / Thickness sensor Infrared Operator panel with monitor Edge trim suction by TRIA Suction calculated for line speed max. 650 m/min ,film thickness 12 - 50 µm 2 Suction pipes for edge trim before winder (edge strip width max. 150 - 200 mm) 4 Suction pipes for trims winder 4 (strip width max. 15 mm) Oscillating frame ,width 2700 mm,oscillating distance +/- 50 mm Recycling unit Type: EREMA LIVE 1108 T/450 Extruder output max. 450 kg/h Winder by SML DOUBLE TURRET WINDER Type W4000 4s/Stretch/2700/3“/4up/650 Final film width max. 4 x 500 mm Mechanical speed max. 650 m/min Winding diameter with 3“ winding cores max. 400 mm Winding diameter with 2“ winding cores max. 180 mm Number of turn-over units 2 pcs. Number of winding shafts 8 pcs. Change time with 3“ core magazine: 15 s Cutting unit for edge trim and part bobbin cut Main frame with web tension measuring roller, contact rollers, auxiliary contact rollers and winding stations Cross-cutting unit Bobbin and core handling system 3“, 2“ Control unit SML -Betriebssystem Without chiller and compressor
