Used ILLIG RV74C of 2010 for sale

2010 | Ref.: 300047794

Thermoformer ILLIG, You can contact our team and analyze your needs so we can offer you the best possible solution depending on your budget.

Data Sheet of Used ILLIG RV74C

Ref.: 300047794

Year: 2010

Brand: ILLIG

Status:
For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

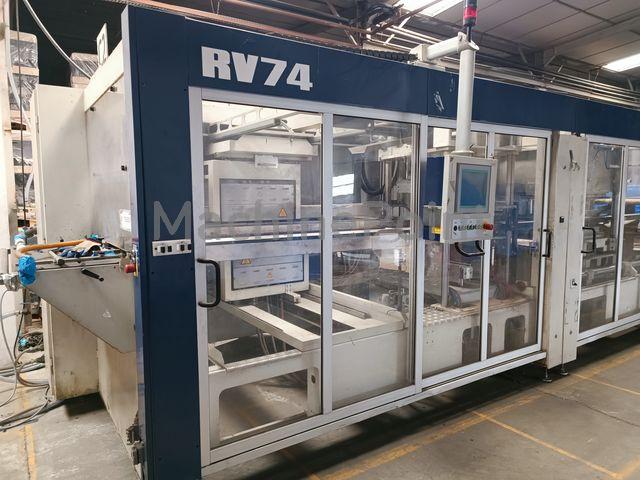

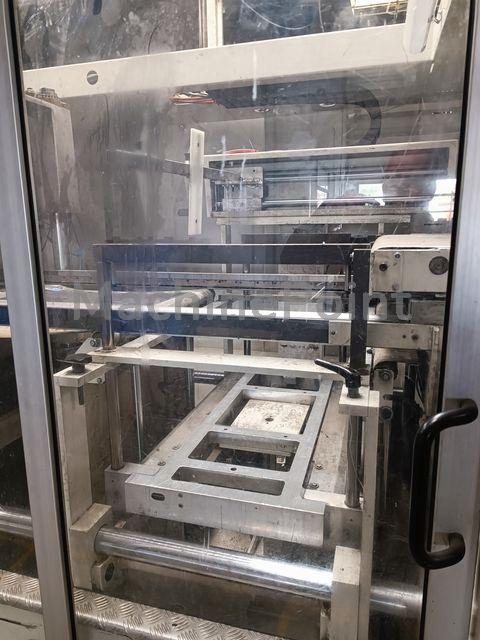

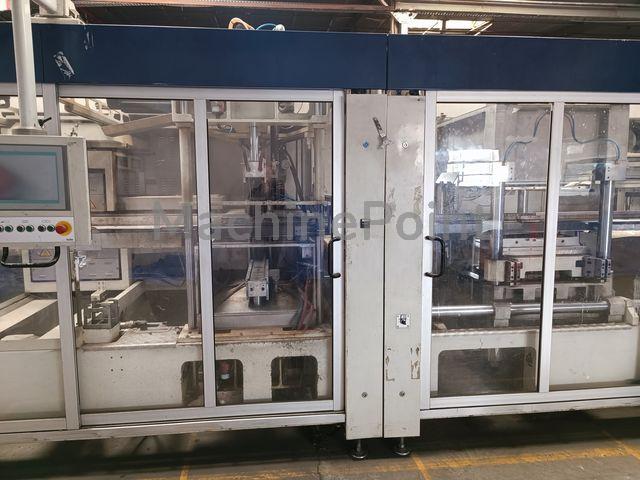

ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine
ILLIG - RV74C - Used machine

Technical Specifications:

  • Forming Area (Vxh): 704x515
  • Depth Of Draw: 120 mm
  • Material Thickness (Min): 0.18 mm
  • Material Thickness (Max): 2 mm
  • Number Of Stations: 3
  • Products Type: Container
  • Feeding Systems: Roll fed

Other Specifications:

Forming/Cutting/Stacking
Min-max forming area: 400x250 - 704x515
Tool width between film transport spars min-max: 420-724mm
Tool length in feed direction min-max: 274-538mm
Film width min-max: 454-760mm
Max. gap dimensions per side: 12mm
Feed length min-max . 250-540mm
Formed part height above film level max: 120mm
Formed part height below film level max: 40mm
Table travel upwards max: 160mm
Table travel downwards max: 195mm
Clamping frame upstroke max: 140mm
Blow box stroke max: 60mm
Upper heater length: 2000mm
Lower heater length: 1875mm
Vacuum pump flow max: 100m3/h
Max. mold clamping force: 80 kN
Max. forming pressure: 2 bar
Max. cycle rate: 35 cycles/min

Working hours at 07/11/2024 : 40528

Other Details:

Guarantee: Without guarantee

Current condition: Dismantled. Can't be seen in running condition

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
