Used VEA Entry of 2003 for sale
Laminators VEA, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used VEA Entry
Ref.: 300047807
Year: 2003
Brand: VEA
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Type Of Laminator: Solventless
- Working Width: 1300 mm
- Unwinder Diameter: 800 mm
- Rewinder Diameter: 800 mm
- Mechanical Speed: 300 m/min
Other Specifications:
Min-max film width : 650-1315mm
Diameter cores : unwinding : 3"/6" - rewinding : 6"
Max film tension : unwinding : 20 Kg - rewinding with taper tension : 25 Kg
In rewinding, taper tension can be regulated from 10% to max 50% of the set value.
Max reel weight : 600kg
Equipment:
1 Mixer for bi-component (solventless) adhesives Brand VEA model Matrix M1

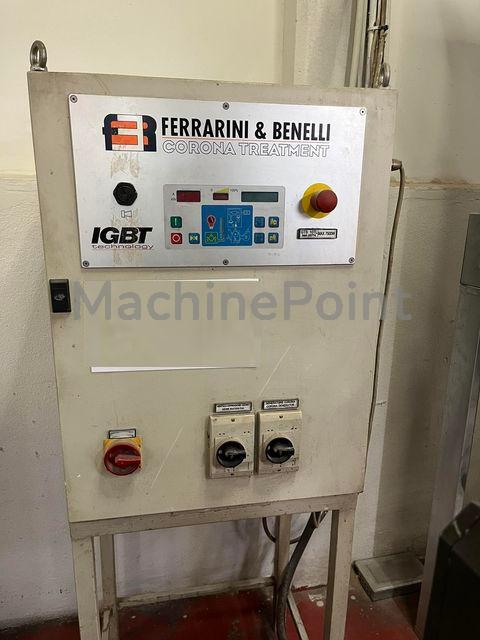

1 Corona treater “Ferrarini & Benelli” with ceramic electrodes
3 off-line heating units for coating, dosing and laminating rollers (EuroEnergy)
1 pneumatic translator for adhesive distribution

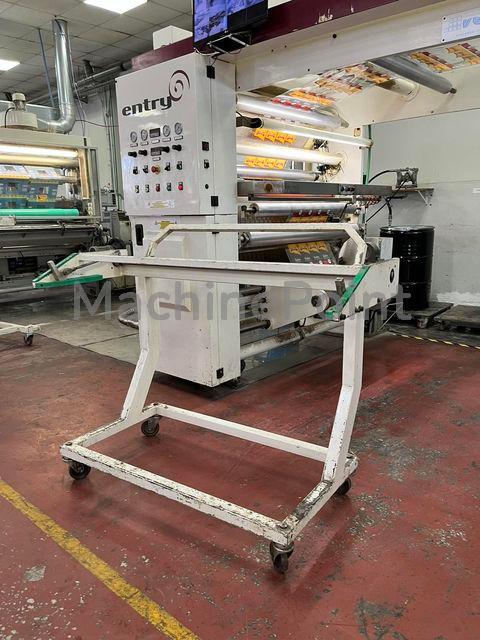

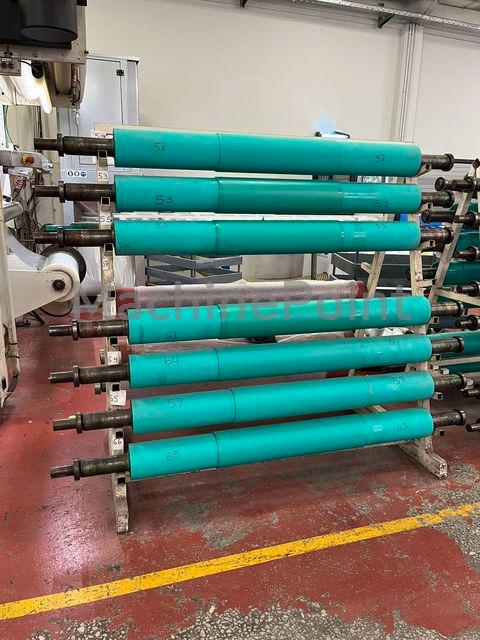

1 carriage for replacing conveying (rubber) rollers
Edge-guide sensors in both unwinders
Pedal to facilitate cleaning of coating rollers
Hybrid cones on unwinders (suitable for both 76mm and 152mm)
152mm cones on rewinder
4 pressure (nip) rollers: 2 on machine, 2 spare
Materials to be coated
ALU : 12 ÷ 40 micron
BOPP : 12 ÷ 80 micron
CALANDERED PAPER : 40 ÷ 200 grams/m2
LDPE, LLDPE : 30 ÷ 200 micron
NYLON CAST : 30 ÷ 80 micron
OPA : 12 ÷ 18 micron
PETP : 12 ÷ 30 micron
PP CAST : 60 ÷ 150 micron
Materials to be laminated
ALU : 7 ÷ 40 micron
BOPP : 12 ÷ 80 micron
CALANDERED PAPER : 40 ÷ 200 grams/m2
LDPE, LLDPE : 20 ÷ 200 micron
NYLON CAST : 20 ÷ 80 micron
OPA : 12 ÷ 18 micron
PETP : 8 ÷ 30 micron
PP CAST : 20 ÷ 150 micron
VARIOUS COEXTRUDED : 25 ÷ 200 micron
No sleeves included
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
