Used PALLMANN PFV 400 of 2013 for sale

2013 | Ref.: 300047861

Agglomerator PALLMANN, We guarantee that the buying process for used machinery through MachinePoint is safe and professional.

Data Sheet of Used PALLMANN PFV 400

Ref.: 300047861

Year: 2013

Brand: PALLMANN

Status:

For sale

Delivery time: Immediate

Ask for machine price Want to sell your machine?

Please accept marketing-cookies to watch this video.

Photos
Video

Technical Specifications:

Volume: 400 l
Output Capacity: 900 kg/h
Number Of Rotor Knives/Blades: 2
Temperature Control System: Yes

Other Specifications:

PFV 400 system without hot melt granulator
Agglomerator Paddle Speed: Approx. 562 rpm
·Working Diameter of the Die (Inside): 400 mm
·Working Width: 40 mm
·Number of Pressure Blocks: 2

Mixing Unit :
·Drive: Front gear motor (SEW)
·Mixing Speed: 5 rpm
·Number of Mixing Rollers: 3
·Number of Mixing Arms per Shaft: 2
·Motor Power: 1 kW
·Speed (rpm): 562 rpm

Discharge Screw :
·Drive: Frequency-controlled front gear motor (SEW)
·Speed of Discharge Screw (min-max): 9-128 rpm
·Frequency Control Range: 5-75 Hz
·Screw Pitch: 120 mm
·Screw Depth: 30 mm
·Number of Loosening Paddles: 12
·Motor Power: 3 kW

Cutting Unit :
·Drive: Frequency-controlled 3-phase motor (Siemens)
·Speed of Rotating Blades (min-max): 66 - 495 rpm
·Frequency Control Range: 10 - 75 Hz
·Number of Rotating Blades: 2
·Motor Power: 11 kW

Main Drive :
·Motor Power: 250 kW
·Motor Speed: 1,000 rpm
·Protection Class: IP 55

Cooling Water System :

Connection - Water Inlet: R 1/2"
Connection - Water Outlet: R 1/2"
Operating Pressure at the Entrance to the Cooling System (min.-max.): 2-4 bar
Exit from the Cooling System: pressureless
Pressure Difference, approx.: 1 bar
Maximum Supply Temperature: 15 °C
Maximum Return Temperature: 40 °C
Water Requirement: 2000-2500 l/h

Other Details:

Guarantee: Without guarantee

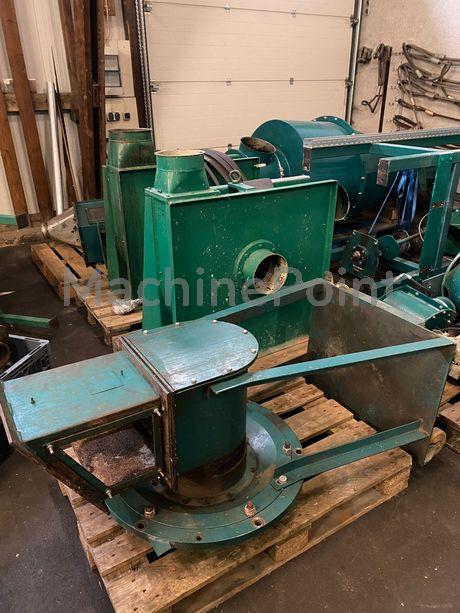

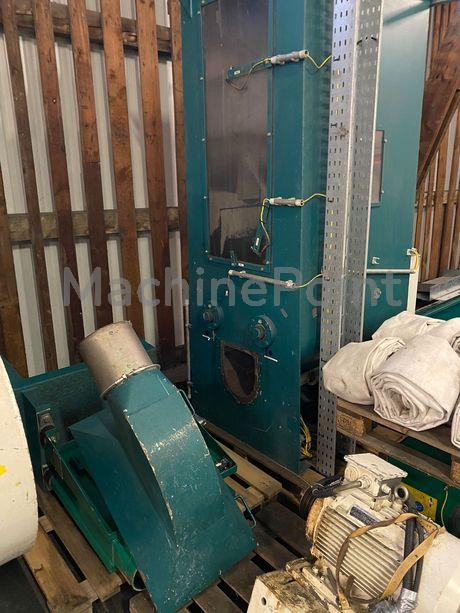

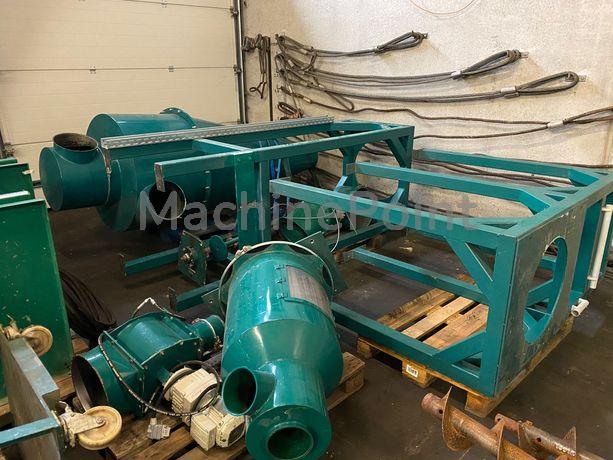

Current condition: Dismantled. Can't be seen in running condition

Availability: Immediate

Voltage: 400 V Triphase
Frequency: 50 Hz
