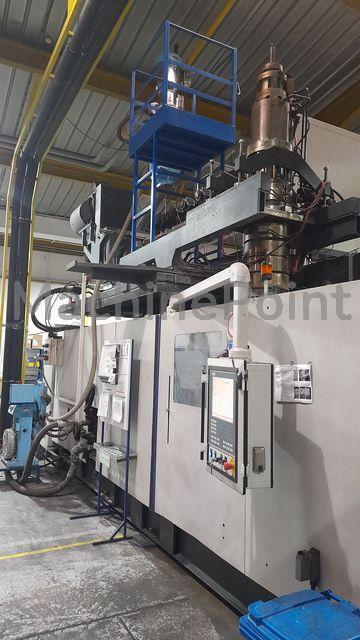

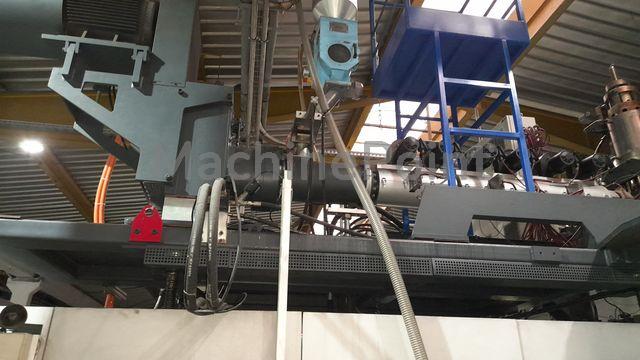

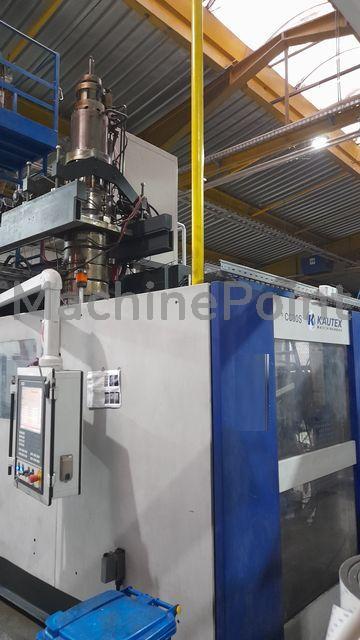

Used KAUTEX KCC 30 S of 2012 for sale
Accumulation Head Extrusion blow moulding machine KAUTEX, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.
Data Sheet of Used KAUTEX KCC 30 S
Ref.: 300047893
Year: 2012
Brand: KAUTEX
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:

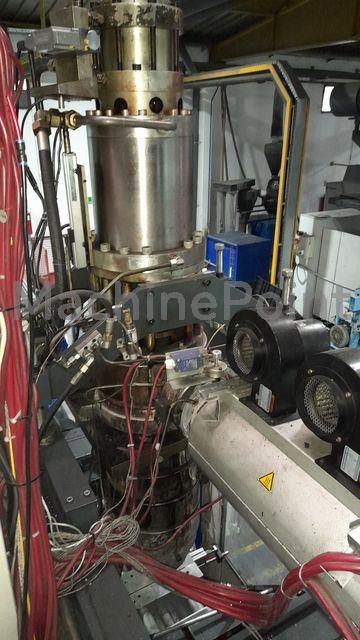

- Accumulation Head Capacity : 4 l
- Number Of Heads: 1
- Material Type: HDPE; PP
- Number Of Stations: 1
- Extruder Type: Accumulator
- Number Of Extruders: 1
- Screw Diameter: 90 mm
- Wall Thickness Control: Yes
Other Specifications:
Clamping force: 30 T
Clamping plate width: 530 mm
Length of the clamping plate: 700 mm
The gap between the plates max.: 1000 mm
Mould width max: 710 mm
Mould thickness min: 2 x 250 mm
Mould height max: 700 mm
Mould weight max: 2 x 700 kg
Dimensions of the most oversized mould in production: 870 x 650 x 765 mm
Diameters of die tool (available): 90,150,170,190,220 mm
The maximum working pressure of the machine: 220 bar
Air consumption: 95 m3/h
Number of temperature zones: 5
Robot: Kautex
Available 2 machines: one 2012, other 2011 (price per unit)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
