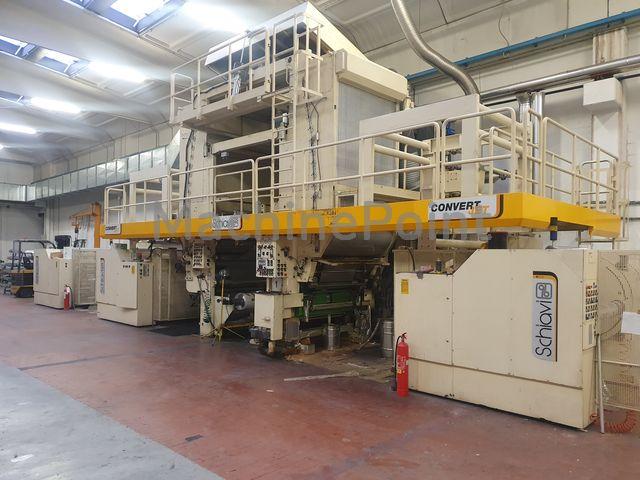

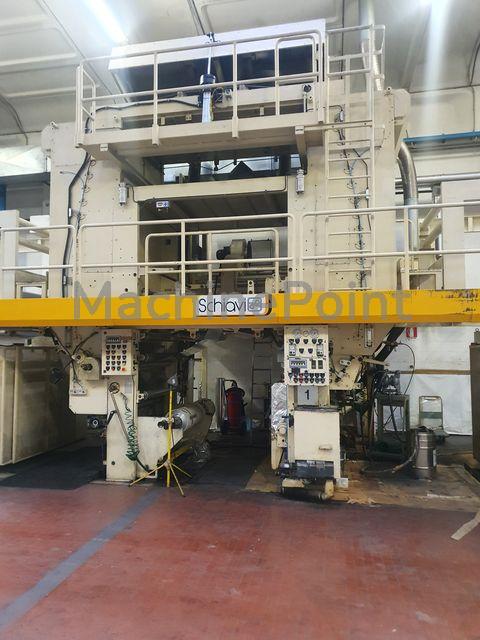

SCHIAVI Convert Jet of 1999 used

Other Specifications:

Laminator complete refurbished with brand new electronic, done in 2024

ROLLING MILL Model CONVERT JET suitable for performing dry and solvent-free duplex coupling:
NOTE solventless trolley is not available.

Maximum film width 1270 mm
Spreader cylinder width 1340 mm
Doble automaci unwinder and rewinders

Additional unwinder for Aluminum:
Max. Diameter of coils 800 mm

Materials
Main unwinder
- OPA from 12 to 100 my
- POR 18 to 100 mi
- PE from 30 to 100 mi
- PPO from 12 to 50 min
- PP from 30 to 100 mi
- PET 12 to 50 m
- PVC from 12 to 100 mi
-cellophane and analogues from 25 g/m2 to 60 g/m2
- paper from 30 to 120 g/m2
-Alu from 12/10 to 40 min

Secondary unwinder/winder:
All materials as for the main unwinder and also:
PP and LDPE from 15 to 120 million
ALU from 7 to 25 min

Additional unwinder
ALU from 7 to 25 min
In the case of the 7 MY aluminum cladding, the working speed is 150 m/min. Up.
Solvent for dilution: ethyl acetate.

Preparation of the frame and the film path necessary for the assembly of a plant for the "corona" treatment of the film on one of the two sides. No treaters included in this scope.

Trolley-mounted adhesive application and recirculation unit consisting of:
- 2 glue pots with 2 sets of splatter guards (the ink cartridge allows a fine adjustment of its position in relation to the engraved cylinder) The parts in contact with the adhesive are made of stainless material.
-2 tanks with well for glue recirculation
-2 unengraved spreading cylinders
- Self-priming pump (type to be defined) with flow regulator positioned at the upper level of the area of use.
-filter
- Series of flexible tubes, equipped with quick couplings, for the connections between the cartridge and the recirculation tank.

Preparation of the glue tank for the installation of an automatic viscosity control.
Fasnacht automatic viscometer included in the delivery, combined with the self-priming pump to allow washing at the end of processing via by-pass.

No. 2 mixers for SCHIAVI two-component adhesives with 4 tanks of 200 litres/each. Mixer.

Drying chambers No. 2 mod. 462/15/1S, with forced hot air circulation.
