EUROMAC TB-3.06iS of 2013 used

Other Specifications:

Slitter with only 5736 operating hours:

- Printed and unprinted materials :
Lacquered aluminium 25 - 70 μ,
Aluminium laminates 40 - 150g/m2 Aluminium embossed 105 - 160μ

Central winding on two winding shafts supported by contact rollers

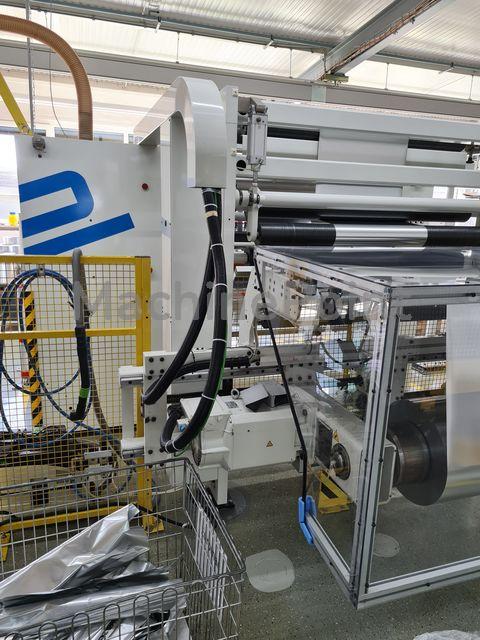

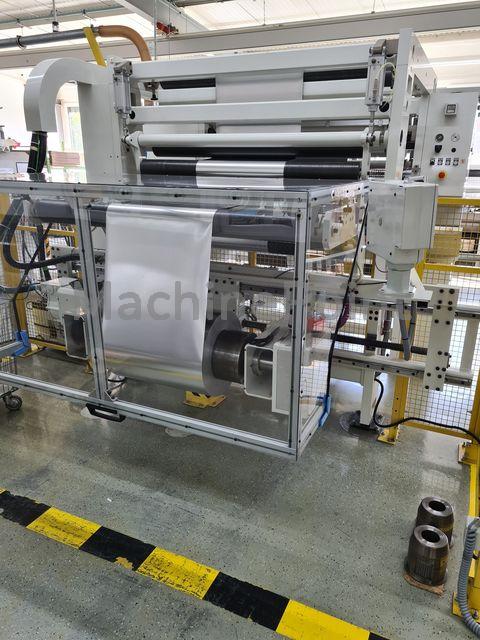

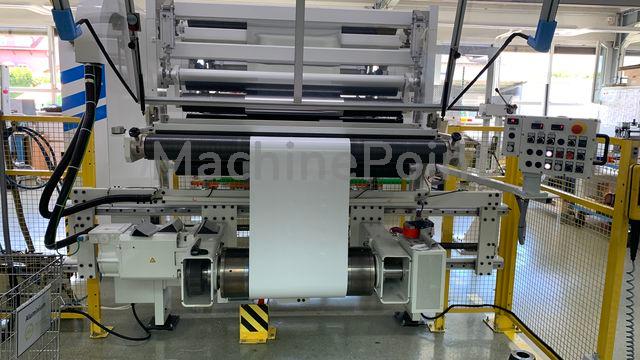

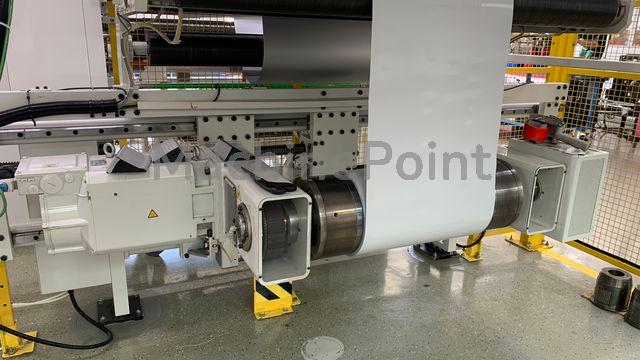

Unwinder:
For 76 mm and 150/152 mm cardboard or steel cores.
Roll weights up to 1500 kg
Min roll width 300 mm
The web tension in the unwind is generated by a mechanical brake and a dancer roller.

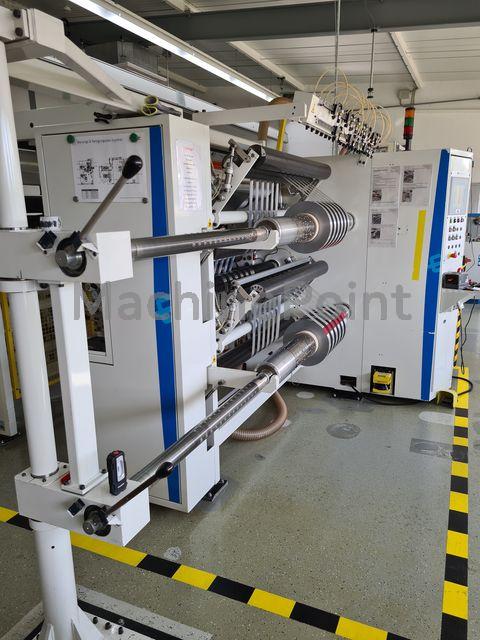

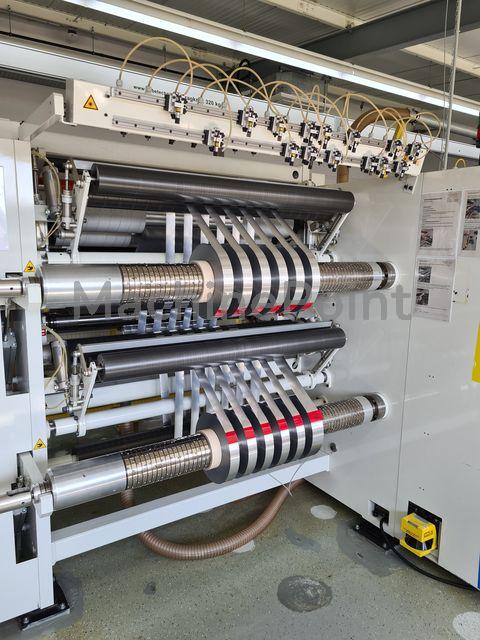

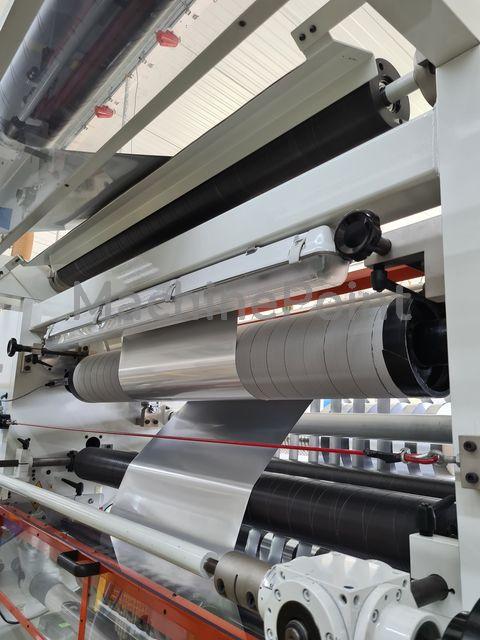

Rewinders
Pneumatic expansion shafts for cores 76 mm and 150/152 mm
Friction shafts for cores 76 mm and 150 mm
The finished rolls are wound onto pneumatic expansion shafts or friction shafts.
The reels are removed by pushing them onto an unloading frame.
Web tension: 50N-400N/axis

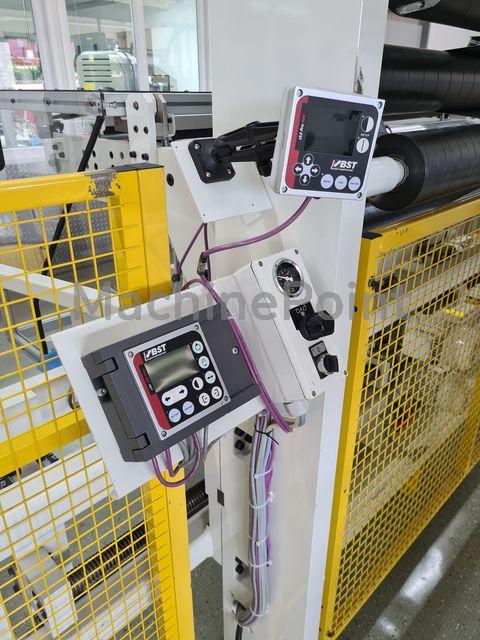

WEB EDGE CONTROL BST, type Pro-Com in the unwinder, complete with its own motorised adjustment unit, camera scanning head type CCD 2004 for checking the web edge

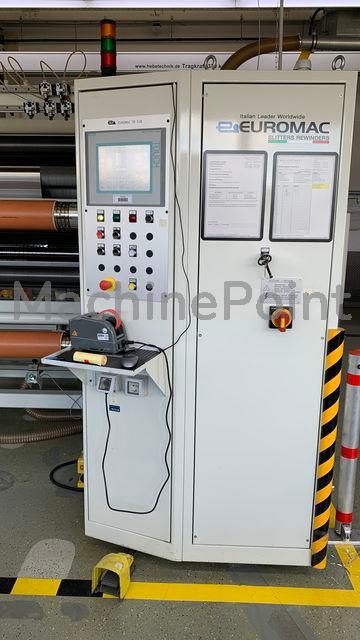

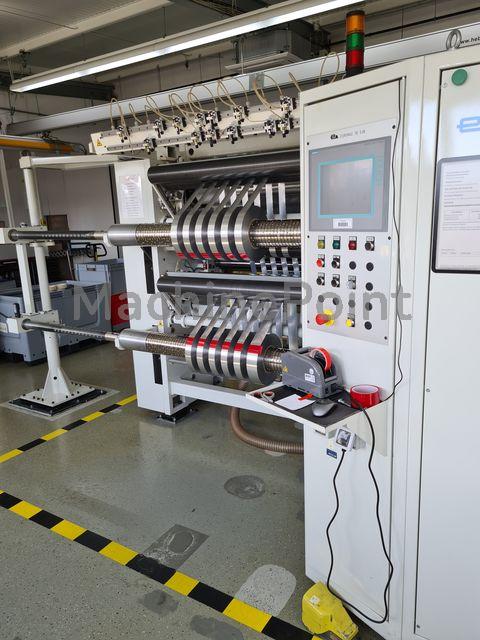

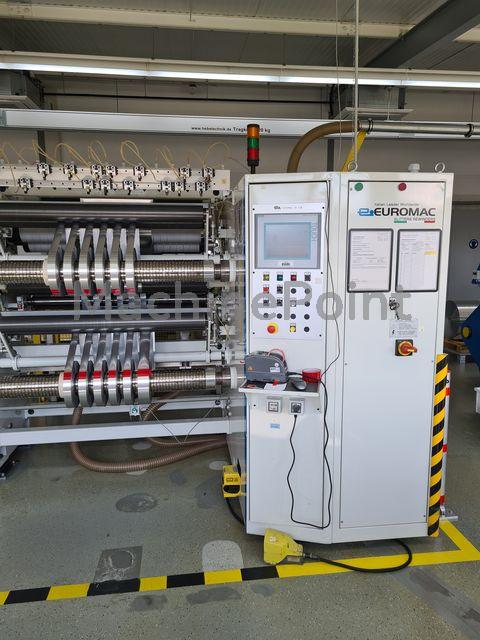

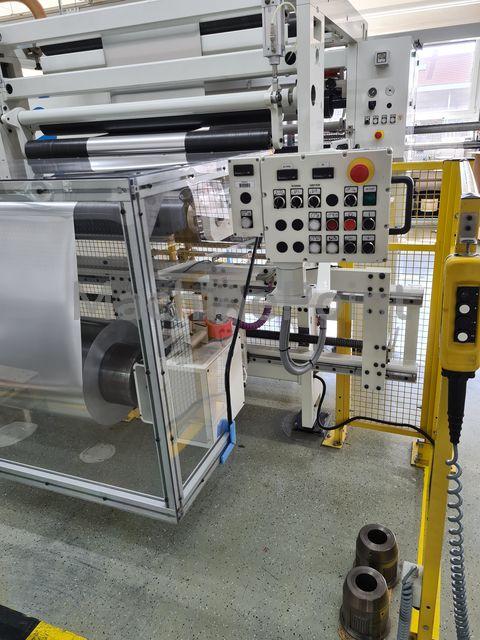

OPERATING AND CONTROL PANEL
The machine parameters are entered via a Siemens MP277- Touch control panel
PLC S7 Siemens

Accessories included:

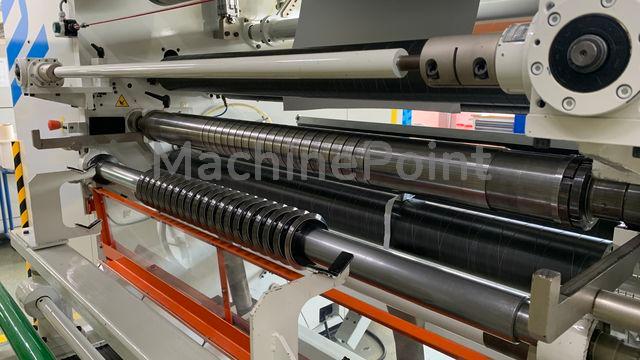

2 sets of spacer rings for the lower cutter shafts
Approx. 40 circular knives on sleeves incl. approx. 100 spare circular knives.

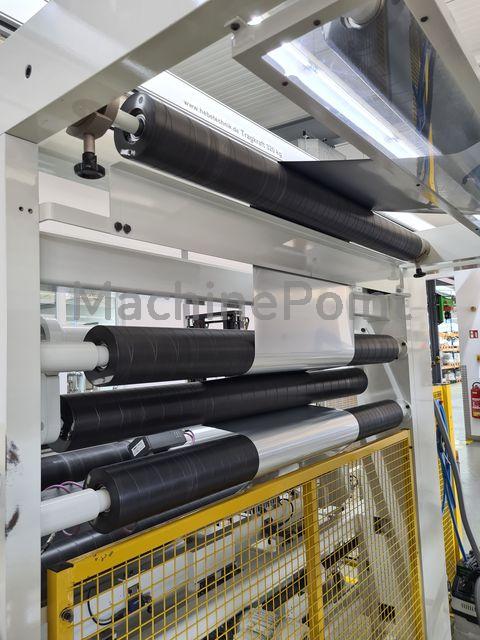

2 hard-coated aluminium deflection rollers, grooved surface, length 1,220 mm.
2 rubberised, smooth contact rollers, length 1,220 mm.
1 pc. optical positioning aid with 15 spotlights for quick and easy positioning of 30 new cores on the winding shafts.
Cores on the winding shafts, designed for a minimum core width of 25 mm.
Handling carriage for inserting and removing the upper and lower cutter shaft
Manually movable unloading frame for picking up the finished rolls.
