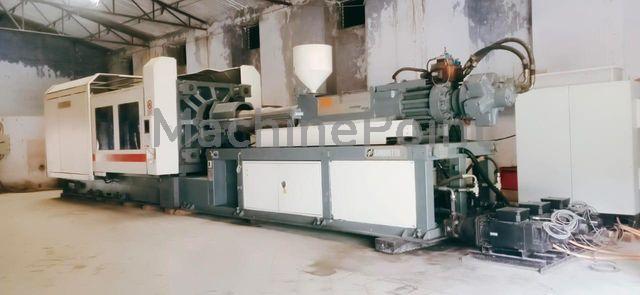

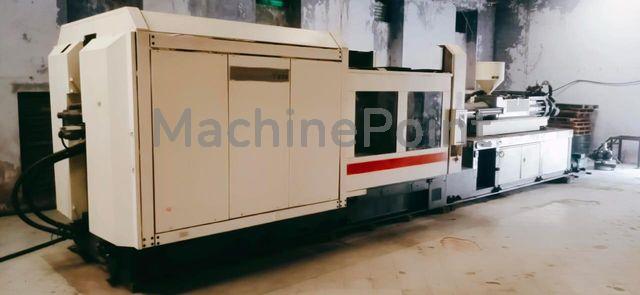

Used Injection molding machine from 500 T up to 1000 T: SANDRETTO Mega T 820 of 1999

Data Sheet of Used SANDRETTO Mega T 820

Ref.: 300047932

Brand: SANDRETTO

Year: 1999

• Clamping Force: 820 ton
• Shot Weight (Max): 4100 g
• Distance Between Tie-Bars (H): 1060 mm
• Distance Between Tie-Bars (V): 1060 mm
• Platen Size (H): 1560 mm
• Platen Size (V): 1560 mm
• Screw Diameter: 105 mm
• Control Type: Hydronica
• Mould Height (Max): 1000 mm
• Mould Height (Min): 350 mm
• Daylight Between Platens (Max): 1500 mm
• Opening Stroke (Max): 1150 mm
• Injection Volume: 4286 cm³
• Injection Pressure: 1486 bar
• Injection Rate: 1007 cm³/s

Other Specifications:

Used Materials - Polypropylene
Final Products - Industrial Crates

This injection molding machine was originally manufactured in 1999. In 2018,

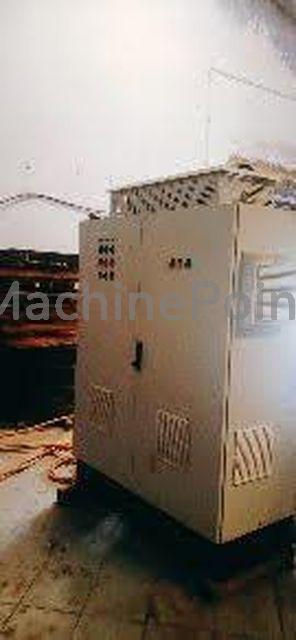

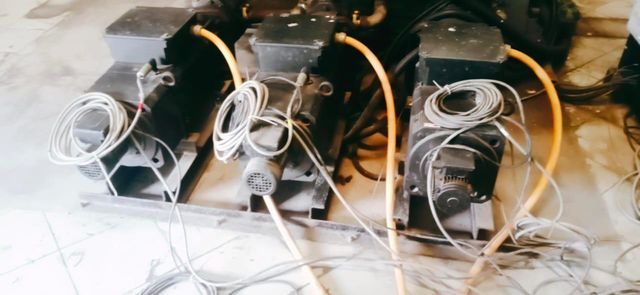

it was retrofitted with three servo hydraulic packs sourced from Baumüller, Germany, and an upgraded PLC system from B&R Automation.
Since the retrofit, the machine has operated for only 200 hours, ensuring it is in excellent condition with modernized performance.
Despite its original 1999 frame, the retrofitting aligns the machine with current technology standards, offering enhanced efficiency and precision.
