COMEXI NEXUS FUTURA of 2015 used

Other Specifications:

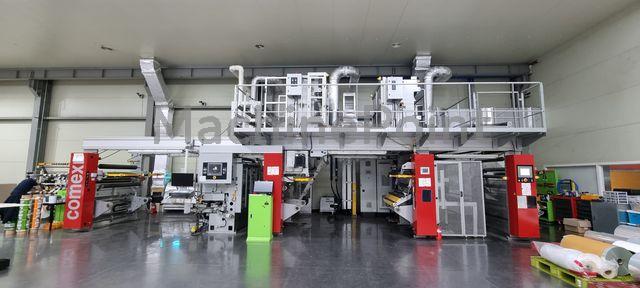

A COMEXI NEXUS FUTURA model laminator, designed to work with:
UV lacquers at register UV lamination
UV holographic effect at full coverage "duplicating" UV holographic effect at register "duplicating"
UV Cold foil effect at register

The machine features primary and secondary simple shaftless unwinders, multi-technology applicator unit, lamination station and UV curing, separation station and reinforcement for UV curing, bridge with rollers for material passage, platform and primary and secondary simple shaftless rewinders.

Duplicating jobs
Material to be applied/to be laminated
ALU 6.35 -40 µ
PP 12 - 80 µ/12 - 80 µ
PET 10 - 30 µ/10 - 30 µ
LDPE, LLDPE 30 - 150 µ
OPA 15 - 18 µ
Paper 40 - 80 gsm

Cold Foil jobs:
Material to be applied/Material to be laminated (Cold Foil Films PET 20-25µ)
PP 12 - 80 µ
PET 10 - 30 µ
LDPE, LLDPE 30 -150 µ
OPA 15 -18 µ
Paper 40 -80 gsm

Lamination jobs
Material to be applied/to be laminated
ALU 6.35 - 40 µ/8 -40 µ
PP 12 - 80 µ / 12 - 80 µ
PET 10 - 30 µ / 8 - 30 µ
LDPE, LLDPE 30 - 150 µ / 20 - 150 µ
OPA 15 - 18 µ / 12 - 18 µ
Paper 40 - 80 gsm/ 40 -80 gsm

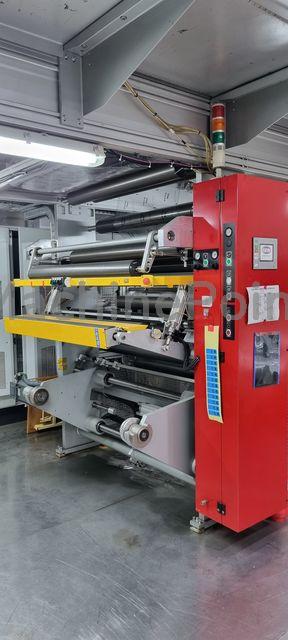

Unwinder
Maximum reel weight: 1,000 kg
Diameter of the mandrel unwinder:(76 / 152 mm. )3", 6"
Diameter of the mandrel rewinder:(152 mm ), 6"
Operating widths:
Useful width of material passage; 1,330 mm
Maximum operating width of Flexo Trolley: 1,220 mm
Maximum operating width of Solventless Trolley: 1,315 mm
Minimum width of film to be laminated: 600 mm
Minimum width of the film to be laminated with optional extensions 400 mm

Each Unwinder includes:
1 set of aluminum eones for 76 mm (3") cardboard mandrels.
1 set of aluminum eones for 152 mm (6") cardboard mandrels

APPLICATION TROLLEY IN FLEXO
For applying lacquers at register or printing with Flexo technology.
•Repeat between 350 and 800 mm
•Maximum printing width: 1,220 mm
Maximum material passage width: 1,270 mm

LAMINATION AND UV CURING STATION
Highly robust metal structure prepared for laminating and UV curing. lncludes:

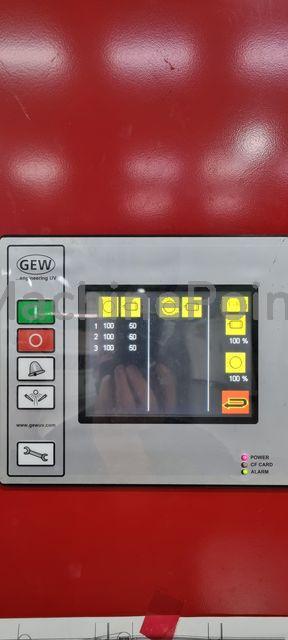

•2 UV lamps located around the calender.
•1 large diameter motorized calender (0400mm), in grindee chromea plated steel with double wall and internal spiral fer cooling or heating, depending on the work performed.
•1 nip unit on the upper part of the calender for lamination and duplicating works, with three-roller nip technology system (t3chnology) , which minimizes the deformations of the rubber Nip for increased lamination quality.
SEPARATION STATION ANO REINFORCEMENT FOR UV CURING

CORONA TREATER, AHLBRANDT with Segmented Electrodes
Model:ASOP 11MS20-200SC-E
Generator: TG 3006
HV - Transformer TT 3006 06
For single-sided treatment of non-conductive materials.

ANODIZING MACHINE ROLLERS
TWO PAIRS OF SIMCO EASLON ANTl-STATIC BARS
