Used SCHUY SchuCup 10000 RL (Ultra Clean) of 2018 for sale

Technical Specifications:

---

• Output: 8500 U/h
• Cup Volume (Min): 150 g
• Cup Volume (Max): 500 g
• Filler Machine Type: Rotary filler
• Hygienic Standard: Ultra clean

Other Specifications:

---

Used Ultra Clean Cup Fill and Seal Line Schuy SchuCup 10000 RL, year 2018


Line assembly:

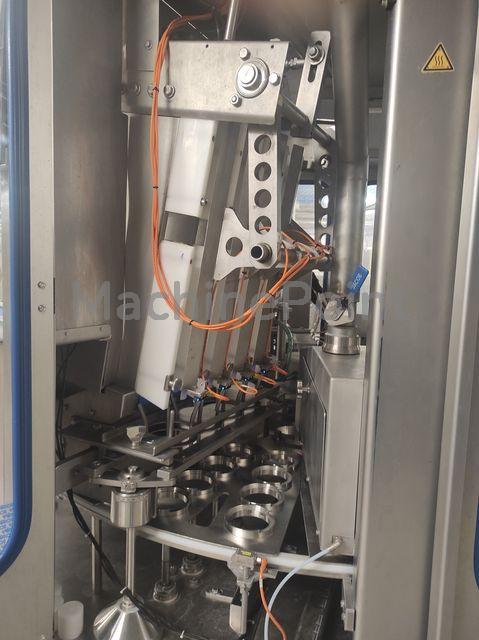

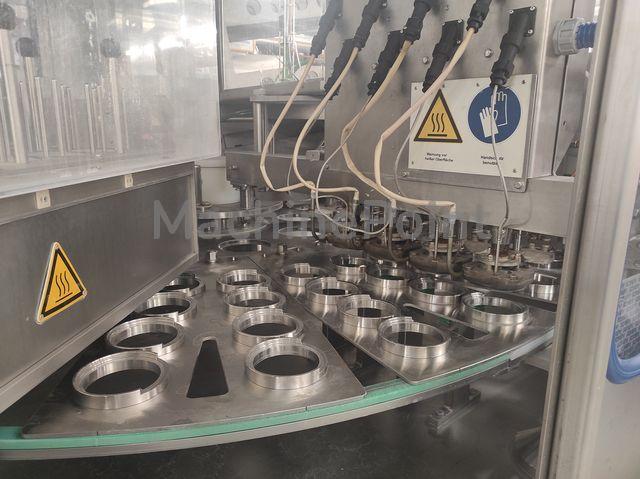

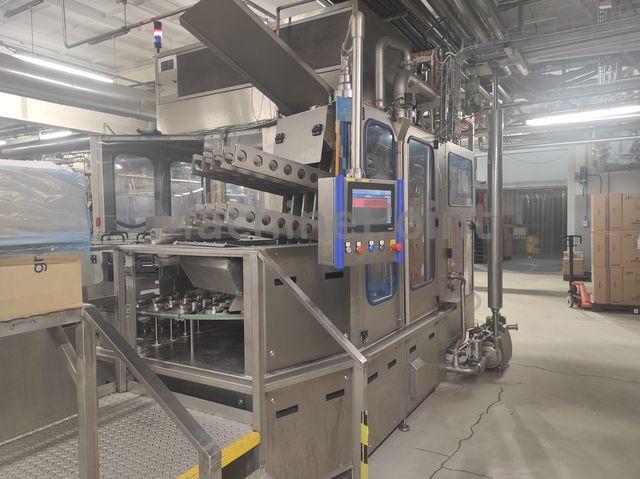

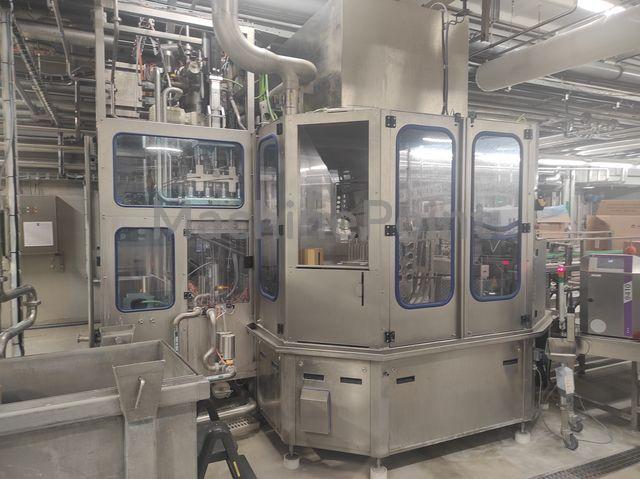

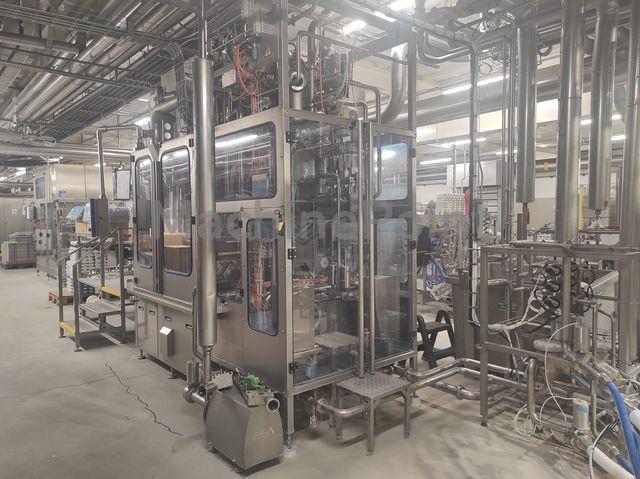

1. Fully automatic filling and capping machine Schuy SchuCup 10000 RL (Ultra Clean)

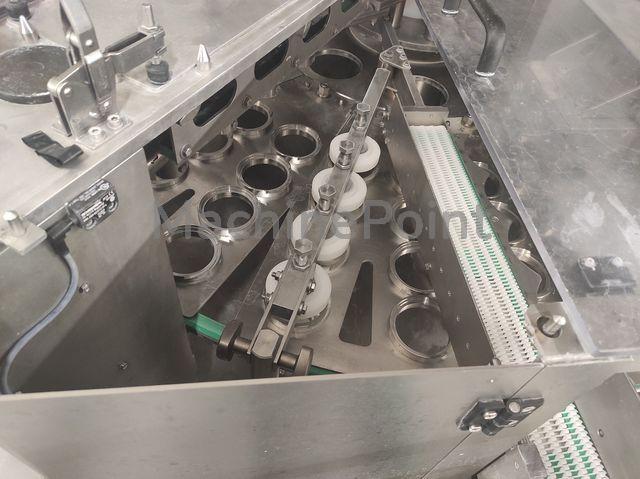

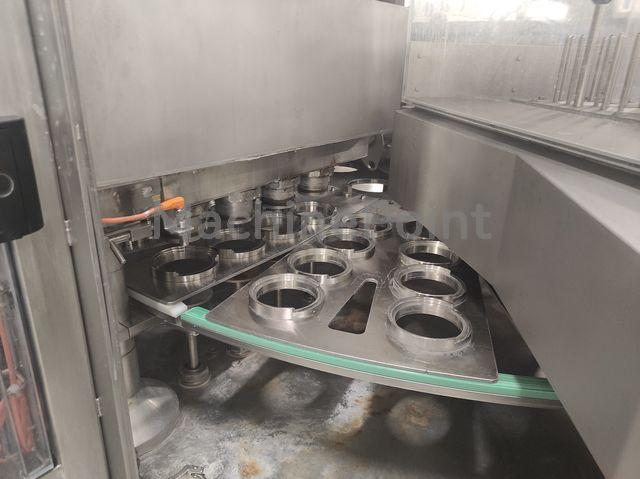

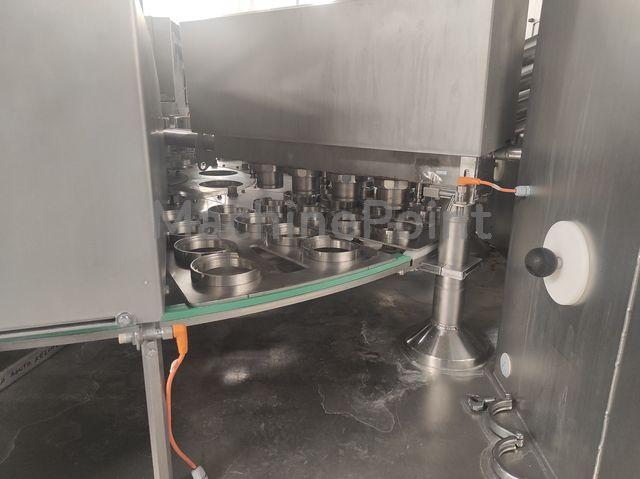

Servo driven four row rotary machine for filling liquid and paste products into plastic cups.

Cup diameter: 75 or 95 mm.
Filling range: 150 - 500 ml.

Maximum output: 8.500 pcs/hr.

Filling temperature: 5 - 65 gr. C

Controls - Schneider Electric PacDrive3

Machine functional stations:

- Tray cup removal station
- Cup presence control station
- Cup dust blowing station
- UVC crucible sterilization station
- Cup filling station 1
- Cup filling station 2
- Dynamic mixer

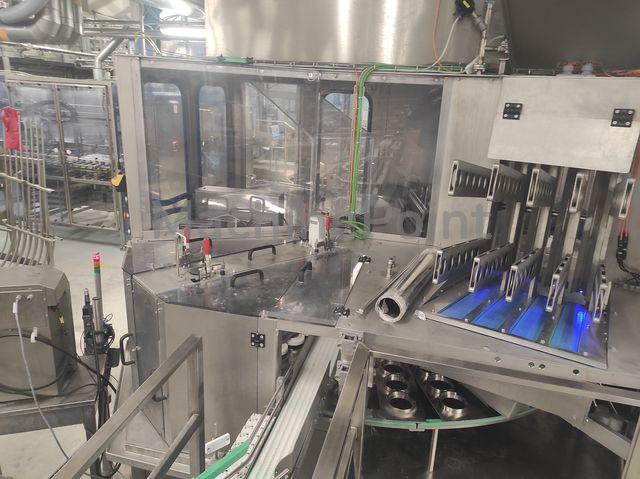

- UVC AL cap sterilization station
- Cap Laying Station
- Welding station
- Cap closure control
- Ink Jet Inkjet Printer - Aluminium Caps
- Transfer cap application station

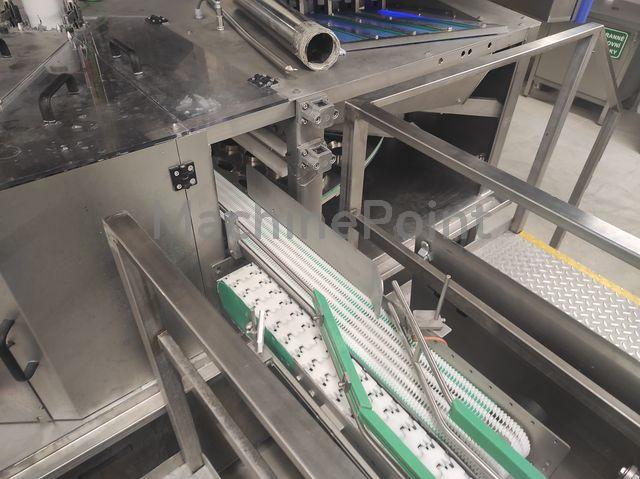

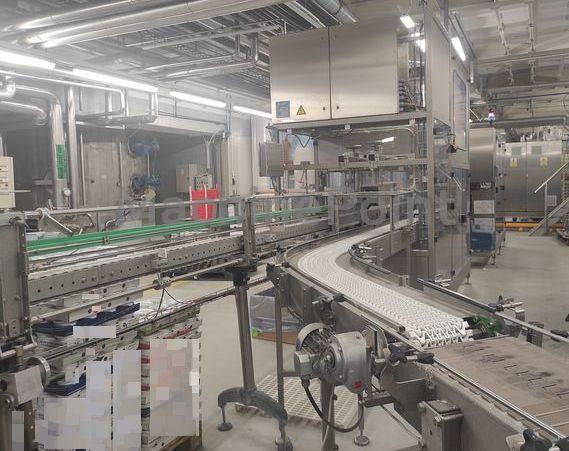

- Output conveyor including station for discarting defective cups
- IInkjet Printer - Overmolded Caps

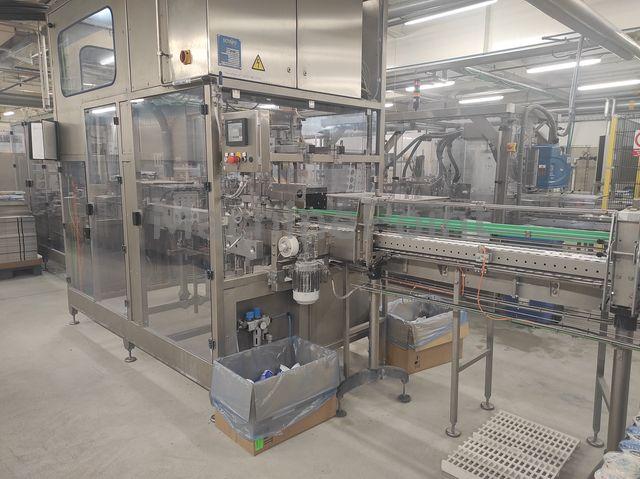

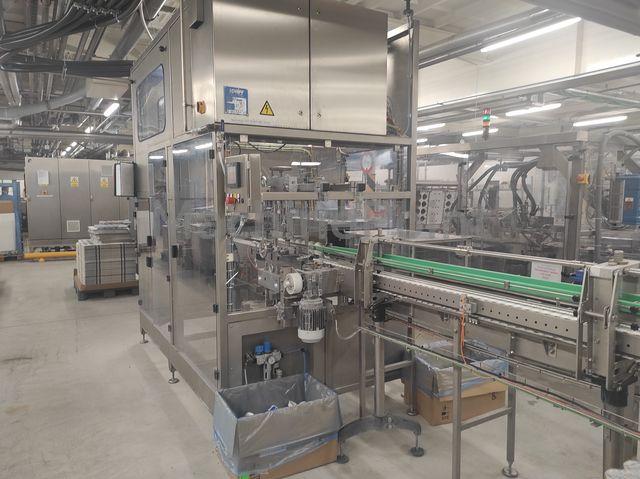

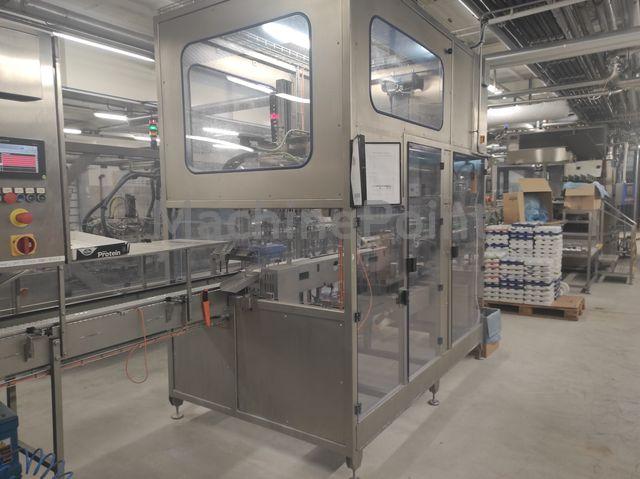

2. Pick & Place Packer SchuPack

Device for inserting cups into tray cartons
Packing format for 75 mm diameter - 4 x 5
Packing format for 95 mm diameter - 3 x 4

The line is still installed but used very seldom.

Other Details:

---

Guarantee: Without guarantee

Current condition: Not running. Can be shown in dry cycle

Availability: From date

Clasification:

---

Final Products: Yoghurt, Sour cream

Used Materials: Cups

Processes: Filling

Application: Ultra-Clean
