Used BOY 22M of 2005 for sale
2005 | Ref.: 300048006
Injection molding machine up to 250 T BOY, The team at MachinePoint is constantly looking for the best offer of machinery all over the world in order to offer our clients attractive and quality machinery.
Data Sheet of Used BOY 22M
Ref.: 300048006
Year: 2005
Brand: BOY
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 22 ton
- Shot Weight (Max): 27 g
- Distance Between Tie-Bars (H): 254 mm
- Platen Size (H): 220 mm
- Platen Size (V): 400 mm
- Screw Diameter: 22 mm
- Tie-Bar Diameter: 40 mm
- Mould Height (Max): 300 mm
- Mould Height (Min): 200 mm
- Daylight Between Platens (Max): 400 mm
- Opening Stroke (Max): 200 mm
- Ejector Force: 1.8 ton
- Ejector Stroke: 80 mm
- Core Pulls: Yes
- Number Of Core Pulls: 1
- Injection Volume: 30 cm³
- Injection Pressure: 1732 bar
- Nozzle Stroke (Max): 180 mm
- Plasticising Capacity: 5.4 g/s
- Heating Zones: 5
- Heating Capacity: 3.64 kW
- Oil Tank Capacity: 180 l
Other Specifications:

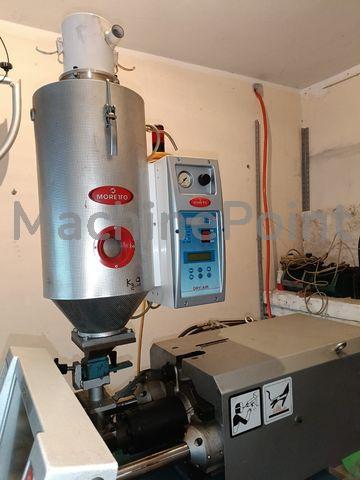

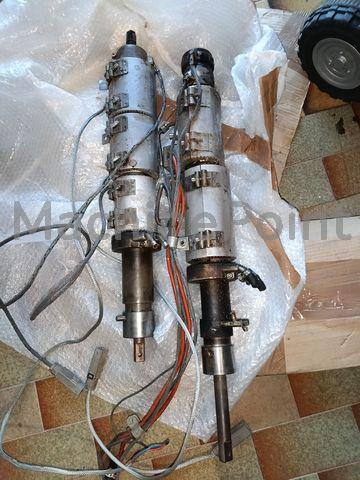

with 36500 hours in excellent condition complete with accessories for vertical moulding, double blowing valve with independent control, spare chamber complete with heating elements and Moretto heated hopper with automatic vacuum loader.
Other Details:
Guarantee: Without guarantee
Current condition: Not running. Can be shown in dry cycle
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 9.14 Kw
