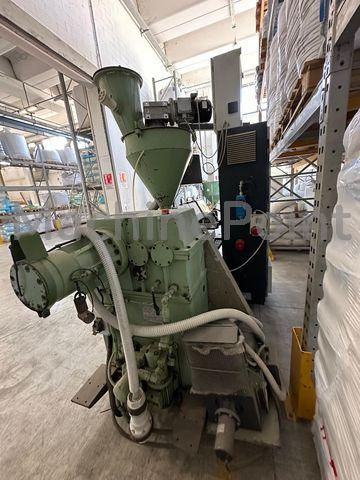

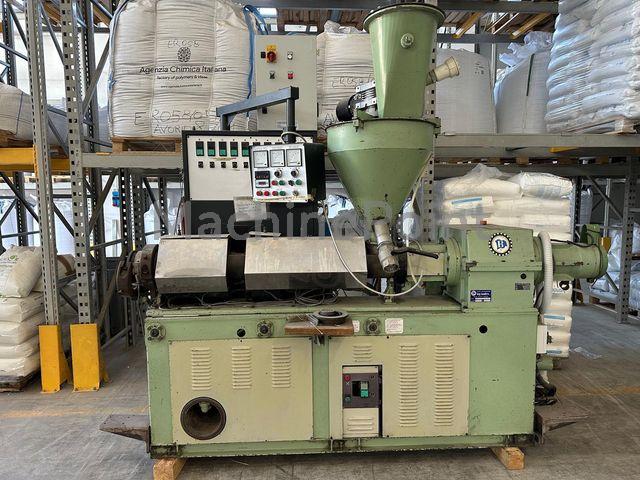

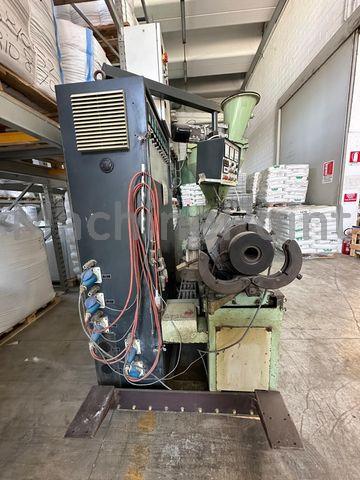

Used BANDERA 2B 65 of 1991 for sale

Bandera single screw 60 diam 28 Ld extruder Year 1991 Material PE-PP 100 kg/h Manual filter change on request to be added With control panel 4 thermo-ventilated zones + 3 +5 zones to be added Cear brand motor mlf 180 k DC drive motor VECC130 hp 40 and amperes 75--2500 rpm

Line for Shrink Film, Laminating and Converting Film and General Packaging Film Thicknesses 15 ÷ 150 my Maximum linear speed 120 m/min Doteco adroit 4+4+4 gravimetric batch raw material handling system Raw material loading system for 12 components Extruders 1x extruder tr 65- 30d afs with manual lever-operated screen changer 2x extruder tr 50- 30d afs with manual lever-operated screen changers 3-layer coextrusion head EXPH CO3 180 - 400 mm Die range: 180 - 400 mm 300 mm die plate exph 300 co3 + ibc inserts - gap 1.6mm 180 mm die exph plate 300 co3 + ibc inserts - gap 1.8mm Internal bubble cooling Ultrasonic internal bubble cooling system control device High-performance dual-flow cooling ring com 2 k-design Automatic thickness control system - integrated model with variocool system from k-design Thickness measuring system, non-contact thickness control unit Calibration cage ra 2750 / 8 / 5 roll (no marking type) adjustment range opening 630 - 2790 mm layflat width Cage fm 2750 / 8 / 2 roll (no marking type) , opening adjustment range 630 - 2790 mm layflat of width Oscillating tow st 2400 with gusseted diispositions Web guiding device Double station winding center (contact) w400 / 2 2400 plus Framing - Cooling batteries, chiller not included

Complete line for PVC flexible tubes Tooling included: 16- 20-25-32 mm 1. Bandera diameter 45 two-speed extruder with 7.5 kW inverter motor Control cabinet with new Gefran instruments screw and cylinder 80% 4x heating zones 2x head zones 2. cooling tank with vacuum pump 3. Gnata marking machine 4. Amut puller with rollers 5. winder

Complete plant BANDERA for flexilble PVC compounds LINE N.1- LUIGI BANDERA 110HT year 2000 complete with screen changer, head cutting and cooler, flow rate 600 kg/h LINE N.3- LUIGI BANDERA 110HT year 2002 complete with screen changer,, head cutting and cooler, flow rate 600 kg/h LINE N.4- LUIGI BANDERA 110HT year 1994 complete with screen changer,, head cutting and cooler, capacity 600 kg/h TURBOMIXER NO.1-LUIGI BANDERA year 1990 c. TURBOMIXER NO. 2- BF ENGINEERING B.F.T. MOD.600 year 1991 TURBOMIXER NO.3 PLASMEC TRM 600 year unknow

Parallel Twin screw extruder for PVC compounds Manufacturer/ BANDERA Model 2B.110.HT Year 2003 Screw diametero (mm) 110 mm Screw L/D ratio 24/1 Output capacity (kg/h) 500/700 Motor AC Main drive power (kW) 117 kW Degassing included (NO pump) Running hours 66485 h
