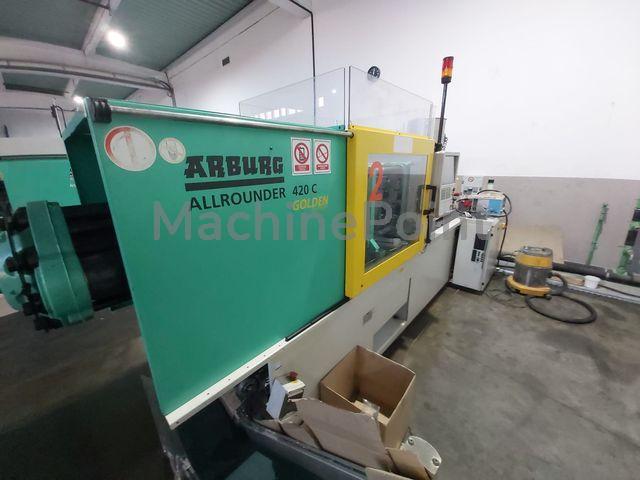

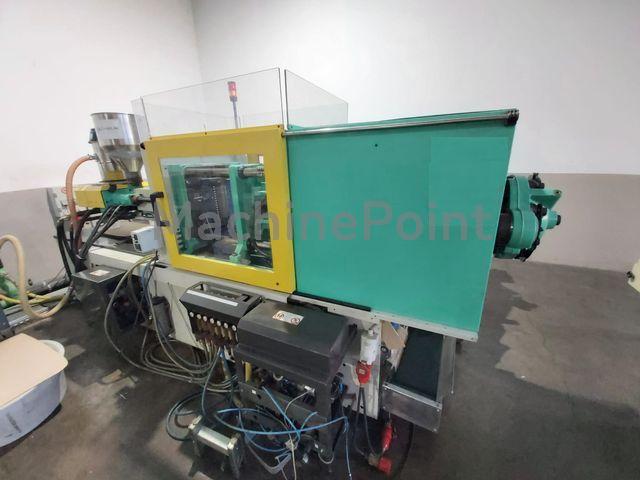

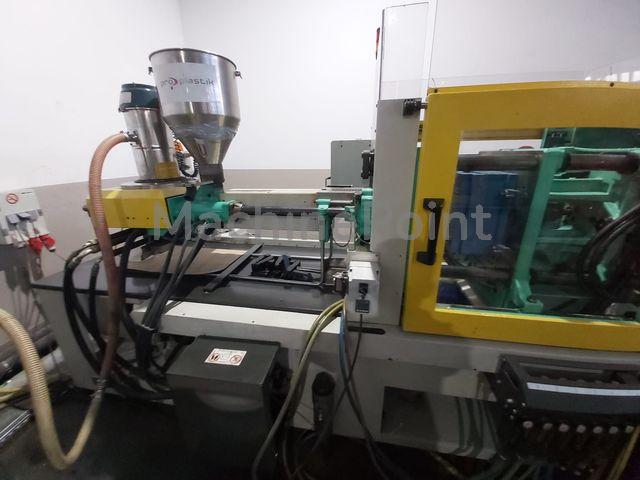

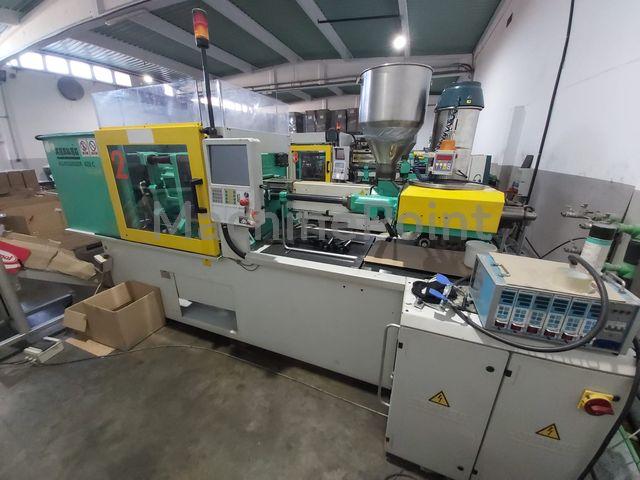

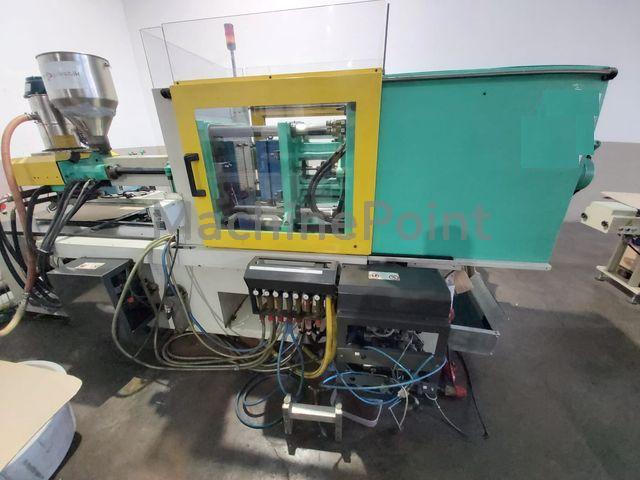

Used ARBURG Allrounder 420 C 1000-290 Golden of 2006 for sale
2006 | Ref.: 300048087
Injection molding machine up to 250 T ARBURG, In MachinePoint we work so that our buyers receive a professional service and so the transaction is safe.
Data Sheet of Used ARBURG Allrounder 420 C 1000-290 Golden
Ref.: 300048087
Year: 2006
Brand: ARBURG
Status:
For sale
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Clamping Force: 100 ton
- Shot Weight (Max): 132 g
- Distance Between Tie-Bars (H): 420 mm
- Distance Between Tie-Bars (V): 420 mm
- Platen Size (H): 570 mm
- Platen Size (V): 520 mm
- Screw Diameter: 35 mm
- Mould Height (Min): 250 mm
- Daylight Between Platens (Max): 750 mm
- Opening Stroke (Max): 500 mm
- Ejector Force: 4 ton
- Ejector Stroke: 175 mm
- Screw L/D Ratio: 20
- Screw Torque: 450 N·m
- Injection Pressure: 2000 bar
- Nozzle Force (Max): 6 ton
- Nozzle Stroke (Max): 240 mm
- Heating Zones: 4
- Oil Tank Capacity: 235 l
Other Specifications:

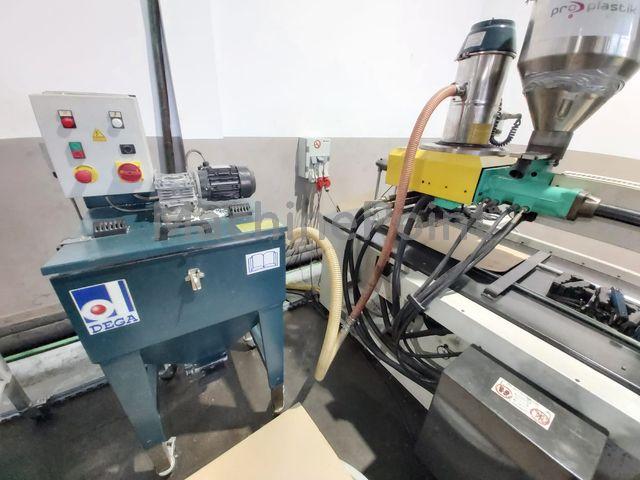

Included: DEGA mix 120/70; year 2007
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
