Used Coextrusion lines: MACCHI CoexFlex of 2014


Search used machines

Similar Products:

Coextrusion lines - MACCHI - CoexFlex

Data Sheet of Used MACCHI CoexFlex

Ref.: 300048119

Brand: MACCHI

Year: 2014


  • Materials: LDPE, LLDPE, HDPE, MDPE, mLLDPE
  • Film Width (Max): 1100 mm
  • Output Capacity: 300 kg/h
  • Number Of Extruders: 3
  • Layers: 3
  • Rewind Unit Type: Back to back

Other Specifications:

COEX FLEX coextrusion unit specifically for FFS application
Minimum and maximum film thickness 20 - 200 microns

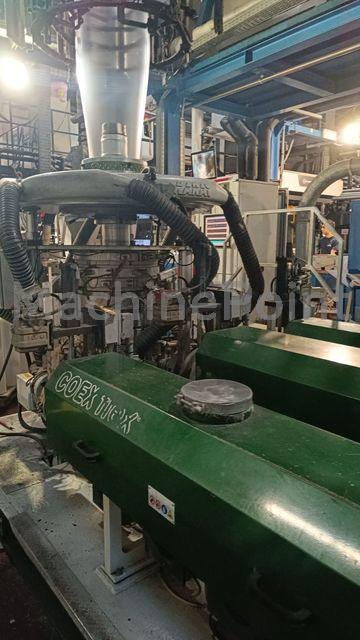

Extruders
2x 65/30D
1x 90/30D

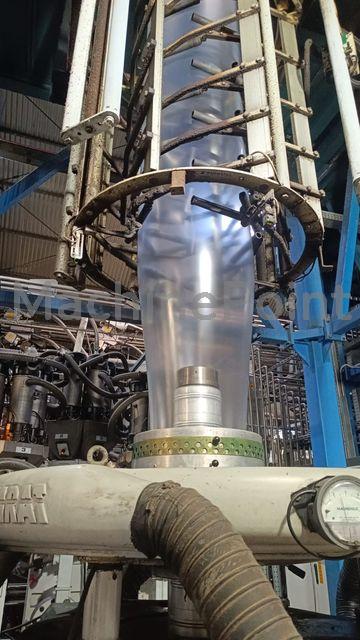

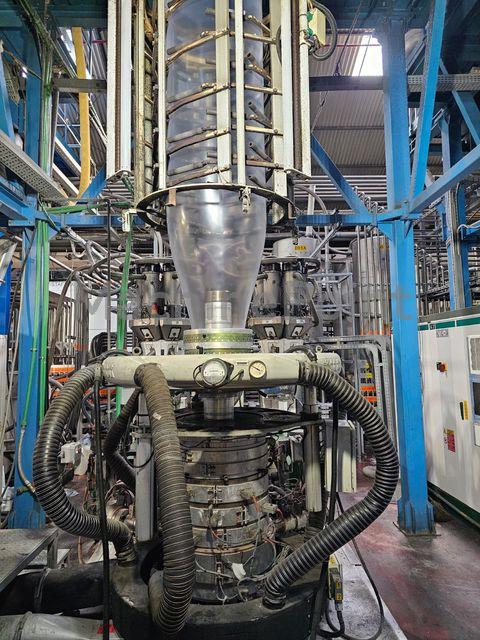

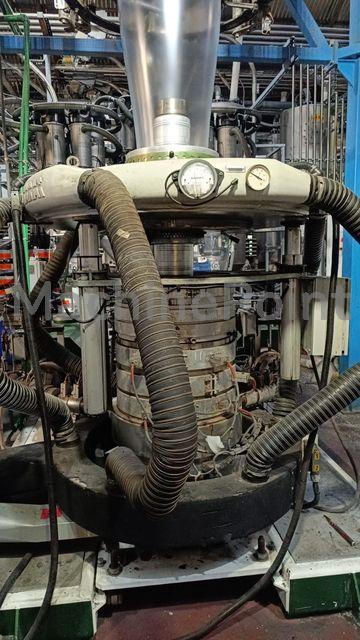

Fixed head COEX flex TE502 IBC (FFS), die plate 180 mm
Internal cooling control (IBC) type JET 6
Non-markingcalibration basket GSRC 1150/8-5

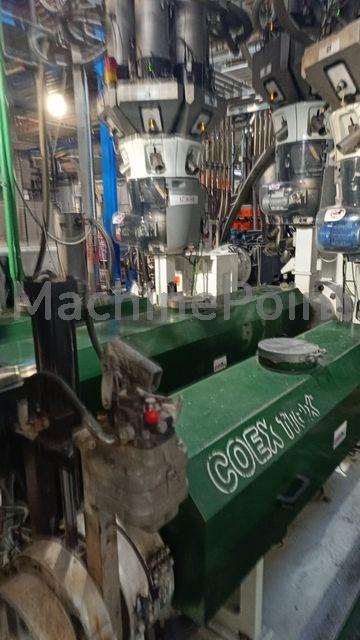

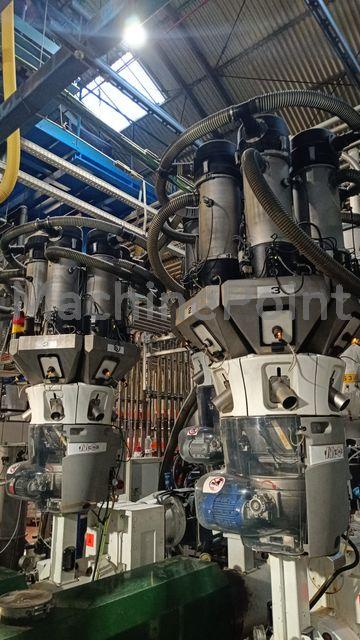

3 Gravimetric units for 6-component batch GRADO
Karat COM 3 automatic triple-flow ring with profile control

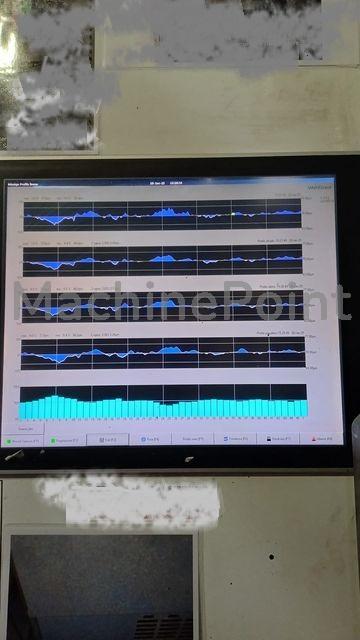

Kundig K300 thickness control

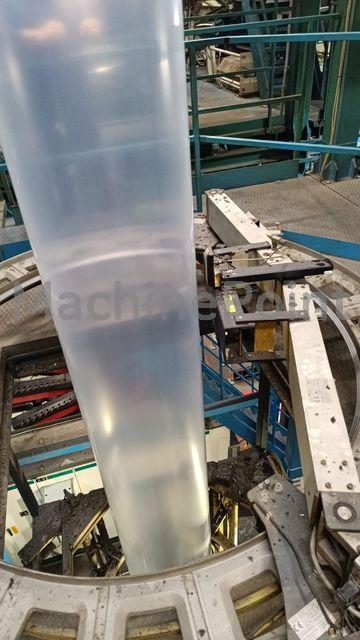

ST 199 Roto-1200 Oscillating haul off (year 2005). Useful width 1100 mm
Corona treatment (year 2005)
BST web guide (year 2005)
Upper calender with gap and cylinderscooled for heavy duty bags (year 2005)

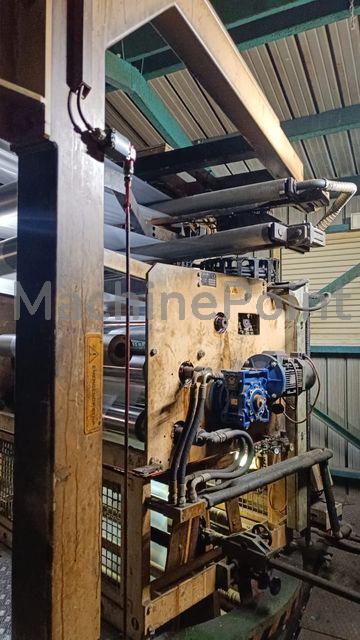

Double BO PLUS/D 1200 mm automatic winder (year 2005). Max reel diameter 1500 mm. Easy load system

Tower not included
