Used PALLMANN PFV 400/40 of 2013 for sale

2013 | Ref.: 300048133

Agglomerator PALLMANN, MachinePoint has a multicultural team with world presence to be able to be closer to our clients. We speak over 15 different languages.

Data Sheet of Used PALLMANN PFV 400/40

Ref.: 300048133

Year: 2013

Brand: PALLMANN

Status:
For sale
Ask for machine price Want to sell your machine?
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine
PALLMANN - PFV 400/40 - Used machine

Technical Specifications:

  • Volume: 400 l
  • Output Capacity: 900 kg/h
  • Number Of Bed Knives: 2
  • Number Of Rotor Knives/Blades: 10
  • Temperature Control System: Yes

Other Specifications:

Speed of the agglomerating vane: 562min-1

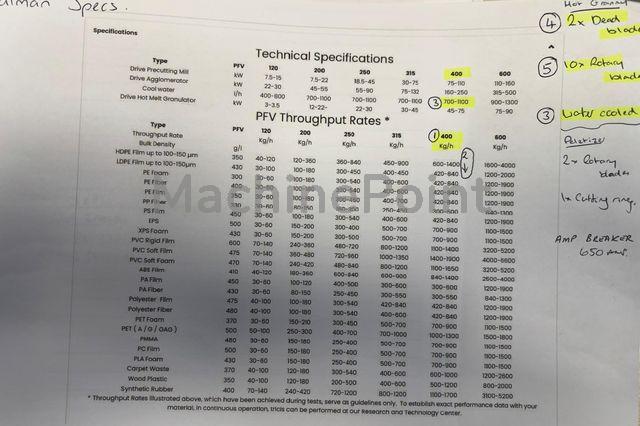

Throughput depends on material, range 400-1900 kg/h (see picture rates)

Inner working diameter of the die: 400mm
Operating width: 40mm
Number of pressure pieces: 2

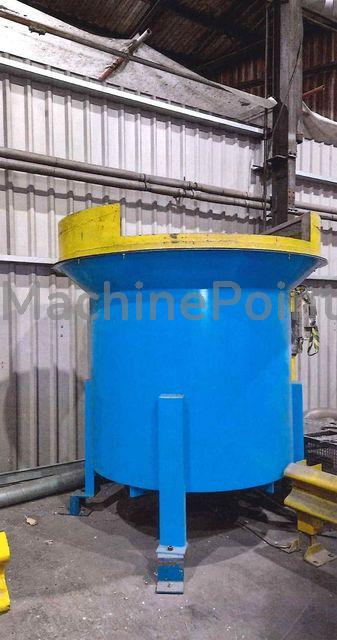

Agitator
Drive with spur gear motor (make SEW): 1.1kW
Speed (rpm) of the agitator shafts: 5 min-1
Number of agitator shafts: 2
Number of agitator arms per shaft: 3

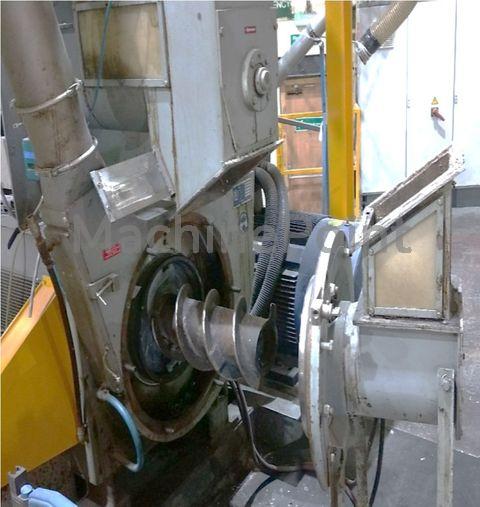

Discharge screw
Drive by means of frequency controlled spur gear motor (make SEW): 3kW
Speed (rpm) of the discharge screw (min .- max.): 9 - 128 min-1
Frequency control range:5-75 Hz
Pitch of the discharge screw: 120mm
Channel depth : 30mm
Number of loosening paddles: 12

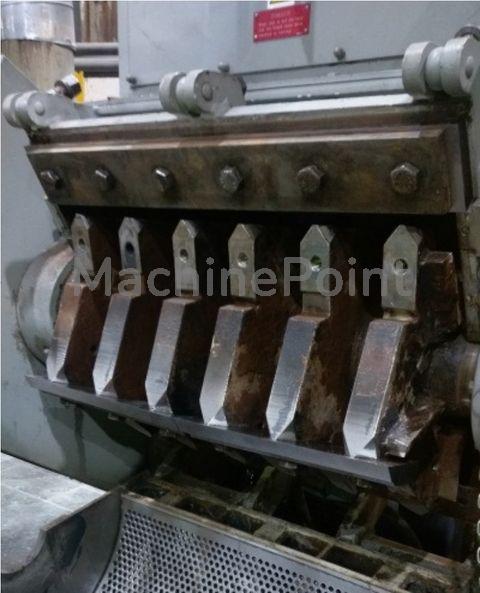

Cutting assembly
Drive by means of frequency controlled electric motor: 11kW
Speed of the rotating knives (variable): 66-495 m/min
Frequency regulation range: 10-75 Hz
Number of rotating knives: 2

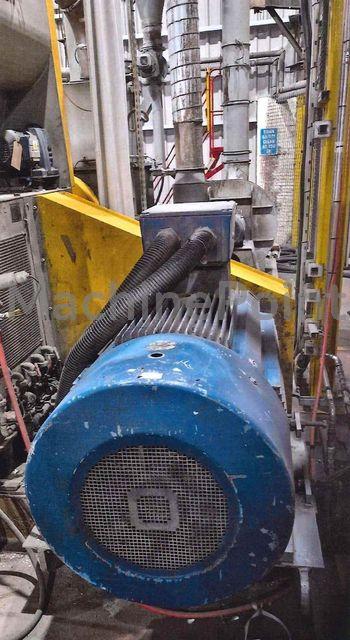

Main drive
Motor power: 250 kW
Motor speed: 1000 m/min

Type of protection: IP55

Other Details:

Guarantee: Without guarantee

Current condition: Disconnected. Can't be seen in running condition
