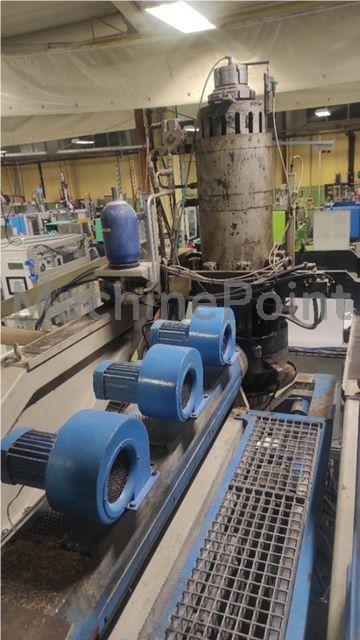

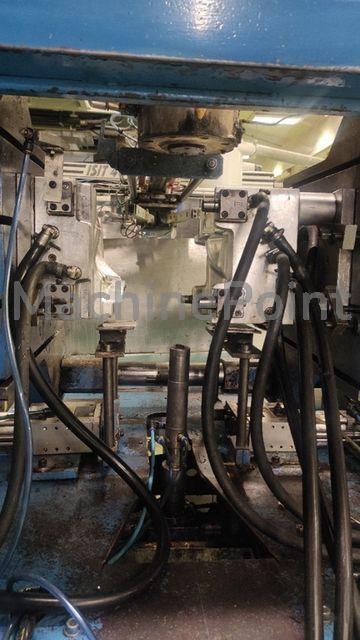

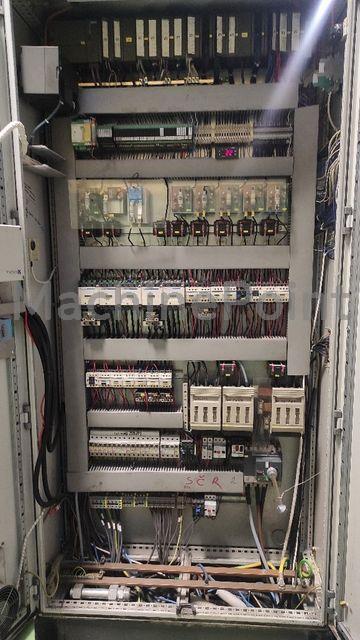

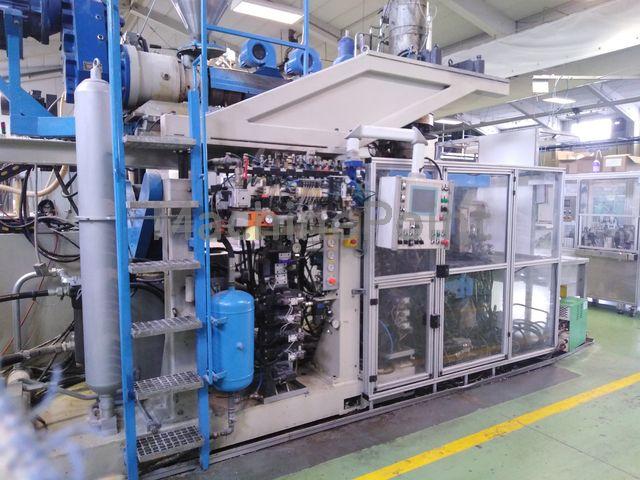

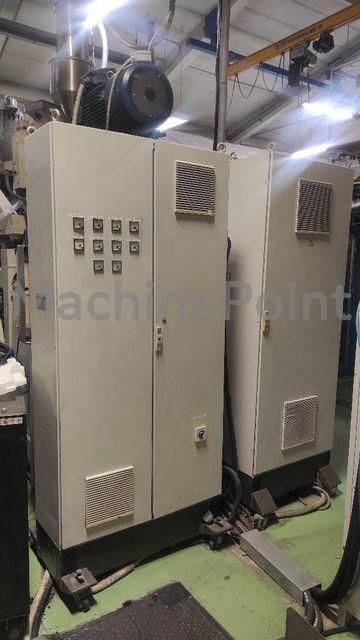

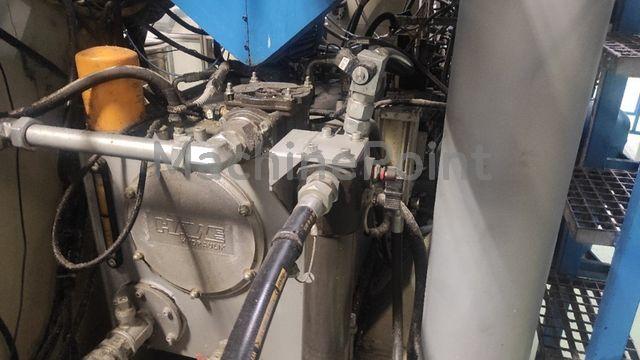

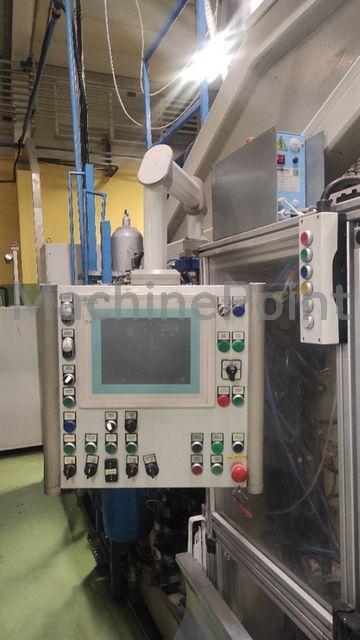

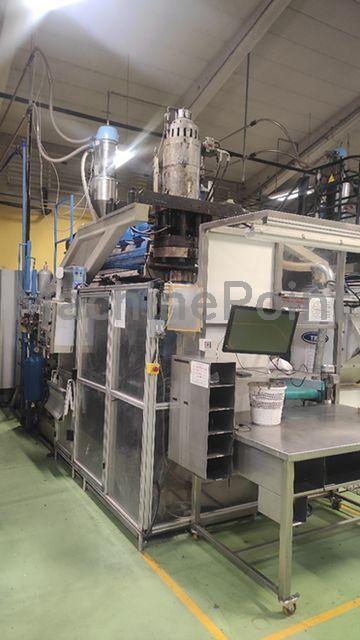

Used UNILOY Uniloy Moretti M-10 L/722 of 1991 for sale

Leak tester

Extrusion blow moulding machine UNILOY BWF 16 E - 2004: 1 Station for (current) 10L jerrycan EXTRUDER: screw diameter: 90mm L/D: 24 Speed: 76 rpm Brushless drivers: AC with inverter or DC Screw rating: 70 kW Output capacity: 220 kg/h (PE) Cushioned dry cycle: 2,4 sec. Max. Working cycles/hr per side: 600 Performance rating, oil pump motor: 22 kW Hydr. Operating pressure: 120bar Max. Hydr. High pressure 170-210 bar Operating pressure pneumatic: 8-10bar Pressure air requirement approx.: 2.500 Nl/min Hydraulic tank cooling: 55.670 kJ/h Blow mould: BW F16E: Max. mould length with adapter plates E: 520mm Max. mould length without adapter plates E: 435mm Max. mould width: 500/520 mm Min daylight between closed platens: 310mm Max. mold daylight (opening stroke): 320mm Max. daylight between opened platens: 640mm Clamping forces: 160/200* kN Horizontal shuttle stroke: 520/540*mm In 2019 the system was completely overhauled, new Beckhoff control system etc. pp. Only 5500 h run since then. Included is a quality centre for weight, tightness and neck as well as a packing table for up to 60 canisters.

Clamping force 10 ton Max. mould dimensions 380*490 mm Mould thickness (max/min) 262/258 mm Opening stroke 390 mm

COEX 3 layers EBM machine Material type PE Blown container size (Liters) 1 Container size (max) 4 Number of head 2 Center distance (mm) 120 Number of stations 2 Mould platen sizes (mm) 300x400 Opening stroke (mm) 190 Clamping force (KN) 70 Output capacity (Kg/h) 85 ÷ 125 No. Of extruders 2 1x Screw diameter(mm) 60 L/D: 24 1x Screw diameter (mm) 50 Wall thickness control YES Deflashing unit YES Installed power (kW) 123 Average consumption(kW) 80 Machine dimensions (LxWxH) 6500x3700x3800 mm

Mould platen sizes (mm) 300x360 Opening stroke (mm) 400 Deflashing YES
