Machine Sold

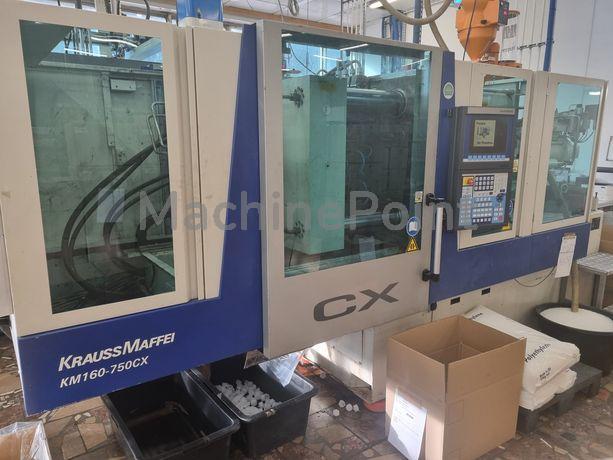

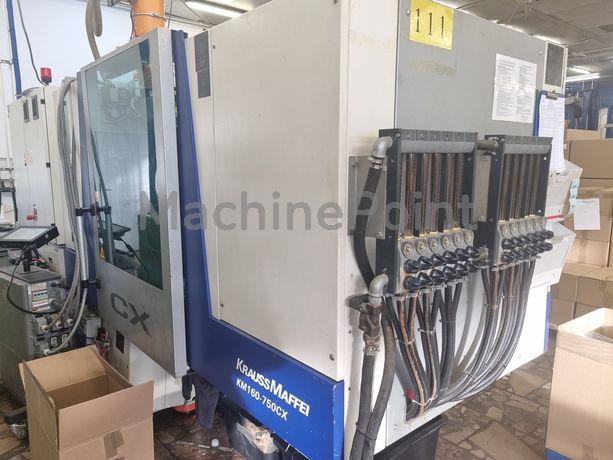

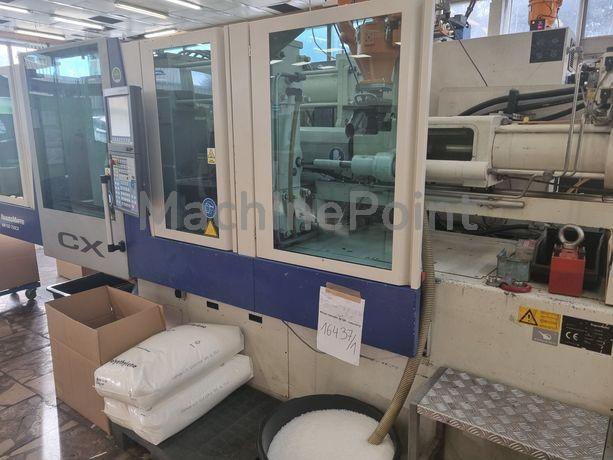

Used Injection molding machine up to 250 T : KRAUSS MAFFEI KM 160/750/CX of 2007


Haven’t found the machine you need?

Be the first to know.
We’ll notify you as soon as a machine with these specifications becomes available. In the second-hand market, the best deals go fast.
Subscribe

Similar Products:

 Injection molding machine up to 250 T  - KRAUSS MAFFEI - KM 160/750/CX

Data Sheet of Used KRAUSS MAFFEI KM 160/750/CX

Ref.: 300048154

Brand: KRAUSS MAFFEI

Year: 2007


  • Clamping Force: 160 ton
  • Shot Weight (Max): 357.6 g
  • Distance Between Tie-Bars (H): 520 mm
  • Distance Between Tie-Bars (V): 520 mm
  • Platen Size (H): 820 mm
  • Platen Size (V): 845 mm
  • Tie-Bar Diameter: 120 mm
  • Mould Height (Min): 300 mm
  • Daylight Between Platens (Max): 950 mm
  • Opening Stroke (Max): 600 mm
  • Ejector Force: 3 ton
  • Ejector Stroke: 150 mm
  • Core Pulls: Yes
  • Number Of Core Pulls: 2
  • Dry Cycle (S): 2.3 s
  • Screw L/D Ratio: 50
  • Injection Volume: 392 cm³
  • Injection Pressure: 1892 bar
  • Injection Rate: 177 cm³/s
  • Heating Zones: 8
  • Heating Capacity: 15.6 kW
  • Oil Tank Capacity: 489 l
  • Orientation: Horizontal

Other Specifications:

Used Materials : PE/PP
CE Certified: YES
Machine Manuals : YES
Handling : NO
Number of core pulls : 2 hydraulic/2 compressed air

Machines sold in the past:


Tool size min (HxV): 700 x 700 mm 2 fixed core pulls, 1 mobile 6-axis robot included
Available February 2025
Working hours: 39348 (March 2024)
Working hours: 62 609 (March 2024)
Used Krauss Maffei injection molding machine for preforms Year: 2006 Hours: 74.000 Includes: Piovan dryer and silo Dehumidifier Robot Hot runner 24 cav Cold Half: 2 sets of cold half plates Spare parts available Available immediately!
