Used ELF MACHINERY CG 6 for sale
PET Filler for W&SD ELF MACHINERY, The team at MachinePoint will accompany you through the whole process of buying the machine.
Data Sheet of Used ELF MACHINERY CG 6
Ref.: 300048158

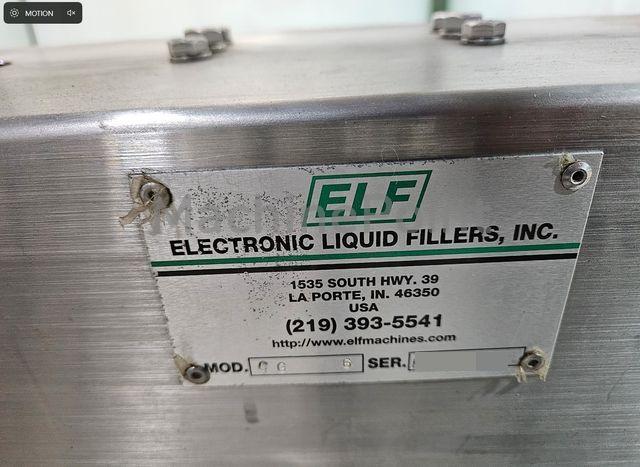

Brand: ELF MACHINERY
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Output: 4800 U/h
- Volume: 5 l
Other Specifications:

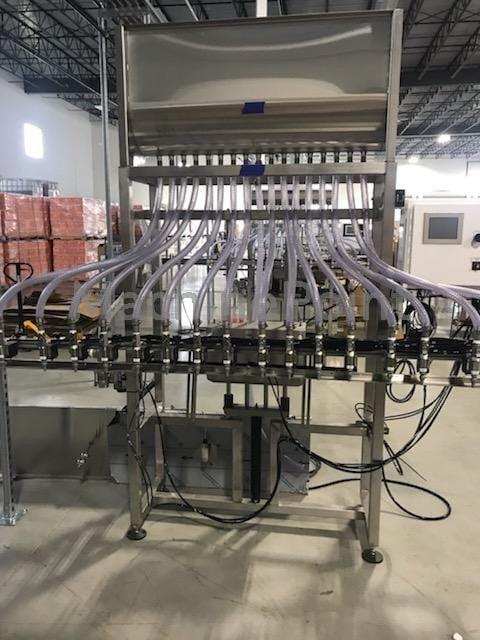

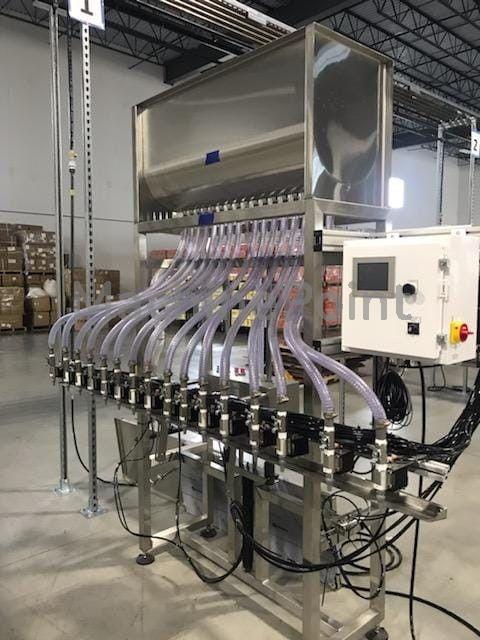

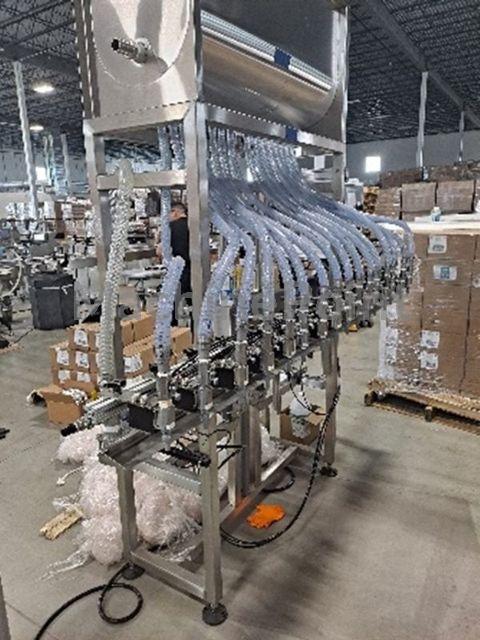

16 valve inline filler
64-80 BPM
304 stainless steel heavy-duty frame construction with adjustable leveling pads
-316 stainless steel 3/4″ pneumatically actuated fill head assemblies
-Wire reinforced PVC product tubing with stainless steel hose barbs
-35-gallon, 304 stainless steel trough-style product reservoir (16-port product tank with 1.5” inlet) with 316 stainless steel level-sensing dual ball float for safety back-up
-Manually controlled ball valves for throttling product flow at fill heads
-Low head pressure/no fill system controls
-(1) 3/4 ” stainless steel product supply control valves
-Automatic drip tray protects bottles from potential drips
-Automatic pin-style indexing to bring bottles in and out of fill station
-No Bottle/No Fill sensor to ensure proper bottle count prior to filling
-Anti-bottle back-up sensor to pause filling cycle if downstream jam is detected
-Manual crank height adjustment for fill heads
-Supply pump and motor starter not included
-NEMA 12, painted steel enclosure
-Requires clean, dried air at 80-100 psi
-120/240 VAC / 1 phase / 50-60Hz
This machine has been upfitted with new PLC and control panel
Other Details:
Guarantee: Without guarantee
Current condition: Disconnected. Can't be seen in running condition
Availability: Immediate
