Used UNILOY UMS-500D Coex-3 of 2011 for sale
Extrusion Blow Moulding machines from 10 L UNILOY, MachinePoint offers their clients all the services necessary to buy the machine: Transport, dismantling, and legal consultancy.
Data Sheet of Used UNILOY UMS-500D Coex-3
Ref.: 300048220
Year: 2011
Brand: UNILOY
Delivery time: Immediate
Ask for machine price Want to sell your machine?
Technical Specifications:
- Container Size With Actual Configuration: 5 l
- Number Of Heads: 3
- Material Type: PE
- Number Of Stations: 2
- Extruder Type: Continuous
- Number Of Extruders: 4
- Center Distance: 160 mm
Other Specifications:

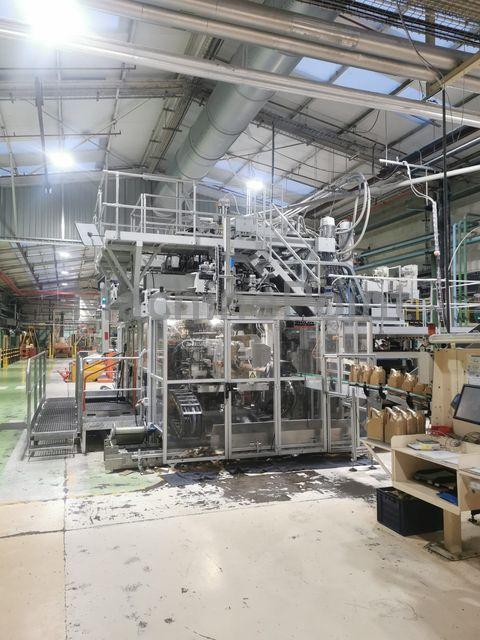

Complete line with Coex Blow Molding machine for 5 liter jerrycans with view stripe

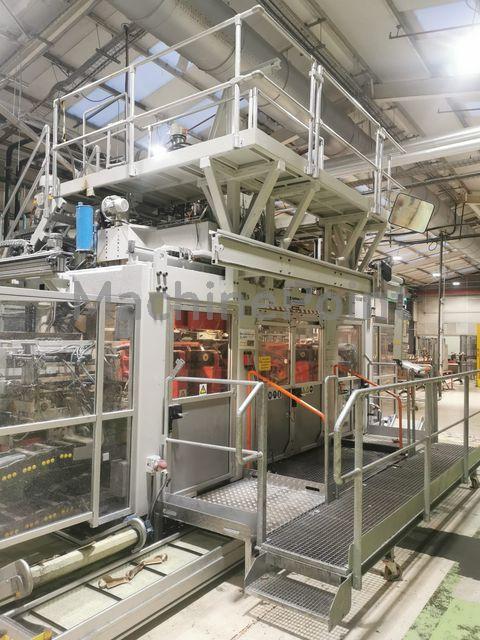

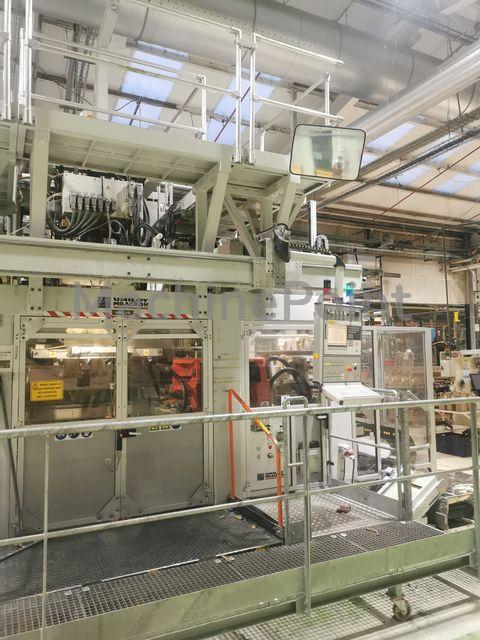

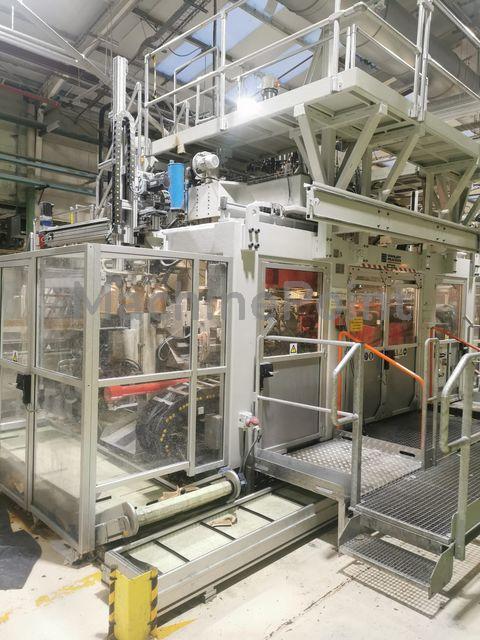

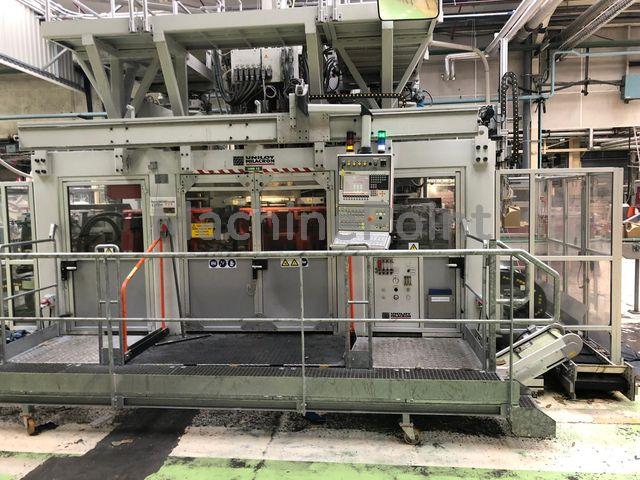

EBM Uniloy UMS 500D Coex-3

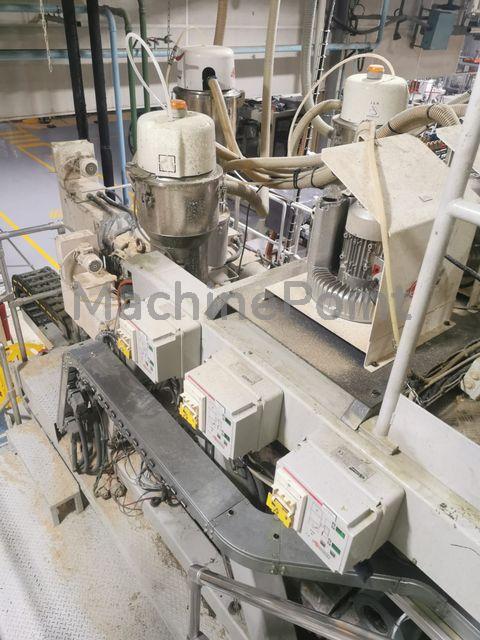

Extruder 1: 100-24D
Extruder 2: 70-24D
Extruder 3: 70-24D
Extruder 4: 30-25D for view stripe
Die-head 3 parison : Müller S3/160-270 P-PE TK3K
Center distance 160 mm
Die diameter max 270 mm
Clamping force 500 kN
Mould max dimensions: 1250 x 600 mm
Mould thickness: 2 x 180 mm
Opening stroke (min/max): 360/800 mm
Carriage stroke: 1350 mm
Automatic deflashing and extraction
INCLUDED:

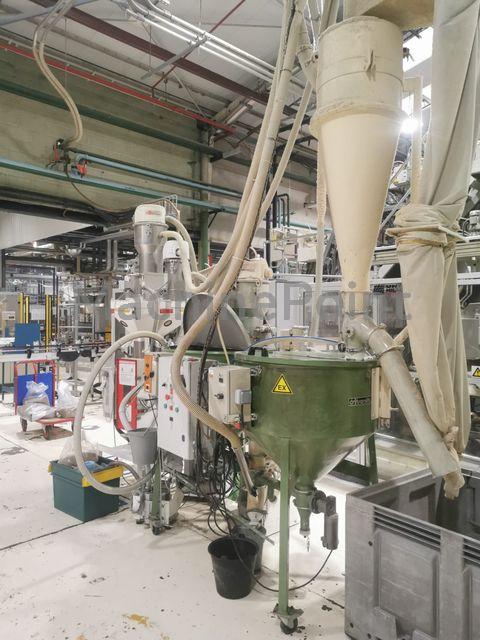

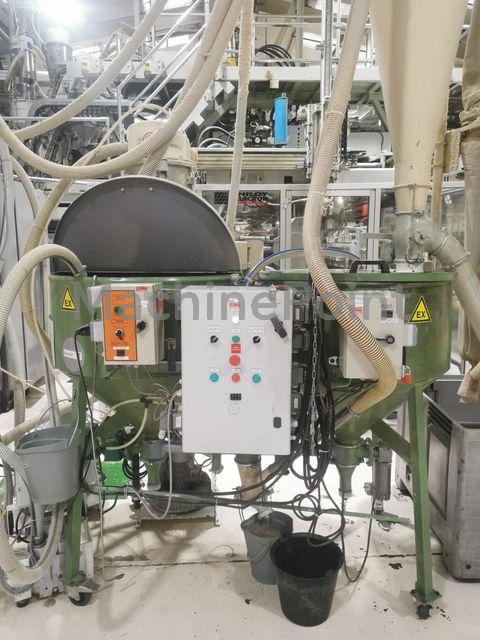

Volumetric dosing unit with aspiration

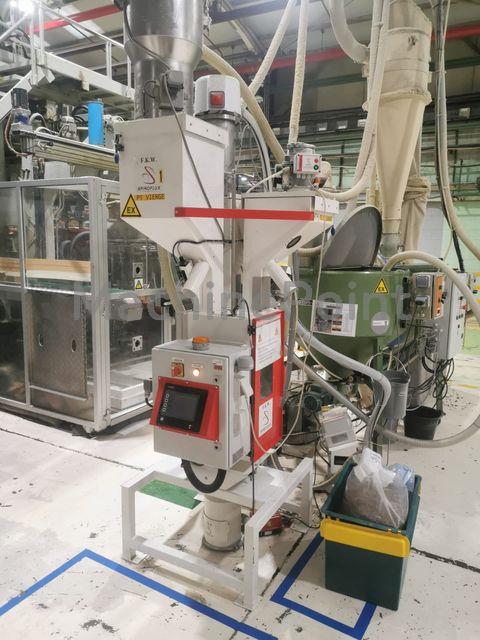

Gravimetric feeder Spiroflux DPX 06/31 (year 2023)

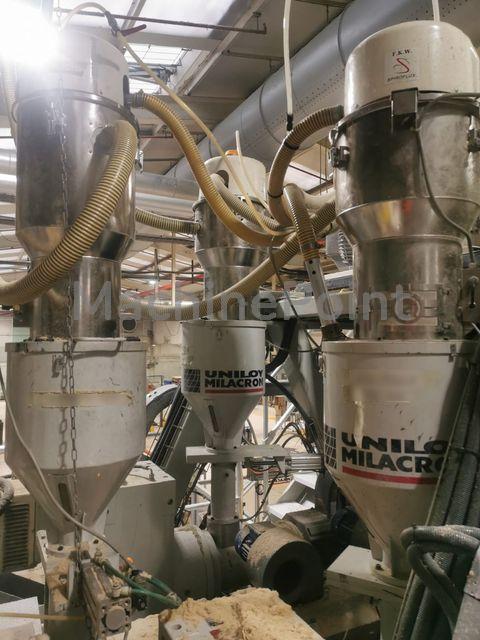

Hoppers with Spiroflux aspiration

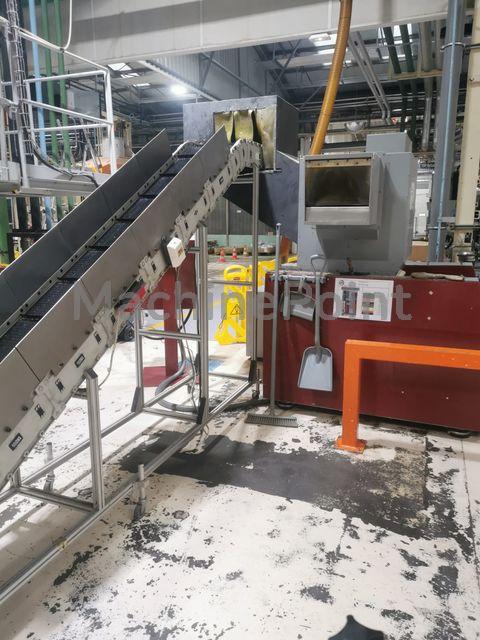

Flash conveyors FARPI (year 2021) with metal detector

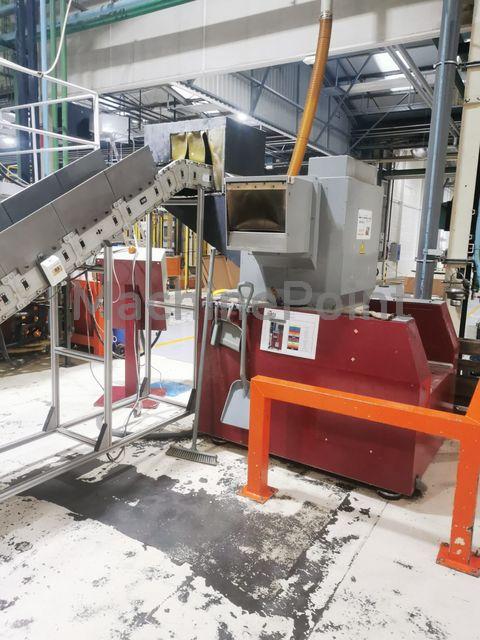

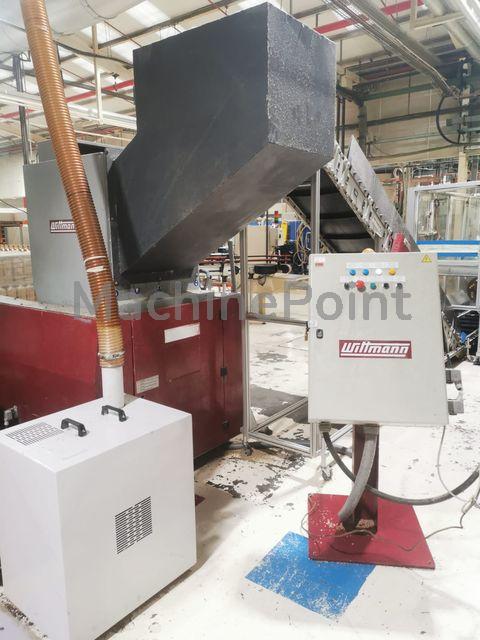

Wittmann grinder MC 4660 (2008)

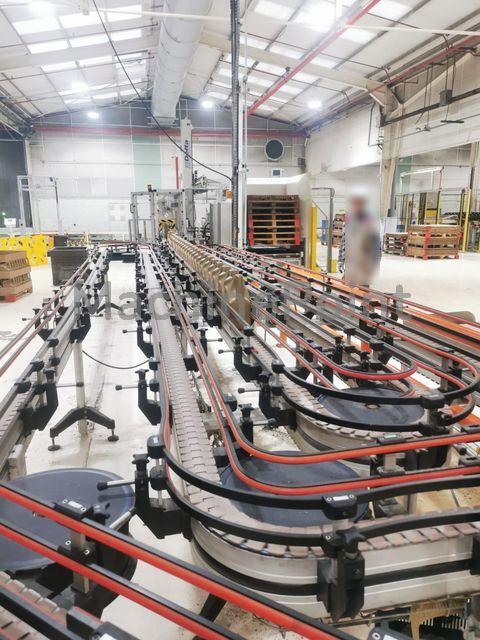

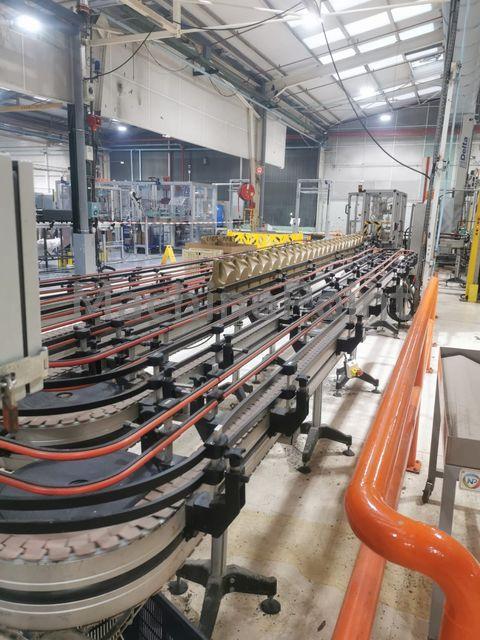

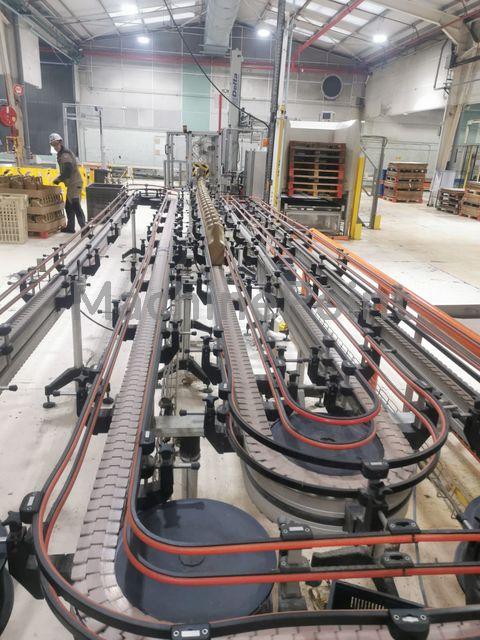

Exit conveyor Faber, 40 m

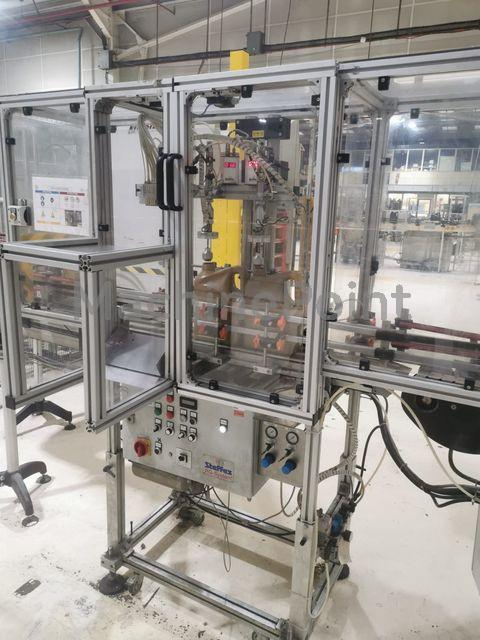

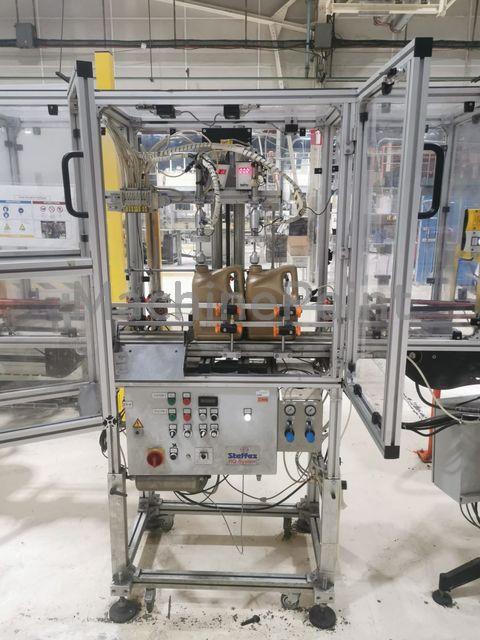

Leak tester Steffes S-P10-2 (2011)

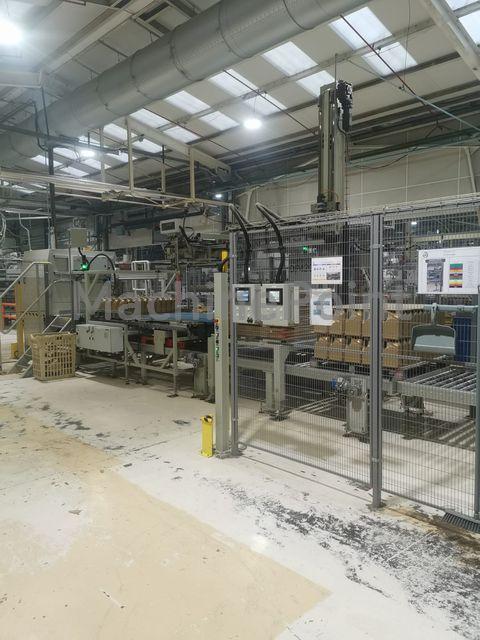

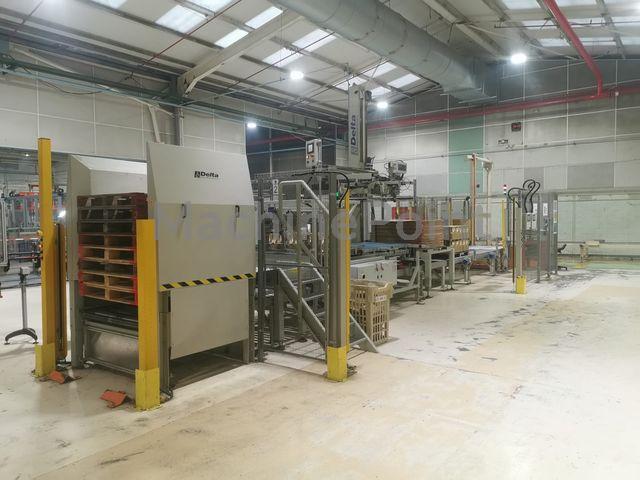

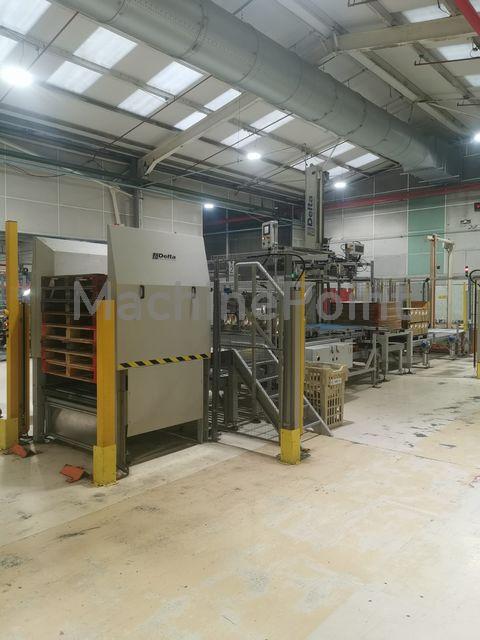

Delta Palletizer DP-420 (year 2017)
Other Details:
Guarantee: Without guarantee
Current condition: In Production
Availability: Immediate
Voltage: 400 V Triphase
Frequency: 50 Hz
Voltage: 431 Kw
